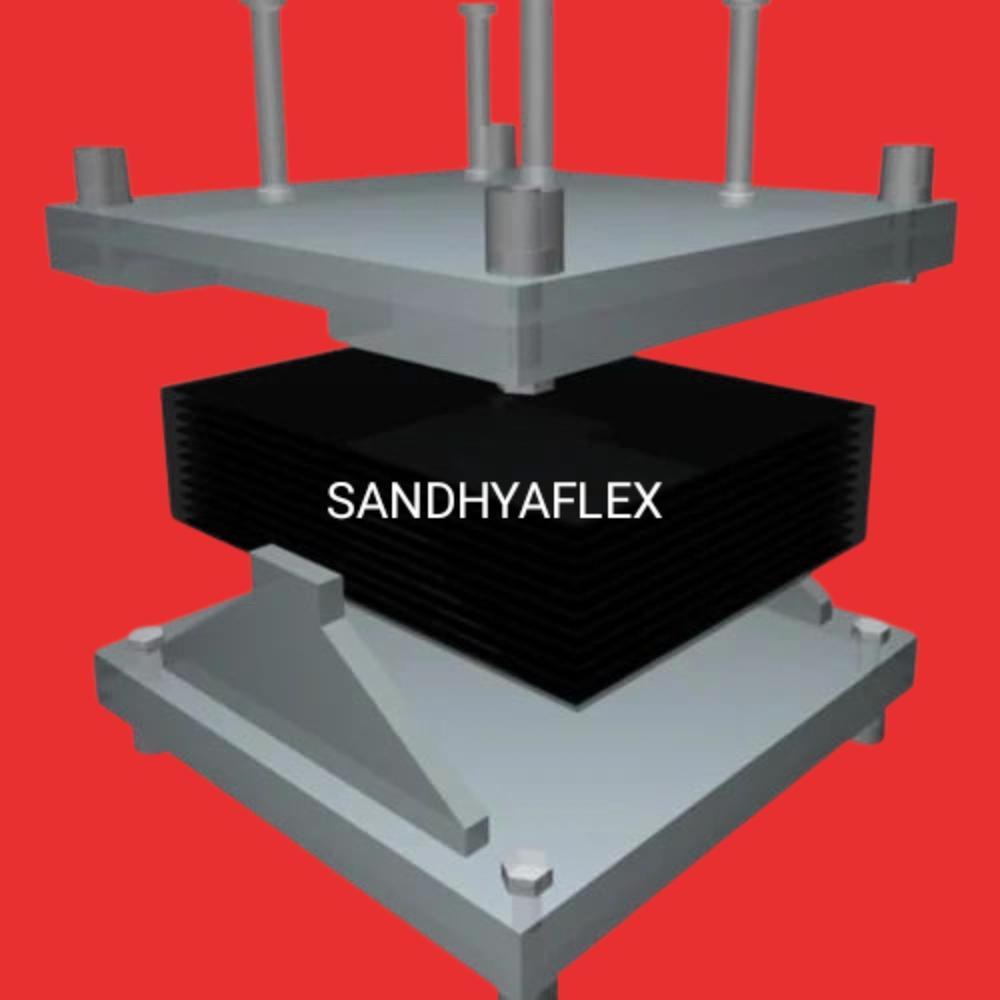

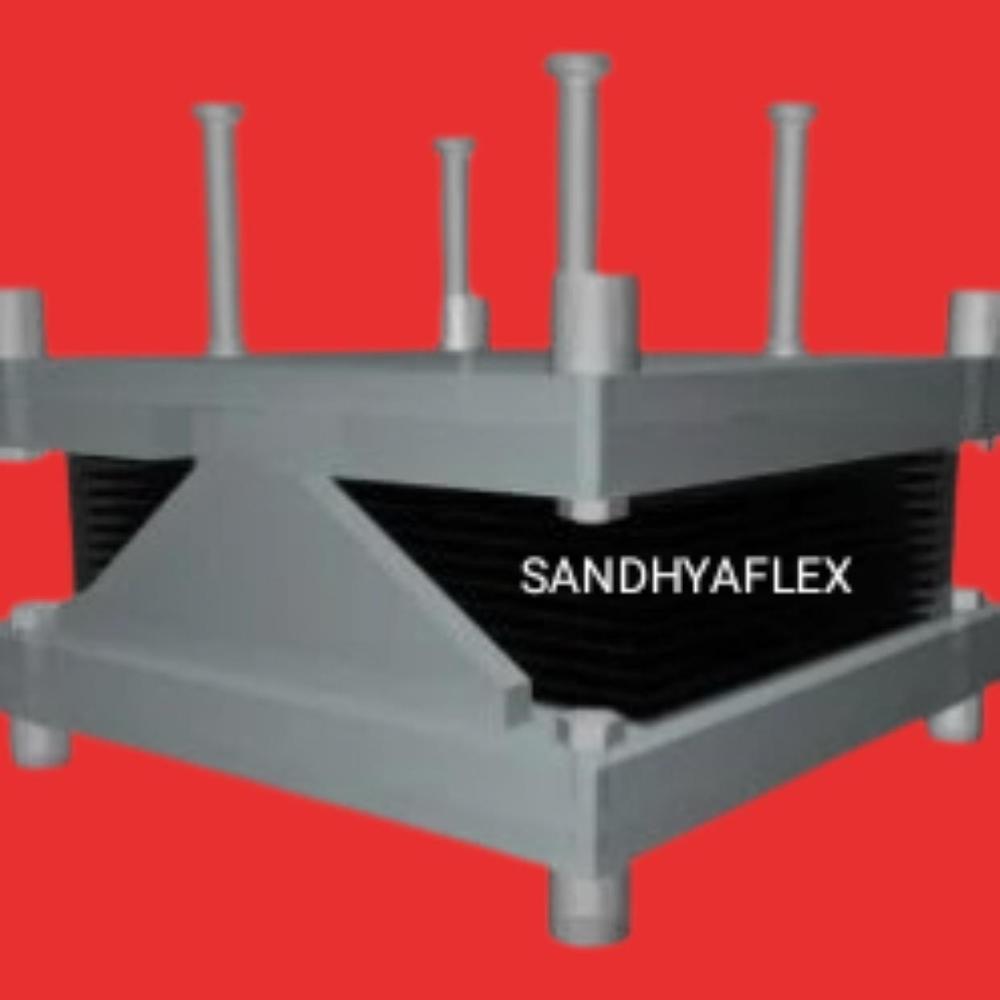

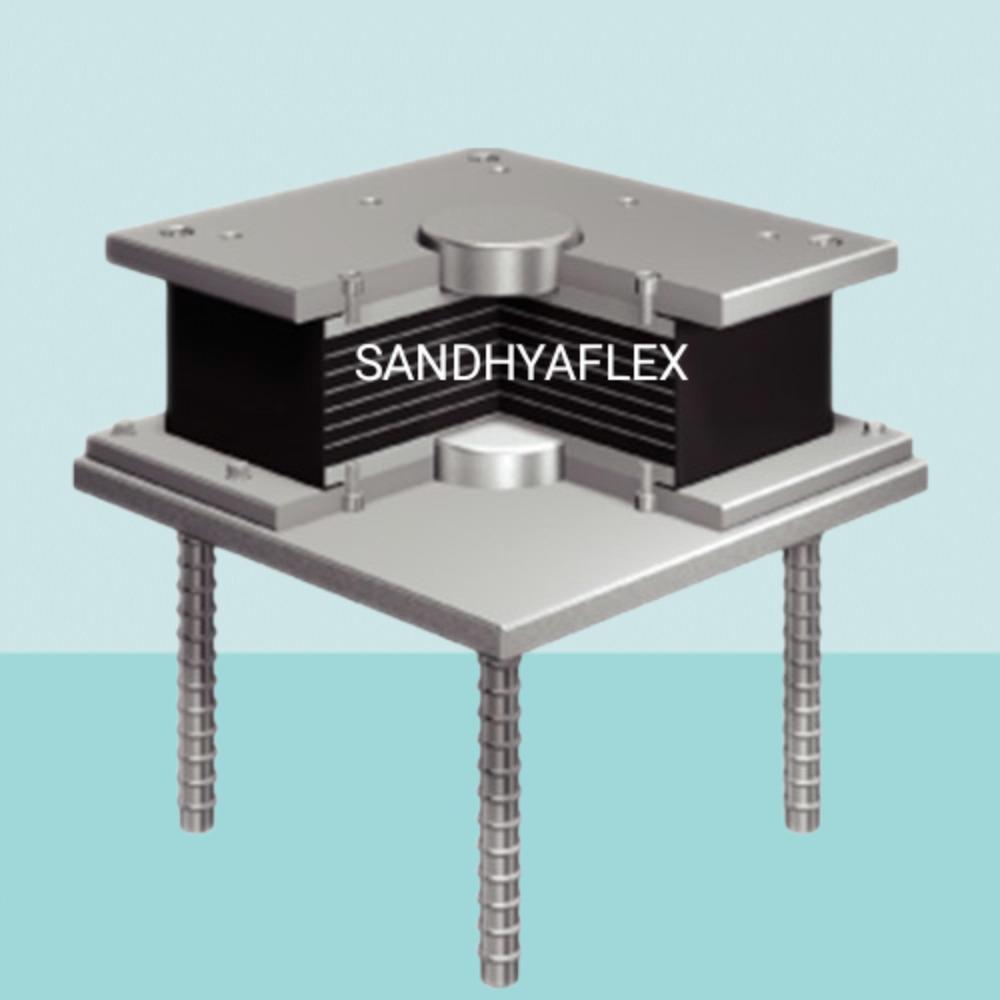

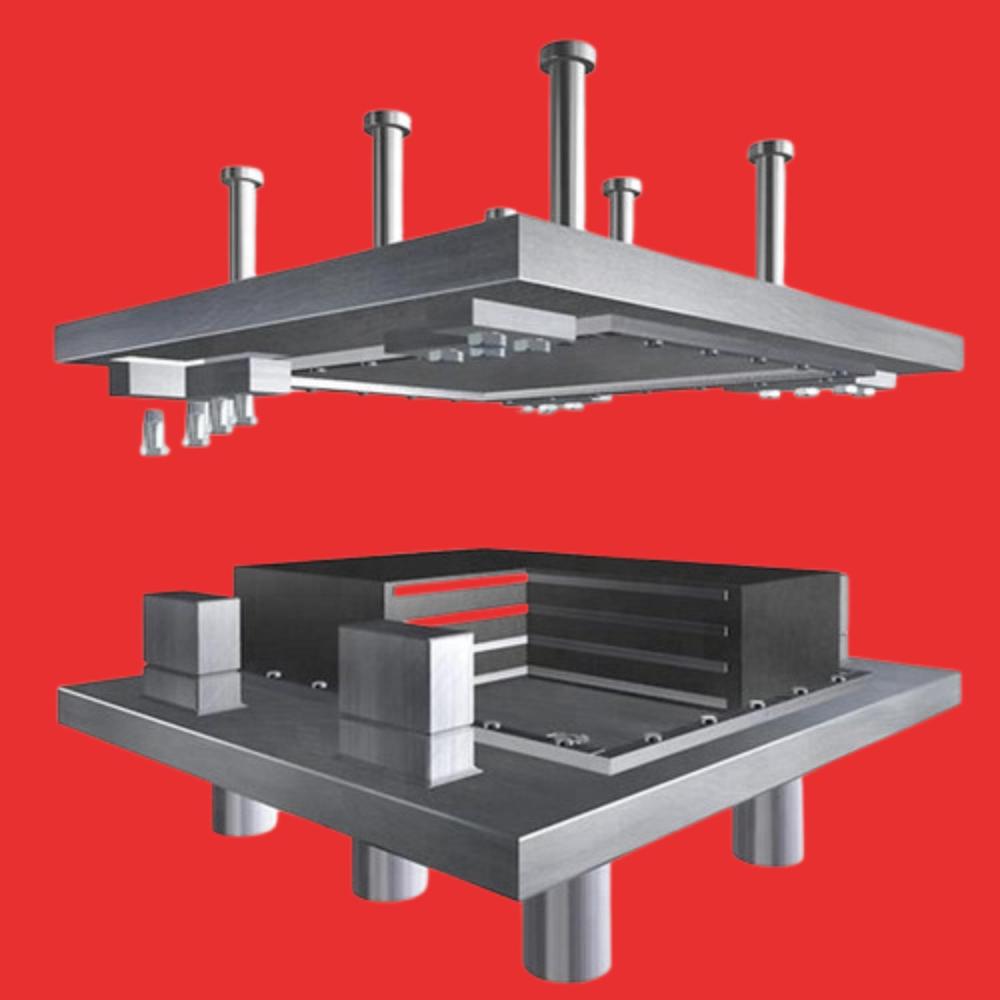

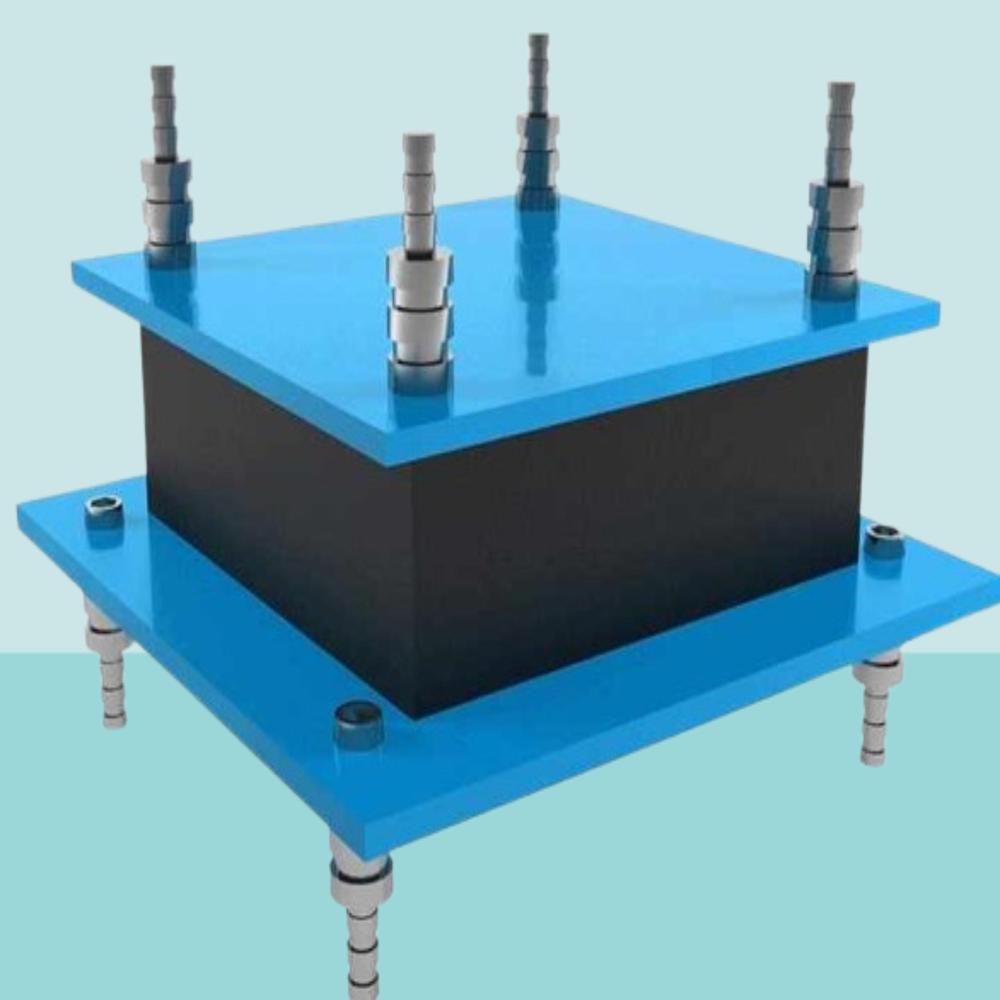

Ealstomeric Bride Bearing with Top and Bottom Steel Plate

Name: Ealstomeric Bride Bearing with Top and Bottom Steel Plate
Brand: SANDHYA ENTERPRISES
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Ealstomeric Bride Bearing with Top and Bottom Steel Plate Specification

Precision Rating
Complies with IRC:83 (Part II), IS:3400

Thickness
20 mm to 100 mm standard or per design

Lubrication Type
Self-lubricated (no additional lubrication required)

Inside Diameter
N/A (rectangular or square section)

Retainer
Integrated steel plates for dimensional stability

Bearing Type
Elastomeric Bridge Bearing with Top & Bottom Steel Plate

Material
Natural Rubber/Neoprene with Mild Steel Plates

Structure
Laminated Elastomeric Pad with Embedded Steel Plates

Seals Type
No external seals, monolithic construction

Number Of Rows
Single

Bore Size
N/A (Non-cylindrical product)

Outside Diameter
Custom as per drawing/specs

Limiting Speed
Static structural bearing (Non-rotating)

Load Capacity
Up to 1000 kN or customized

Shear Capacity
As per design and specification

Shape
Rectangular, Square, or Circular as per bridge requirements

Service Life
Up to 30 years

Steel Plate Thickness
3 mm to 8 mm (top/bottom/intermediate)

Displacement Capacity
Accommodates thermal movement and rotational deflection

Color
Black (rubber), Silver/Grey (steel)

Application
Bridge support, viaducts, flyovers, and seismic isolation

Compliance Standards
IRC:83 (Part II), IS:3400, AASHTO M251

Temperature Range
-40°C to +70°C

Surface Finish
Grooved or plain as required

About Ealstomeric Bride Bearing with Top and Bottom Steel Plate

Discover our rare, exclusive Elastomeric Bridge Bearings-engineered with first-string precision and transcendent reliability. Each bearing features crackerjack construction with top and bottom embedded steel plates, available in rectangular, square, or circular shapes to suit bridge specifications. Reduced maintenance is ensured by self-lubrication and monolithic design. With steel plate thickness from 3 to 8 mm and load capacity up to 1000 kN, these bearings accommodate thermal and rotational movements, providing optimal support for bridges, viaducts, flyovers, and seismic isolation. Certified to IRC:83, IS:3400, and AASHTO M251 standards.

Application Areas & Usage

Elastomeric Bridge Bearings with Top and Bottom Steel Plates are designed for a wide spectrum of demanding applications, including bridges, viaducts, flyovers, and seismic isolation projects. These bearings provide structural support by accommodating thermal expansion, rotational deflection, and heavy loads. Their adaptability to custom shapes-rectangular, square, or circular-ensures tailored solutions for diverse bridge requirements and architectural specifications, promising dependable performance in both urban and rural infrastructural scenarios.

Payment Terms, Certifications & Export Market

Sale price for our Elastomeric Bridge Bearings is determined by order size and customization. Order completion, shipment scheduling, and payment terms align with client requirements and international standards. The bearings carry certifying marks: IRC:83 (Part II), IS:3400, and AASHTO M251. Our primary export markets include India and neighboring regions. Prompt shipment and seamless order completion ensure timely delivery, helping clients maintain project momentum with recognized, certified products.

FAQ's of Ealstomeric Bride Bearing with Top and Bottom Steel Plate:

Q: How do Elastomeric Bridge Bearings enhance structural support in bridges and viaducts?

A: These bearings absorb thermal movement and rotational deflections, which helps minimize stress on bridge structures while supporting dynamic and static loads. Their ability to accommodate these changes ensures long-term durability and safety in critical infrastructure.

Q: What shapes and sizes can be customized for specific bridge projects?

A: We offer elastomeric bearings in rectangular, square, or circular shapes, with thickness ranging from 20 mm to 100 mm. Outside diameter and all steel plate configurations can be tailored as per project drawings and specifications.

Q: Where are these Elastomeric Bridge Bearings commonly used?

A: They are widely installed in road bridges, railway bridges, flyovers, viaducts, and for seismic isolation, making them ideal for urban and rural infrastructure developments requiring robust load distribution and movement accommodation.

Q: What certifications guarantee the quality and compliance of these products?

A: Every bearing complies with national and international standards, including IRC:83 (Part II), IS:3400, and AASHTO M251, ensuring high quality, safety, and reliability for diverse global markets.

Q: How does the order completion and shipment process work for overseas clients?

A: Once your order is confirmed and specifications are finalized, the bearings undergo fabrication and testing. Quick shipment follows upon order completion, with secure packaging and documentation in line with buyer and export regulations.

Q: What are the main benefits of choosing monolithic elastomeric bearings with steel plates?

A: These bearings offer a rare combination of superior load capacity, reduced maintenance due to self-lubrication, and transcendent resilience against environmental extremes, promising enhanced service life and dimensional stability for up to 30 years.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Elastomeric Bridge Bearing Category

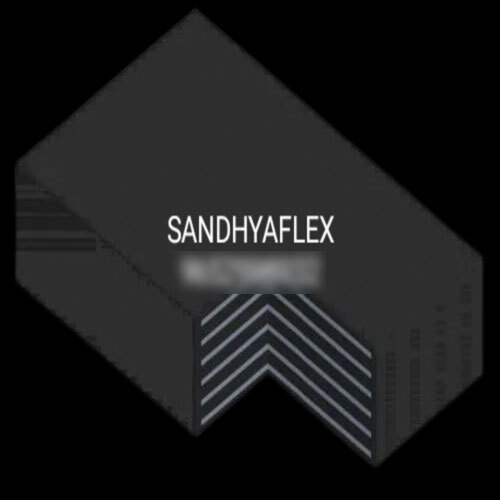

Heavy Duty Elastomeric Bridge Bearing
