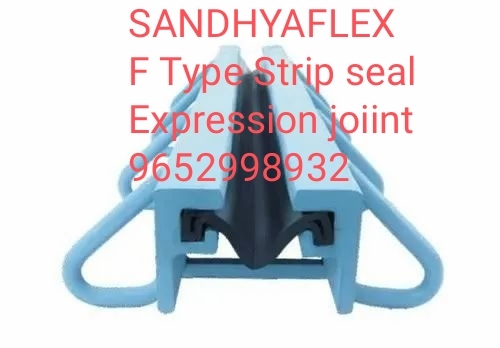

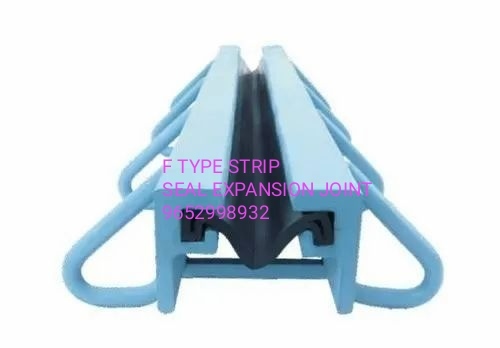

F Type Strip Seal Expansion Joint

Price 2800 INR/ Meter

Get a Price/Quote

MOQ : 100 Meters

F Type Strip Seal Expansion Joint Specification

Surface Treatment
Painted

Flange
F Type

Head Code
Square

Material
Iron

Usage
Bridge Construction

Size
Depth 80 mm

Connecting Type
Welding

Product Type
Strip Seal Expansion Joint

Color
Grey

F Type Strip Seal Expansion Joint Trade Information

Minimum Order Quantity
100 Meters

Payment Terms
Cash in Advance (CID)

Supply Ability
2000 Meters Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Loos

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO 9001 2015

About F Type Strip Seal Expansion Joint

Ouroffered F Type Strip Seal Expansion Joint is suitable for variabledeformations along the bridge structure. It is high acclaimed in the market forits attributes such as robustness, high strength, flawless finish and lightweight. It is manufactured using supreme grade quality components that issourced from reliable vendors of the market keeping in mind set industry norms.Furthermore, we made this F Type Strip Seal Expansion Joint available in various sizes and specifications at industrial leadingprice.

andhya Enterprises manufacture and Supplier 0f Strip Seal Expansion Joint as per RDSO

1 M Type

2. W Type

3. F Tyoe

4 T Type

Bridge Expansion Joint Gap 40.0mm (Movement up to 80mm). Bridge Expansion Joint consist of two edge beams with anchorages and with Neoprene sealing element held firmly in the housing of edge beams that guarantee the water tightness the joint. The maximum gap between the edge beams at the road surface when the joint fully opens due to maximum contractions of the deck shall be limited to 80mm for comfortable passage of traffic. The edge beams protects the adjacent bridge deck concrete from damage due to vehicular impact and also transfer the vehicular loads to the deck structures through robust anchorage system. Typical Bridge Expansion Joint is shown in the figure below.

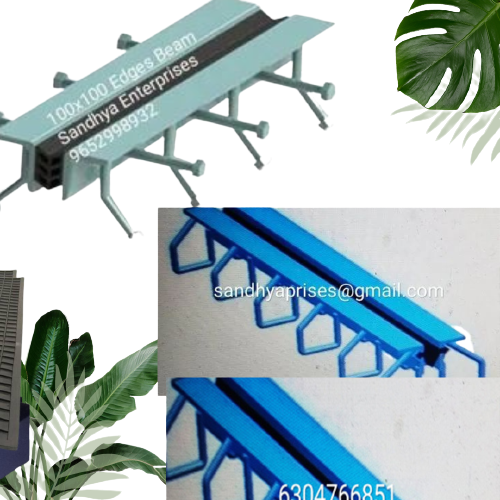

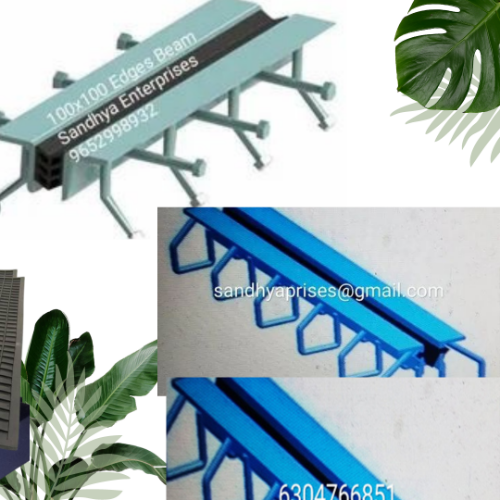

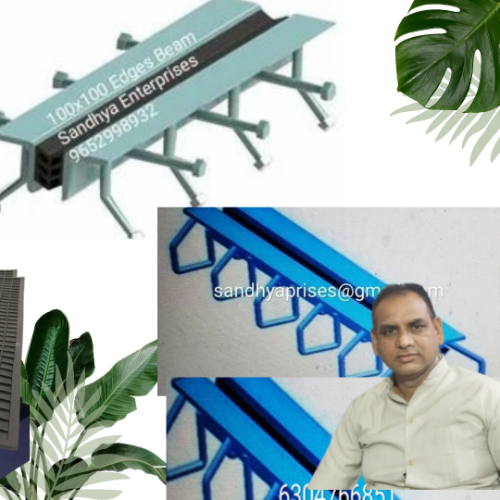

Bridge Expansion Joint

Rs : / R.Mtr

GST:18% Extra

Packing and Forwording Extra

Technical Details

Technical Details

High-Quality Welded Solution

Constructed from robust iron, the F Type Strip Seal Expansion Joint features a welded connection for secure and enduring applications in bridge construction. Its surface is painted for extra protection against corrosion, ensuring performance in diverse environments.

Optimized Design for Bridges

This joint comes with a depth of 80 mm and an F-type flange, making it suitable for modern bridge-building requirements. The square head code and precision fabrication guarantee compatibility and ease of installation.

Wide Availability in India

Distributed through a comprehensive network that includes dealers, fabricators, manufacturers, and wholesalers, this expansion joint is easily accessible to infrastructure projects throughout India.

FAQ's of F Type Strip Seal Expansion Joint:

Q: How is the F Type Strip Seal Expansion Joint installed in bridge construction?

A: The joint is installed with a welding connection to ensure a strong and seamless fit within the bridge structure, accommodating movement and load changes effectively.

Q: What is the main purpose of using an F Type Strip Seal Expansion Joint on bridges?

A: Its purpose is to absorb and compensate for expansion, contraction, and vibrations in bridges, thus reducing stress on structural elements and extending bridge lifespan.

Q: When should this expansion joint be used in a construction project?

A: It is used during the stage when structural movement needs to be managed, typically after the primary bridge decking is in place and before finishing works begin.

Q: Where can I purchase the F Type Strip Seal Expansion Joint in India?

A: These expansion joints are supplied by a vast network including dealers, fabricators, distributors, wholesalers, and retailers across India.

Q: What is the process for fabricating and treating the F Type Expansion Joint?

A: The joint is made from robust iron and formed to exact specifications with a square head. The F-type flange enhances its performance, with a painted finish applied to increase resistance against corrosion.

Q: What are the benefits of the F type flange and welded connection in this product?

A: The F-type flange improves sealing and strength, while a welded connection assures reliability and stability under heavy traffic and environmental conditions.

Q: How does the iron material and painted surface treatment contribute to the joint's durability?

A: Iron provides solid structural strength, and the painted finish protects against rust and degradation, making these joints suitable for long-term bridge use.
