Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow
Rubber Expansion Joint Bellow

Rubber Expansion Joint Bellow

Rubber Expansion Joint Bellow Specification

  • Shape
  • Cylindrical with bellow convolution
  • Medium
  • Water, oils, chemicals, mild acids, air
  • Connection Type
  • Flanged or threaded
  • Reinforcement
  • Nylon or steel wire
  • Hardness
  • 60-70 Shore A
  • Cover
  • EPDM or Neoprene rubber outer layer
  • Material
  • High-grade synthetic rubber
  • Temperature
  • -20°C to +120°C
  • Pressure
  • Up to 16 bar
  • Inside Diameter
  • 50 mm to 1200 mm
  • Outside Diameter
  • Varies as per size and type
  • Length
  • Depends upon diameter and type, typically 150 mm to 350 mm
  • Burst Pressure
  • Up to 48 bar
  • Surface Finish
  • Smooth
  • Movement Capability
  • Axial, lateral, and angular movement
  • Density
  • Approximately 1.20 g/cm³
  • Color
  • Black
  • Number of Bellows
  • Single or double bellow available
  • End Flange Material
  • Carbon steel, stainless steel (as required)
  • Installation Type
  • Horizontal or vertical
  • Corrosion Resistance
  • Good resistance against corrosion
  • Application
  • HVAC, pump connections, pipelines, industrial systems
  • Vibration Damping
  • Excellent damping characteristics

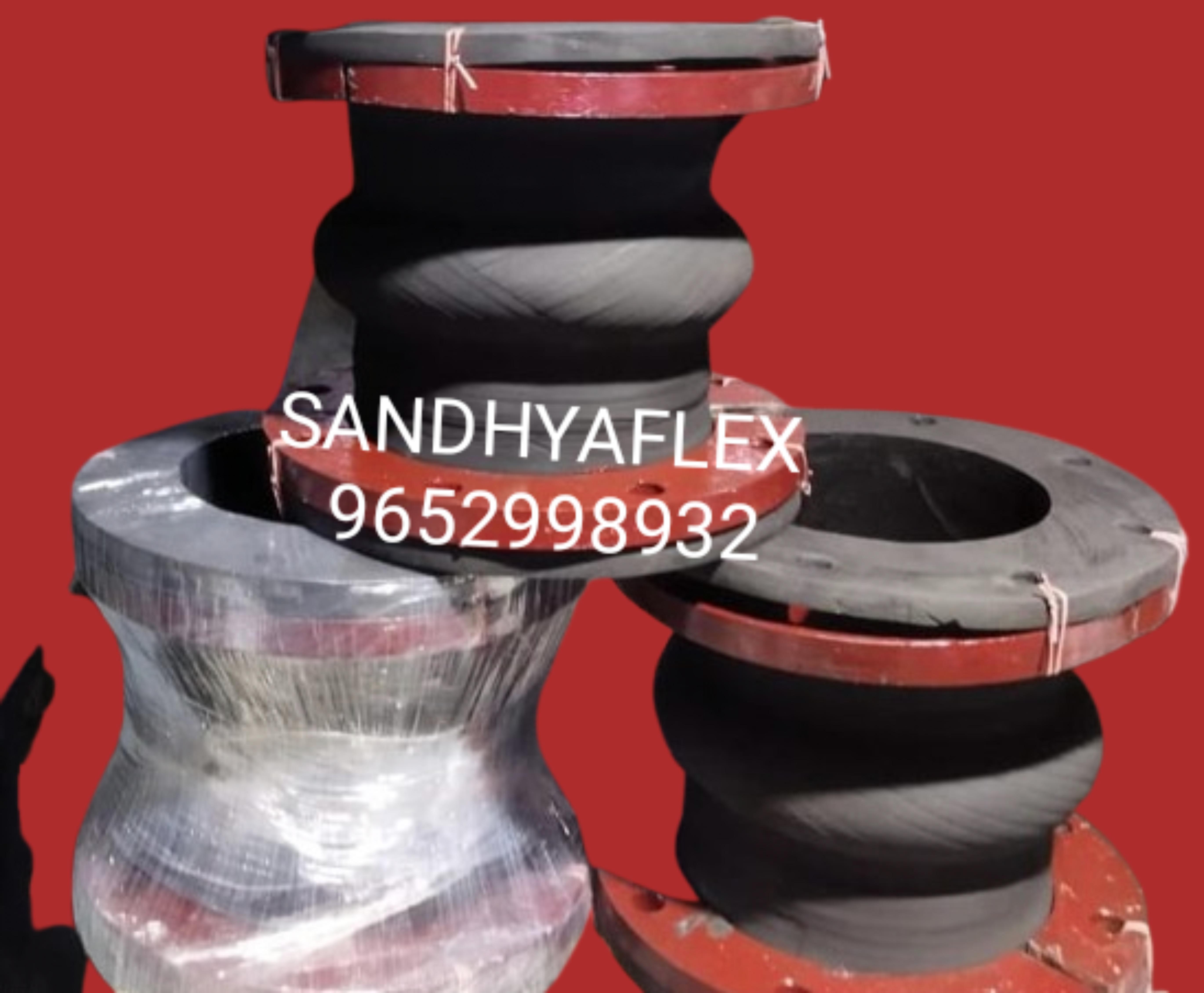

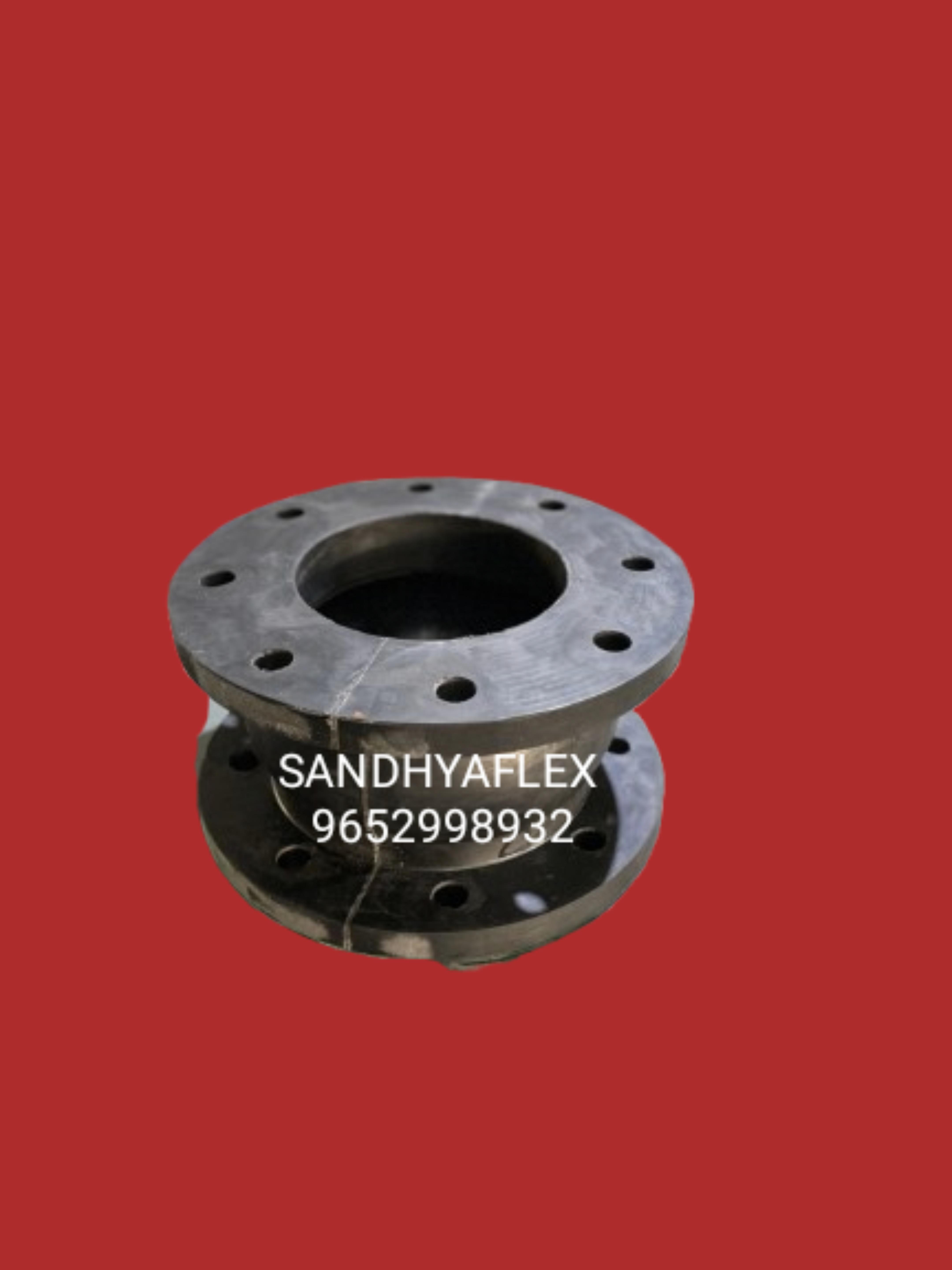

About Rubber Expansion Joint Bellow



Get It Now! The all-new Rubber Expansion Joint Bellow is your solution for exceptional durability and flexibility. Choose from single or double bellows, featuring unbeatable movement capability-axial, lateral, or angular. Designed for both horizontal and vertical installation, this potent expansion joint offers terrific vibration damping and unprecedented resistance to corrosion. Flanges are available in carbon or stainless steel, with smooth surface finishes. Bridging temperatures from -20C to +120C, withstanding up to 16 bar pressure and 48 bar burst pressure. Perfect for HVAC, pumps, industrial pipelines, and more across India-at an Unbeatable Price!

Versatile Usage & Outstanding Applications

Rubber Expansion Joint Bellows are used extensively as vibration dampers and flexible connectors in HVAC systems, pump connections, pipelines, and industrial systems. Made from high-grade synthetic rubber reinforced with steel or nylon wire, these bellows guarantee resilience against water, oils, mild acids, and chemicals. They boast excellent corrosion resistance and are available in both single and double convolution designs, suitable for flanged or threaded connections, making them a must-have for any fabricator, supplier, or manufacturer.


Efficient Trading, Ordering, and Delivery Process

Rubber Expansion Joint Bellows are widely traded and supplied across India's main domestic markets. Samples can be exchanged prior to order completion to ensure quality and fit. You can request a prompt quotation, and once the order is finalized, efficient delivery is arranged via the designated FOB port. Trusted by dealers, retailers, producers, and wholesalers, the streamlined process ensures that these products reach you swiftly and in optimal condition.


FAQ's of Rubber Expansion Joint Bellow:


Q: How can I choose the right Rubber Expansion Joint Bellow for my application?

A: Select the type (single or double bellow), inside diameter, movement capability, and end flange material according to your system requirements, ensuring compatibility with your chosen medium and operational pressure or temperature.

Q: What are the primary benefits of installing a Rubber Expansion Joint Bellow?

A: These bellows provide excellent vibration damping, compensate for axial, lateral, and angular movements, and resist corrosion, ensuring prolonged system life and reduced maintenance.

Q: Where are Rubber Expansion Joint Bellows commonly used?

A: They are primarily used in HVAC units, pump connections, pipelines, and industrial systems for their flexibility and ability to absorb movement and vibration.

Q: What is the process to request samples and place orders?

A: You may request samples for evaluation prior to order completion, obtain a quotation, and proceed with ordering. Delivery is arranged efficiently via the designated FOB port.

Q: When should a fabricator consider using a double bellow over a single bellow?

A: Double bellows are recommended in systems that require greater movement absorption or are subject to higher levels of vibration and misalignment for enhanced performance.
