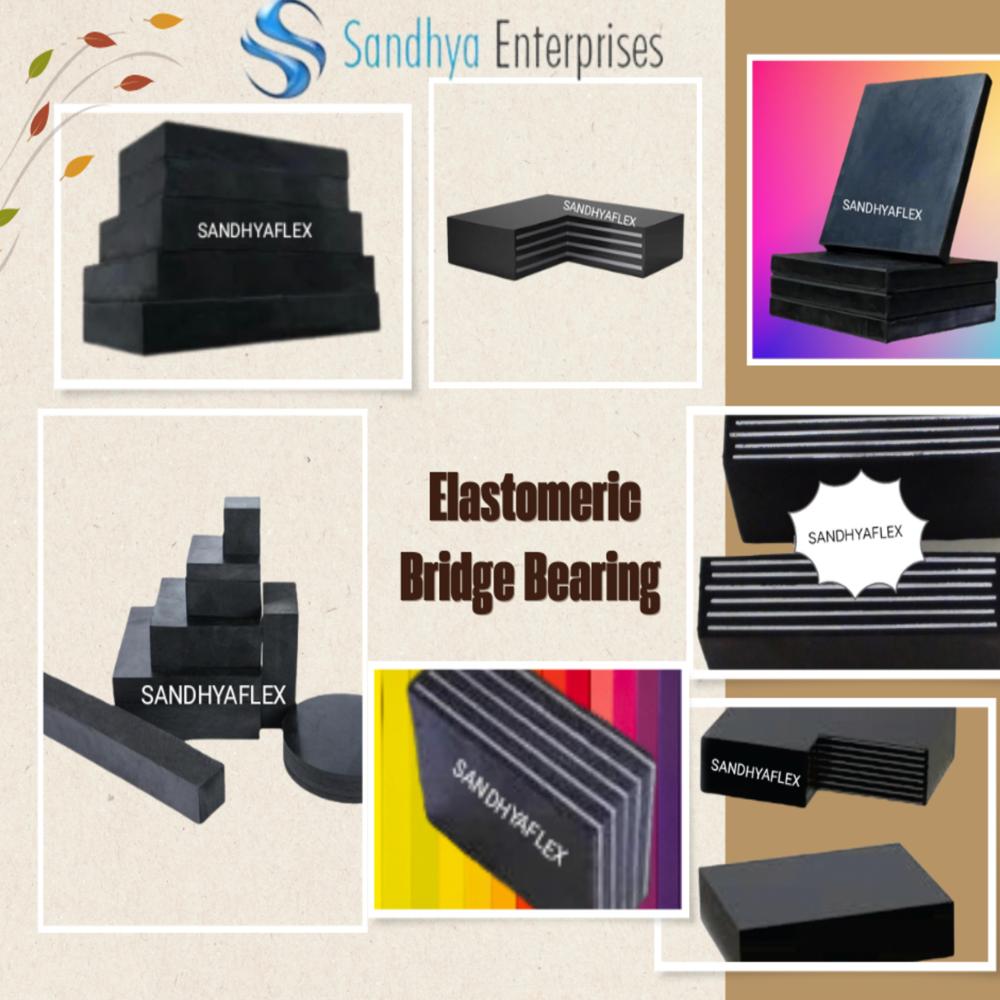

elastomeric bearings

Name: elastomeric bearings
Brand: SANDHYA ENTERPRISES
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

elastomeric bearings Specification

Precision Rating
Standard tolerance as per IS/IRC/AASHTO

Cage Material
N/A (no rolling elements)

Inside Diameter
Defined by project requirements

Thickness
12 mm to 100 mm or as specified

Lubrication Type
Maintenance-free, self-lubricating elastomer

Bearing Type
Elastomeric Bearing

Material
Premium Natural/Synthetic Rubber compounded with Steel Plates

Structure
Laminated Rubber with Steel Plates

Seals Type
No conventional seals, integrated elastomeric sealing

Number Of Rows
Single or Multi-layered

Bore Size
Customizable as per design

Outside Diameter
Available up to 1000 mm or more (custom sizes available)

Limiting Speed
Not applicable (static bearing)

Load Capacity
Between 60 kN to 3000 kN depending on application

Shear Modulus
0.9 MPa to 1.2 MPa

Color
Black (standard)

Fire Resistance
On request or as per project

Application Areas
Bridges, Flyovers, Buildings, Railway Structures

Hardness
60 ± 5 Shore A

Shape
Rectangular and Circular

Installation
Require only simple placement, no lubrication or greasing

Maintenance
Virtually maintenance free

Compression Set
Max 25% at specified load

Ozone Resistance
Yes, as per IS:3400

Temperature Resistance
-40°C to +70°C

Elongation at Break
Minimum 400%

Surface Treatment
Steel plates are treated with anti-corrosion coatings

Service Life
Designed for 20 to 50 years (subject to site conditions)

Conformity Standard
ASTM D4014, EN 1337-3, IRC:83 Part II, IS:3400

About elastomeric bearings

Introducing our latest range of elastomeric bearings-now available in both rectangular and circular shapes-engineered to rarefied standards including ASTM D4014, EN 1337-3, IRC:83 Part II, and IS:3400. Designed for optimum performance in bridges, buildings, flyovers, and railway structures, these bearings exhibit exceptional temperature resistance (-40C to +70C) and superb ozone durability. With first-string quality, they feature compression set control, shear modulus (0.9-1.2 MPa), and fire resistance on request. Virtually maintenance-free, these new release bearings promise reliable service up to 50 years. Offered exclusively by India's leading dealers, fabricators, manufacturers, producers, retailers, suppliers, traders, and wholesalers-a true bargain in engineered bearing solutions.

Versatile Features and Usage Benefits

Our elastomeric bearings are distinguished by their integrated elastomeric sealing, robust anti-corrosion coatings, and customizable dimensions. Designed for static structures, they require only simple placement, eliminating the need for lubrication or intricate maintenance. The primary competitive advantages include extended service life (up to 50 years), adaptability to project-specific requirements, and compliance with global standards. These bearings offer an economical, long-term solution for critical load-bearing applications in both infrastructure and industrial sectors.

Export Valuation, Packaging, and Sample Availability

Major export markets include Asia, Africa, Europe, and the Middle East. We ensure high-value exchange by providing reliable supply capability and prompt dispatch. Samples are available for authorized evaluation prior to order commitment. Each bearing is individually packaged to guarantee protection during transit, and custom labeling requirements can be accommodated. Our export valuation processes uphold client confidence and strengthen long-term business relationships, reflecting optimum professionalism in every transaction.

FAQ's of elastomeric bearings:

Q: How are rectangular and circular elastomeric bearings installed?

A: Both rectangular and circular elastomeric bearings are installed through straightforward placement between structural elements, requiring no lubrication or greasing for operation.

Q: What are the benefits of using elastomeric bearings in bridges and railway structures?

A: These bearings absorb movement and vibrations, accommodate load dispersal, resist harsh weather, and operate virtually maintenance-free, thus extending service life and reducing lifecycle costs.

Q: Where do these elastomeric bearings conform in terms of standards and usage?

A: They conform to ASTM D4014, EN 1337-3, IRC:83 Part II, and IS:3400 standards, making them suitable for a wide spectrum of infrastructures, including bridges, flyovers, buildings, and railway structures.

Q: What is the typical lifespan and maintenance requirement for these bearings?

A: Designed to last from 20 to 50 years depending on site conditions, our elastomeric bearings require minimal to no regular maintenance due to their self-lubricating properties.

Q: What process is followed for international orders and packaging?

A: Exported bearings undergo stringent valuation, exchange agreements, and secure packaging to ensure product integrity during international shipment. Custom packaging needs can be met based on project requirements.
