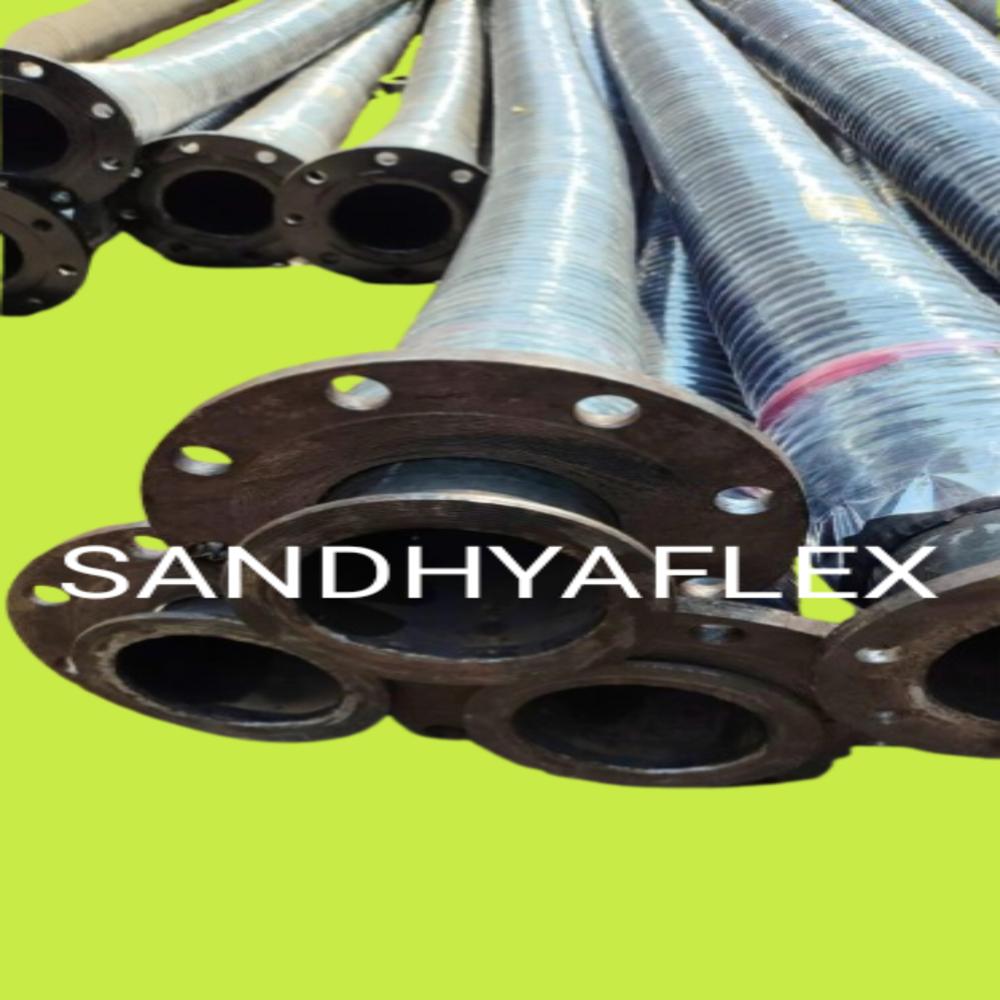

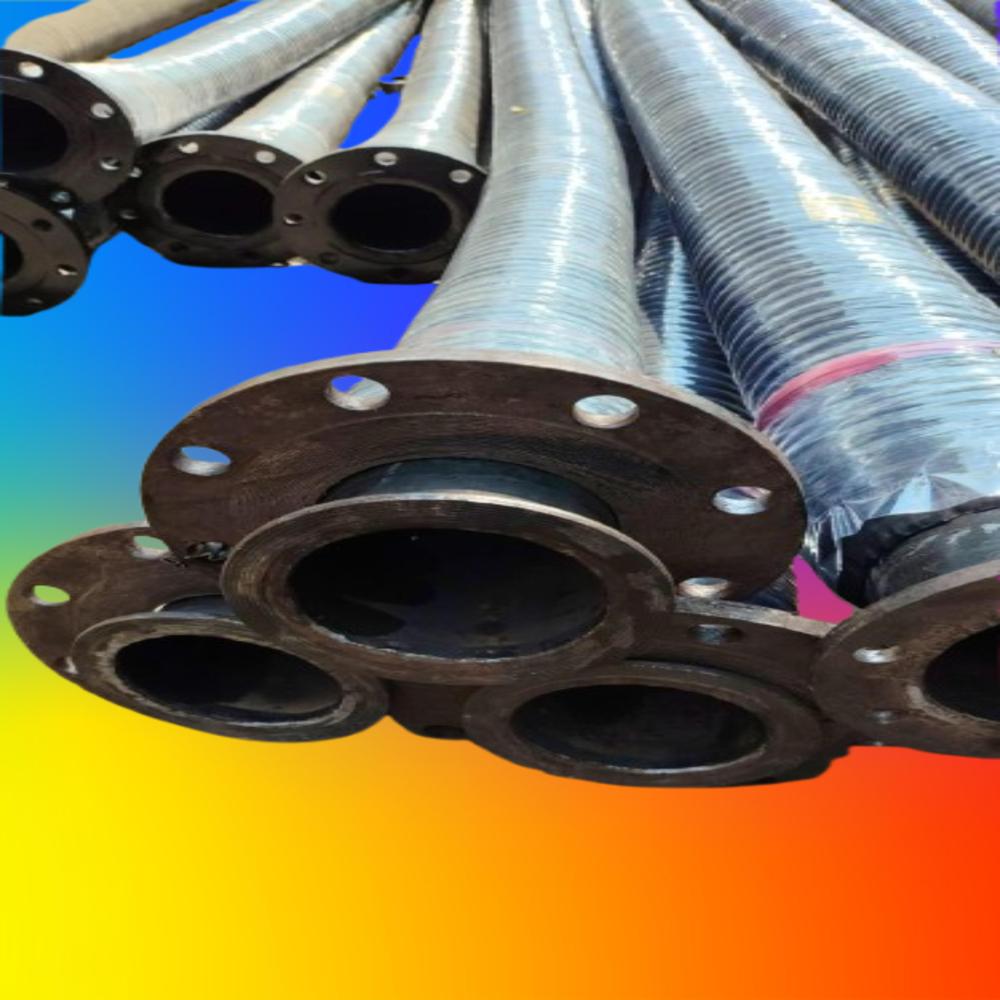

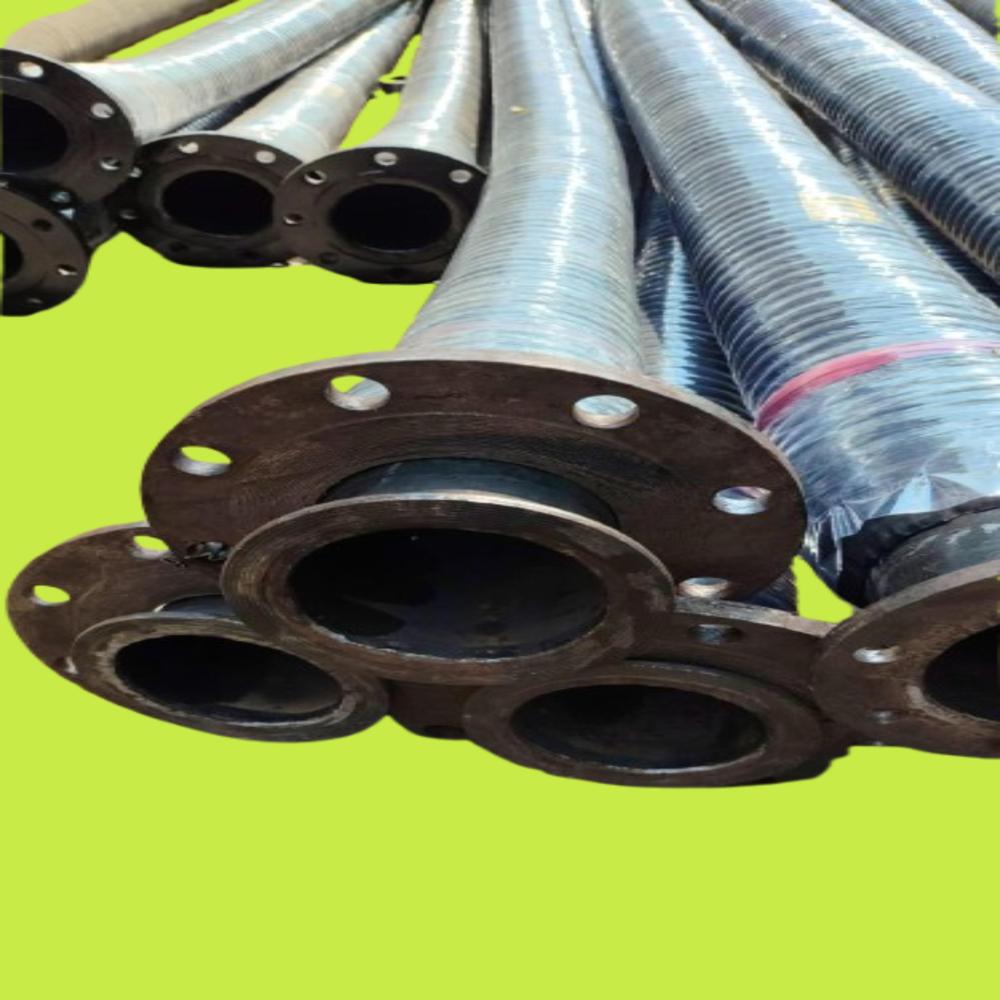

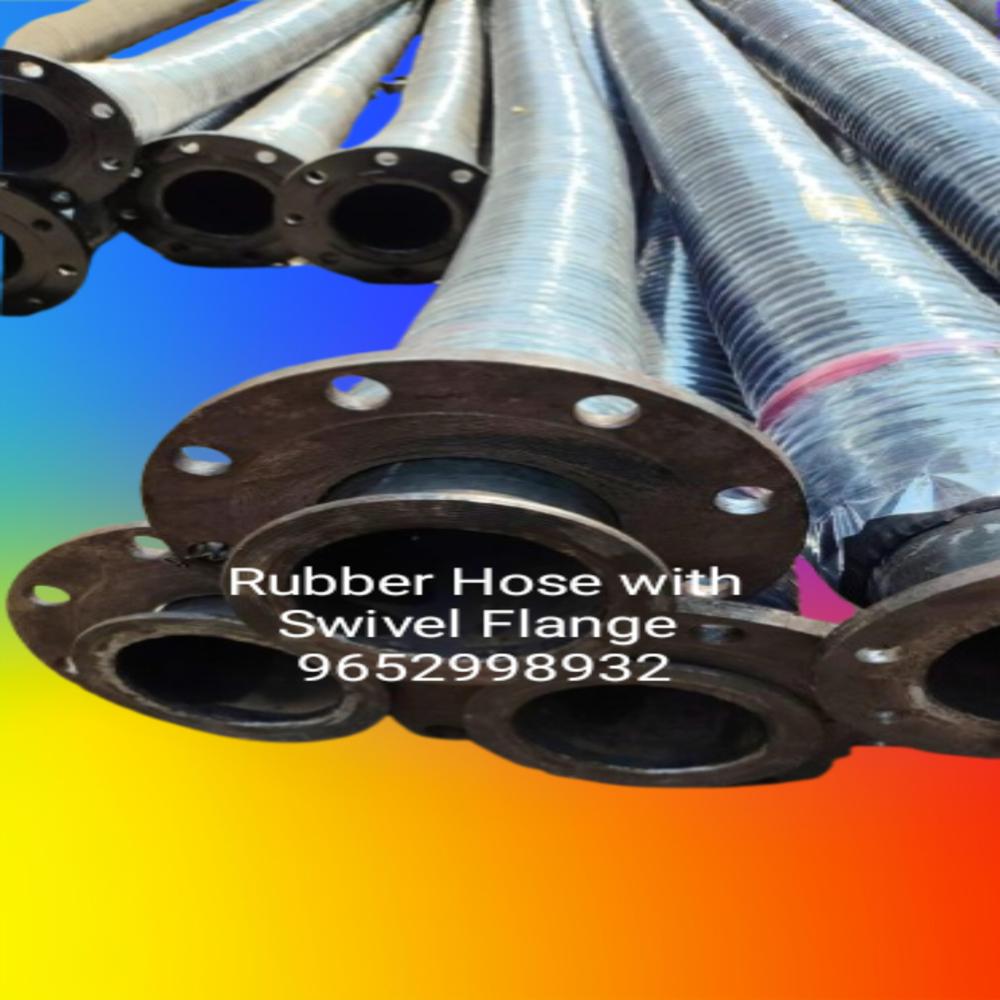

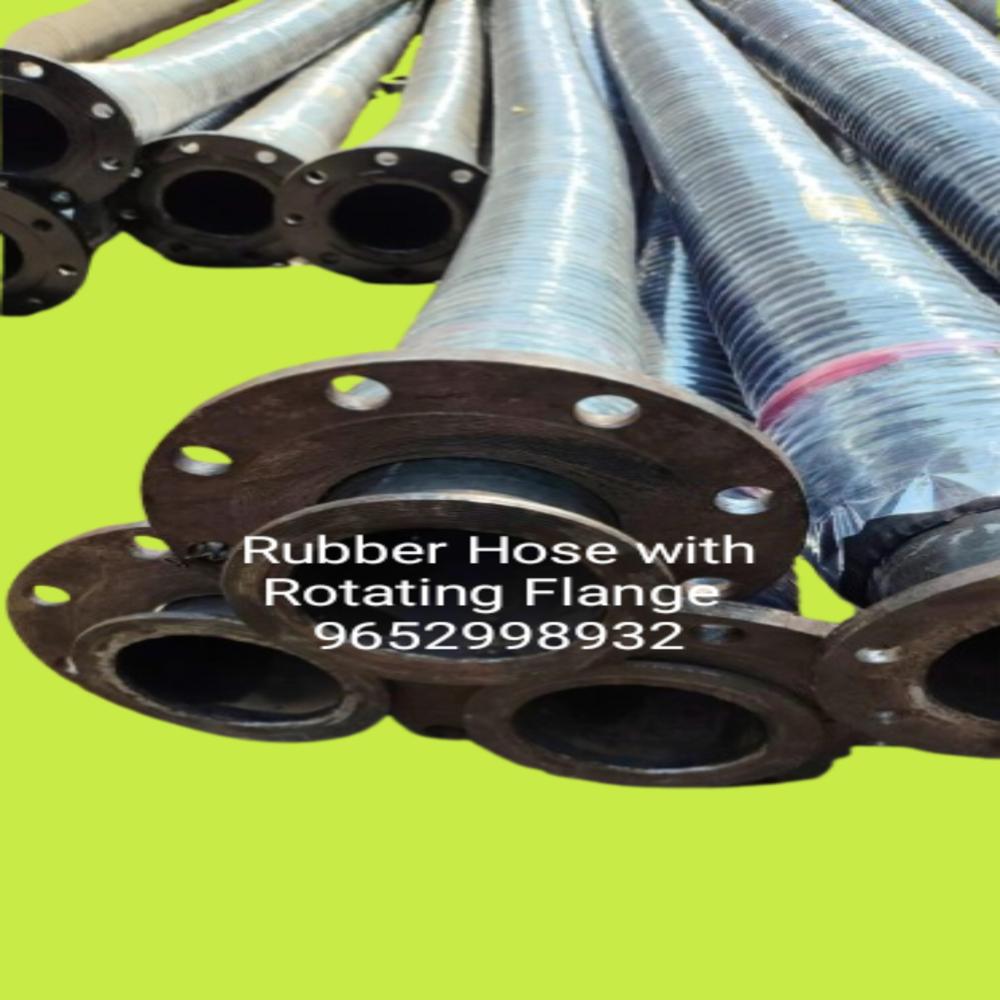

Cement Feeding Rubber Hose with Swival Flange

About Cement Feeding Rubber Hose with Swival Flange

Heres a detailed overview of a Cement Feeding Rubber Hose with Swivel Flange, commonly used in cement plants and bulk material handling systems for its flexibility and ability to accommodate movement between connected components.

---

Cement Feeding Rubber Hose with Swivel Flange

Product Description:

A Cement Feeding Rubber Hose with Swivel Flange is designed for the pneumatic transfer of dry cement, fly ash, or similar bulk materials. The hose is equipped with a swivel flange that allows for rotational movement between the hose and connected equipment, preventing stress or damage to the hose and connections due to vibrations, misalignment, or angular displacement.

---

Applications:

• Cement bulk handling systems for feeding cement from transport to silos.

• Pneumatic conveying systems for the transfer of dry bulk materials like cement, fly ash, and powdery substances.

• Feeding stations in ready-mix concrete plants (RMC).

• Airslide conveyors and silo feeding systems in cement factories and power plants.

---

Construction:

Component	Material / Details
Inner Tube	Abrasion-resistant rubber (e.g., NR, SBR) designed for bulk material handling.
Reinforcement	Synthetic fabric and/or steel wire braid for pressure strength and flexibility.
Outer Cover	UV, ozone, weather, and abrasion-resistant rubber for durability.
End Connection	Swivel flange (fixed to the hose on one end, free rotation at the connection).
Flange Type	Typically ANSI or DIN flanges (with standard bolt holes for secure fitting).

---

Typical Specifications:

Specification	Value/Range
Inner Diameter (ID)	2" to 6" (50 mm to 150 mm)
Length	3 m to 12 m (custom lengths available)
Working Pressure	10 bar to 20 bar
Burst Pressure	Up to 50 bar
Temperature Range	-20C to +80C
Flange Type	Swivel flange (ANSI, DIN, or custom)
Bend Radius	Typically 6x to 10x the hose diameter
End Connection Type	Swivel flange on one or both ends

---

Key Features:

• Swivel flange design allows the hose to rotate freely, preventing stress at the connection points.

• Abrasion-resistant rubber lining handles cement, fly ash, and other bulk materials.

• Flexibility in the hose provides easy handling and installation, even in tight spaces.

• Corrosion-resistant flanges available in steel or stainless steel, suitable for harsh environments.

• Leak-proof connection with secure bolt-on installation.

---

Advantages of Swivel Flange:

• Reduces wear and tear: The swivel action prevents damage caused by movement and vibration at the hose connection.

• Improves hose life: With less mechanical stress, the hose lasts longer and maintains performance.

• Versatile installation: Ideal for systems with frequent movement, misalignment, or changing angles.

• Ease of installation and maintenance: Simplifies setup and allows for quick replacement without damaging the system.

---

Customizations & Options:

• Swivel flange materials: Choose between carbon steel or stainless steel for corrosion resistance.

• Larger diameters or longer lengths based on specific system requirements.

• Heat-resistant versions for handling high-temperature materials.

• Anti-static versions for safe operation in explosive or sensitive environments.

• Pressure ratings can be customized based on the systems operating requirements.

---

Would you like:

• A datasheet or procurement template?

• Help finding suppliers in your area?

• Assistance determining hose sizing and length for your system?

Let me know what you need!

Designed for Efficiency and Rugged Performance

Manufactured in accordance with IS 446 or IS 7654 standards, the cement feeding hose delivers outstanding reliability and durability in demanding environments. Its reinforced construction provides a low bend radius, facilitating hassle-free installation and superior maneuverability. The hose is highly flexible and kink-resistant, ensuring uninterrupted material flow during cement and abrasive material transfer.


Customization for Every Project

We offer cement feeding hoses in a broad range of diameters (from 51 mm to 152 mm) and in both standard and tailor-made lengths to accommodate your specific operational needs. The swivel flange end connection can be supplied as per IS standards or according to particular client specifications. This ensures seamless compatibility with any existing system or unique project requirements.


Safety and Longevity with Enhanced Features

With an abrasion-resistant and weatherproof synthetic rubber cover, this hose excels in tough working conditions. Its design supports a burst pressure at least three times higher than the maximum working pressure, ensuring safety. Available with either corrugated or smooth surface finishes, it sustains long-term use without compromising flexibility or durability.
