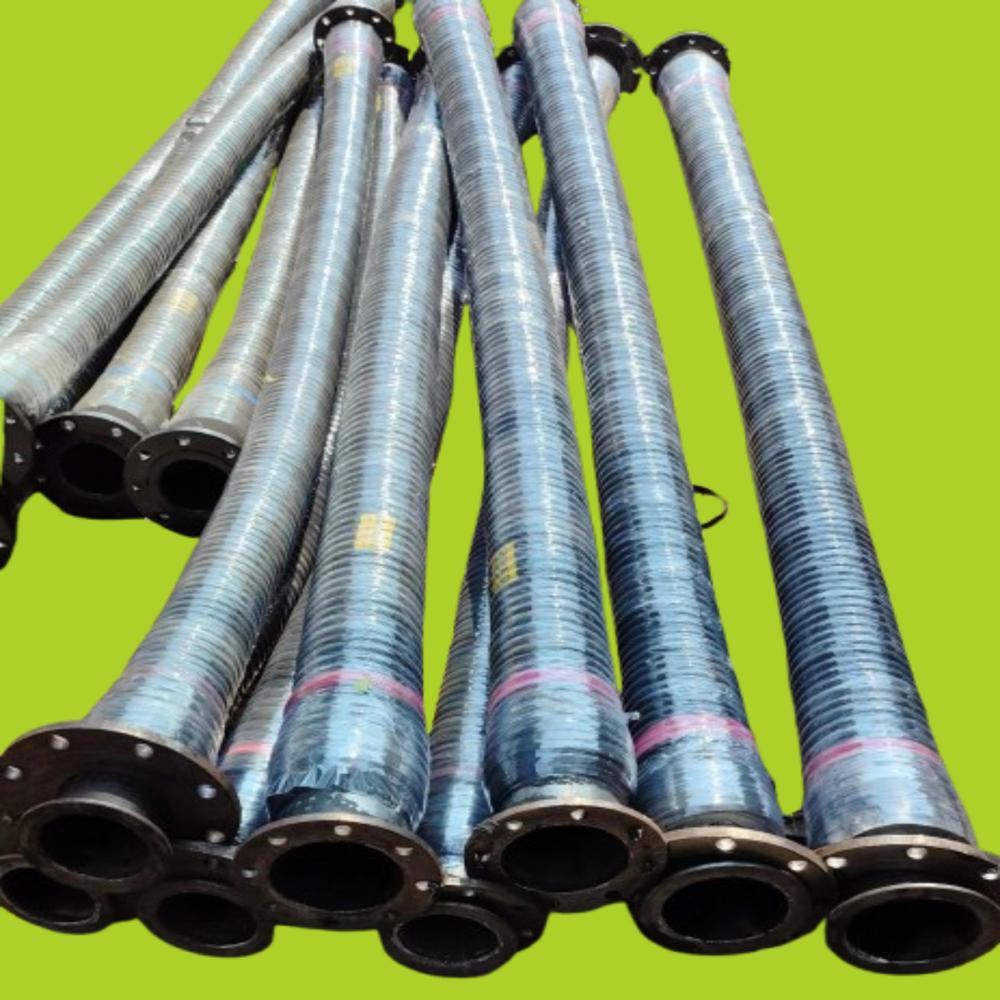

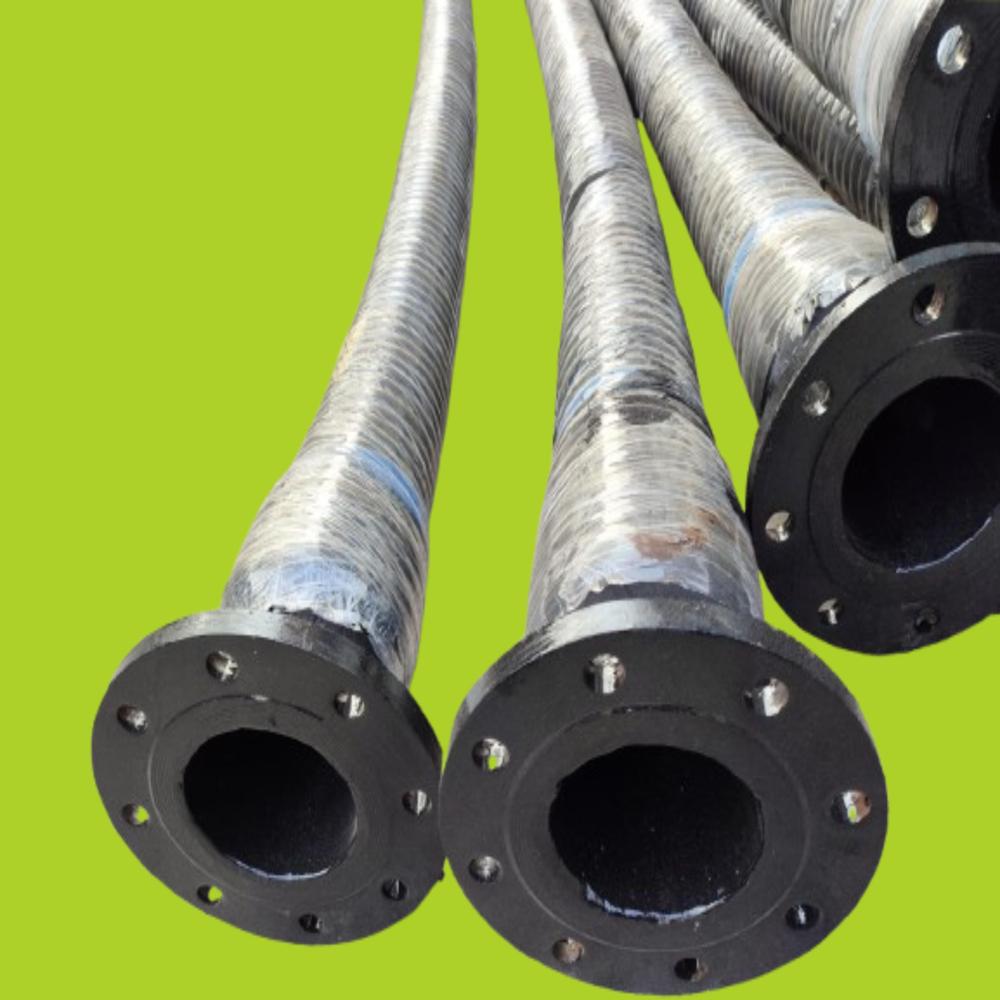

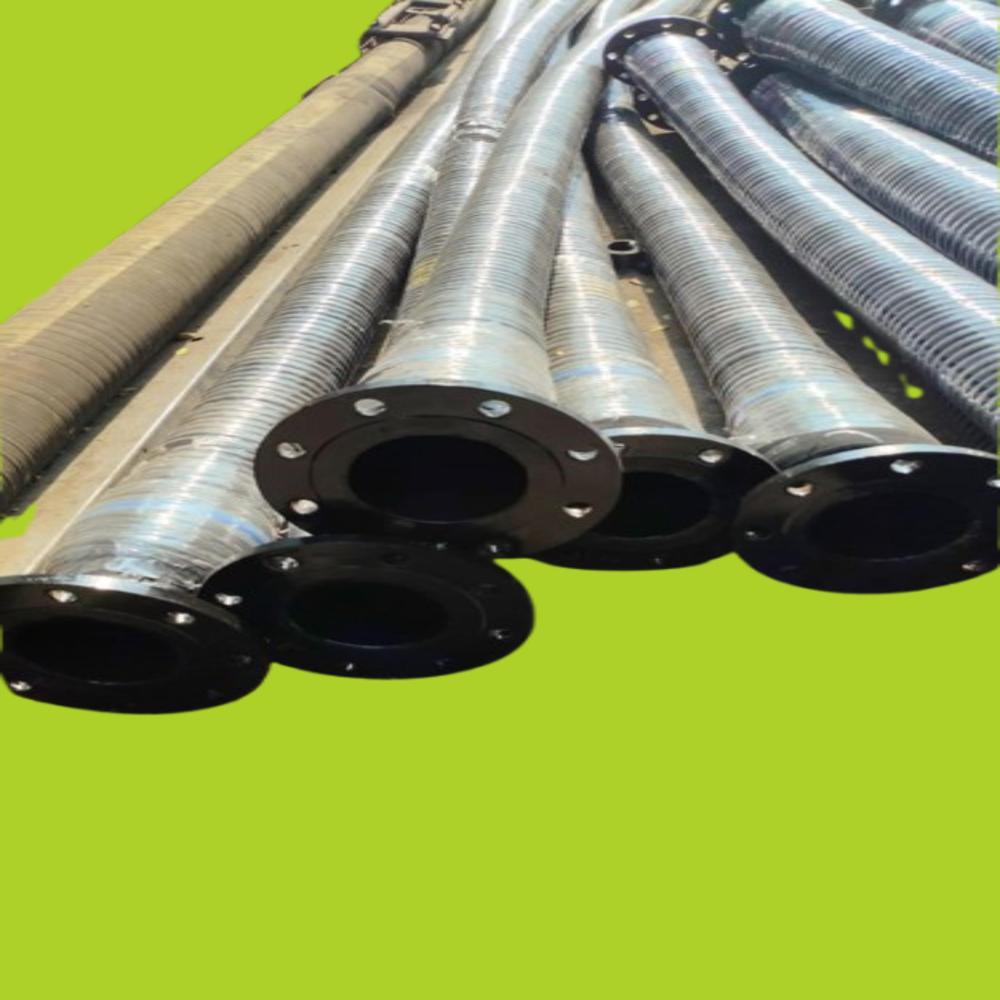

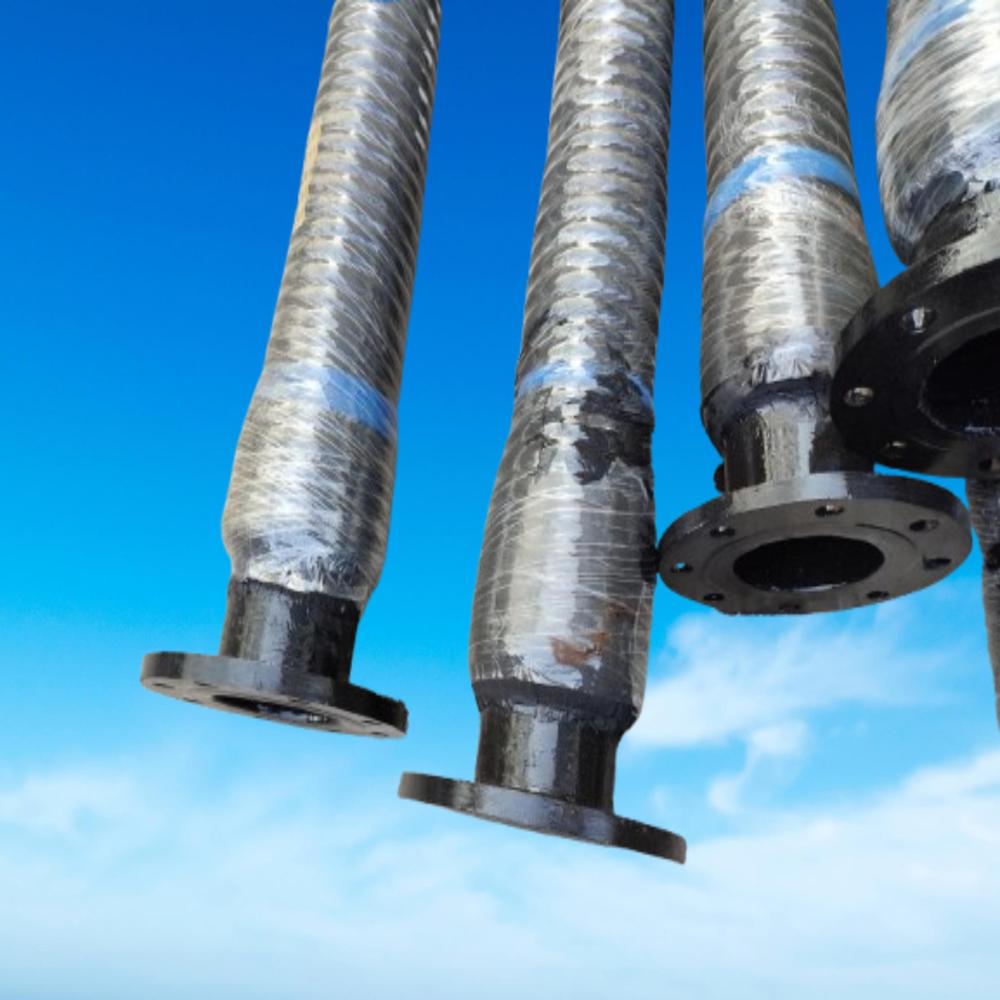

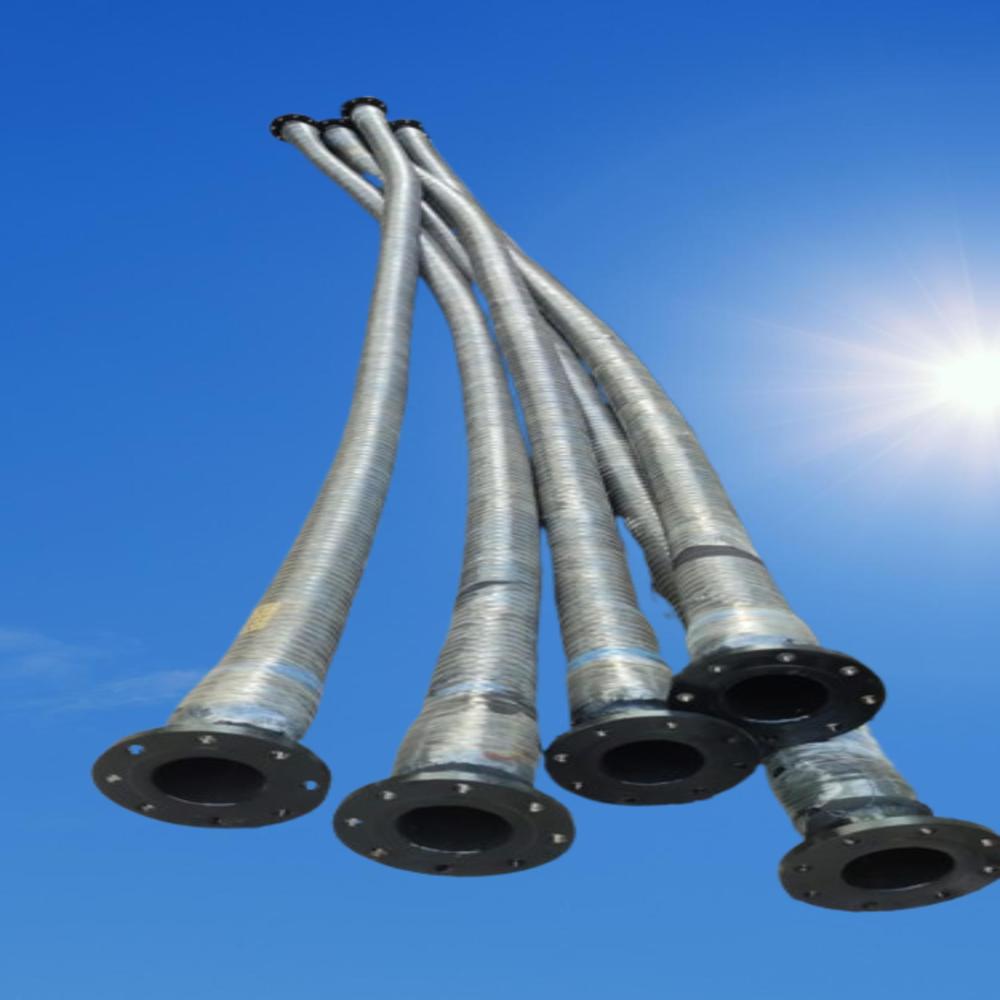

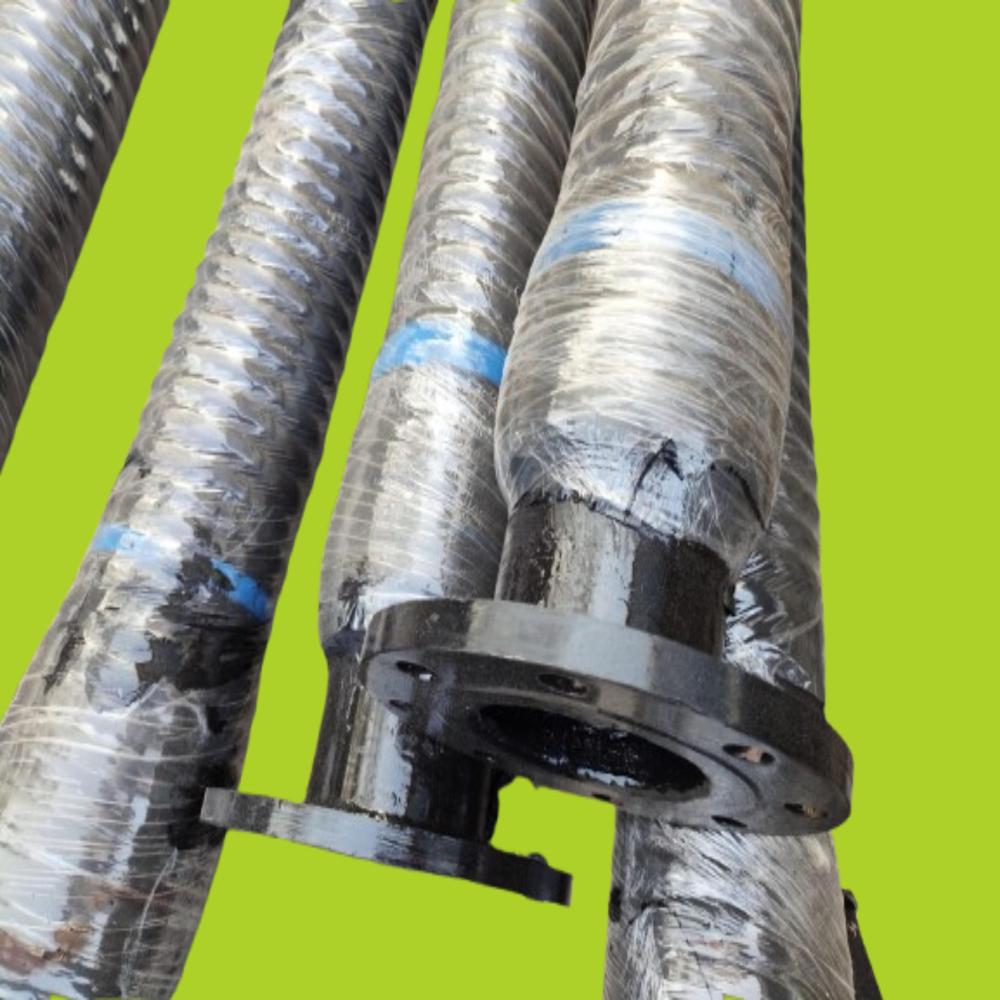

Cement Feeding Rubber Hose with fixed Flange

Send Inquiry

Request To Call Back

Cement Feeding Rubber Hose with fixed Flange

Price 1600.0 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Cement Feeding Rubber Hose with fixed Flange Specification

Hardness
65 5 Shore A

Cover
Abrasion resistant synthetic rubber

Shape
Round

Medium
Cement, Fly Ash, Dry Bulk Materials

Reinforcement
Textile plies with helical wire

Connection Type
Fixed Flange

Material
Natural & Synthetic Rubber

Temperature
-30C to +80C

Pressure
10 to 20 Bar

Inside Diameter
51 mm to 152 mm

Outside Diameter
65 mm to 170 mm

Application
Cement feeding in construction and RMC plants

Flexibility
High, with kink resistance

End Connection
Mild Steel (MS) Fixed Flange as per IS 513

Length
Up to 15 meters

Temperature Resistance
Resistant to both high and low temperatures

Bursting Pressure
Up to 60 Bar

Working Life
2500+ hours

Weight
Variable as per length and diameter

Color
Black

Inner Tube
Smooth, seamless rubber compound

Odor
Odorless

About Cement Feeding Rubber Hose with fixed Flange

Heres a refined and professional product description for your Cement Feeding Rubber Hose with Fixed Flange under your brand Sandhya Enterprises. Its suitable for catalogs, brochures, technical sheets, or your website:

Cement Feeding Rubber Hose with Fixed Flange

Brand: Sandhya Enterprises
Product Code: SE-CF-RH-FL

Product Overview:
The Cement Feeding Rubber Hose with Fixed Flange by Sandhya Enterprises is purpose-built for the pneumatic transfer of bulk cement and fine powders. Designed to withstand abrasion, pressure, and harsh weather, this heavy-duty hose is ideal for cement bulker unloading, silo feeding, and concrete batching plants.

Technical Construction:

Tube: Abrasion and wear-resistant blend of natural and synthetic rubber compatible with dry cement, fly ash, and similar materials.
Reinforcement: High-tensile synthetic plies with optional steel wire helix for added strength and vacuum resistance.
Cover: Anti-static, weatherproof, and ozone-resistant synthetic rubber (Black).
End Connection: Fixed MS or SS Flange (IS/ANSI/DIN standards), hot vulcanized with the hose body for a leak-proof, secure bond.

Technical Specifications:

Feature	Specification
Inner Diameter	2" to 6" (50 mm to 150 mm)
Length	Up to 15 meters (custom lengths available)
Working Pressure	10 to 15 Bar
Burst Pressure	Up to 30 Bar
Temperature Range	-30C to +100C
End Fittings	Fixed MS/SS Flange (as per standards)
Vacuum Rating	Optional steel wire for suction handling
Branding	Sandhya Enterprises printed on cover

Applications:

Cement bulker to silo connections
Pneumatic conveying in RMC & batching plants
Fly ash and cement transfer systems
Construction sites, cement plants, and industrial storage units

Highlights:

High flexibility and kink resistance
Excellent abrasion and weather resistance
Durable flange bonding for leak-proof performance
Custom sizes and pressure ratings available on request

Let me know if youd like this formatted into a PDF datasheet, a web product listing, or with certification details and testing reports (like hydro test, burst test, etc.). I can also draft a matching version for fly ash, silo, or unloading hoses if needed.

Robust Construction for Demanding Applications

This hose is crafted with high-grade natural and synthetic rubber, meeting the rigorous requirements of cement and fly ash handling. The reinforcement of textile plies with a helical wire provides durability and flexibility under pressure, ensuring a long operational life and reduced risk of rupture or leakage during tough construction activities.

Tailored Flexibility and Easy Installation

Offered in variable lengths and diameters, this hose ensures convenience for different site requirements. The fixed mild steel flanges (as per IS 513) allow secure and rapid connections, ensuring operational efficiency for dealers, manufacturers, and fabricators across India. Its high kink resistance and seamless inner tube make installation straightforward and reliable.

FAQ's of Cement Feeding Rubber Hose with fixed Flange:

Q: How is this hose typically used in construction and RMC plants?

A: The hose is primarily used for transferring cement, fly ash, and dry bulk materials from storage silos or tanks to mixers or batching plants, ensuring efficient, dust-free, and continuous material flow during construction and ready-mix concrete operations.

Q: What are the benefits of using a fixed flange end connection for this hose?

A: A fixed flange (MS, as per IS 513) enables secure, leak-proof attachment to the equipment, reduces installation time, and provides the strength needed for high-pressure applications, making maintenance and replacement of hoses more efficient.

Q: When should the hose be replaced for optimal performance?

A: Although designed for a working life of over 2,500 hours, regular inspection is recommended. The hose should be replaced if there are visible cracks, bulges, leaks, or significant wear on the inner or outer cover, or if its flexibility decreases markedly.

Q: Where can this hose be installed or applied?

A: This hose is suitable for use at construction sites, ready-mix concrete (RMC) plants, cement manufacturing facilities, and anywhere bulk dry materials need to be moved efficiently. Its design allows for both indoor and outdoor installation in Indian working conditions.

Q: What makes this hose resistant to temperature fluctuations and abrasion?

A: The use of high-quality natural and synthetic rubber compounds along with a specially formulated abrasion-resistant outer cover allows the hose to perform reliably between -30C and +80C and withstands the abrasive action of dry materials, prolonging service life.

Q: How does textile and helical wire reinforcement enhance the hose's performance?

A: Textile plies provide strength and flexibility, while the embedded helical wire prevents collapsing under vacuum and ensures structural integrity under higher working pressures, guaranteeing safe and efficient cement feeding even in demanding scenarios.
