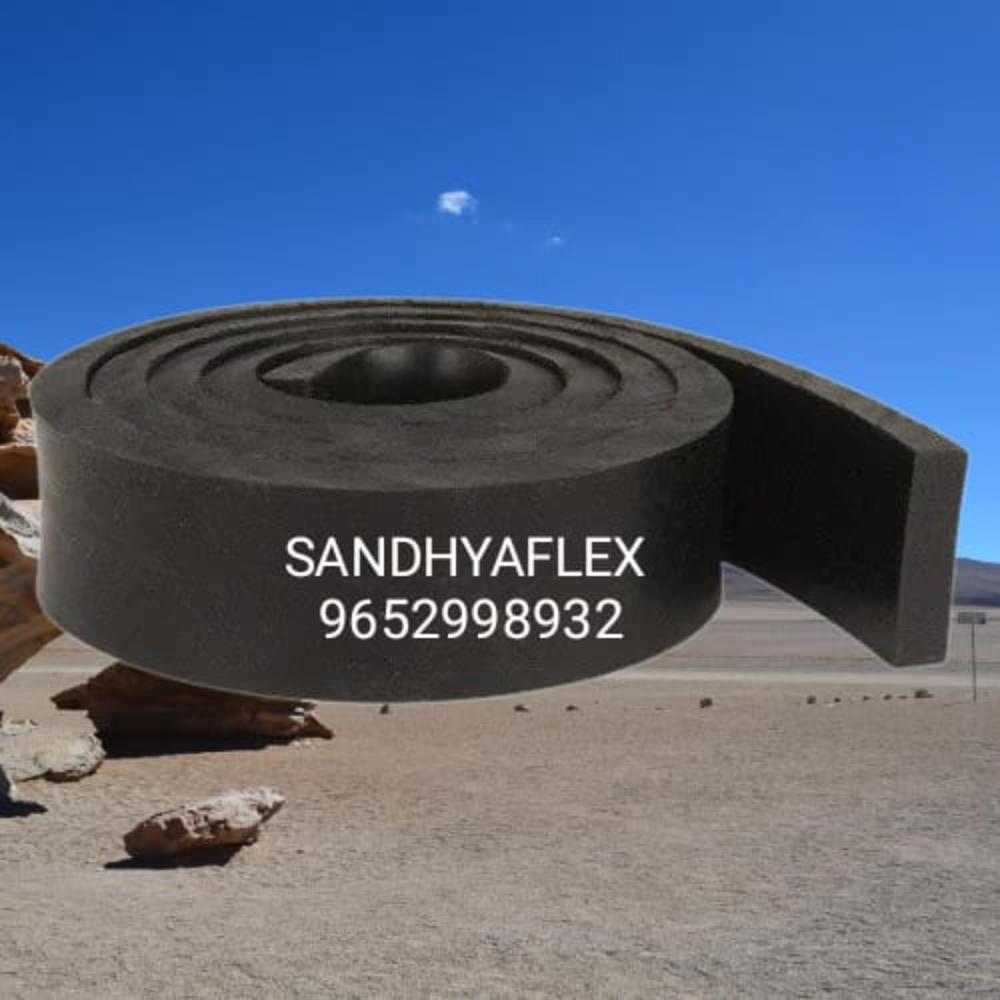

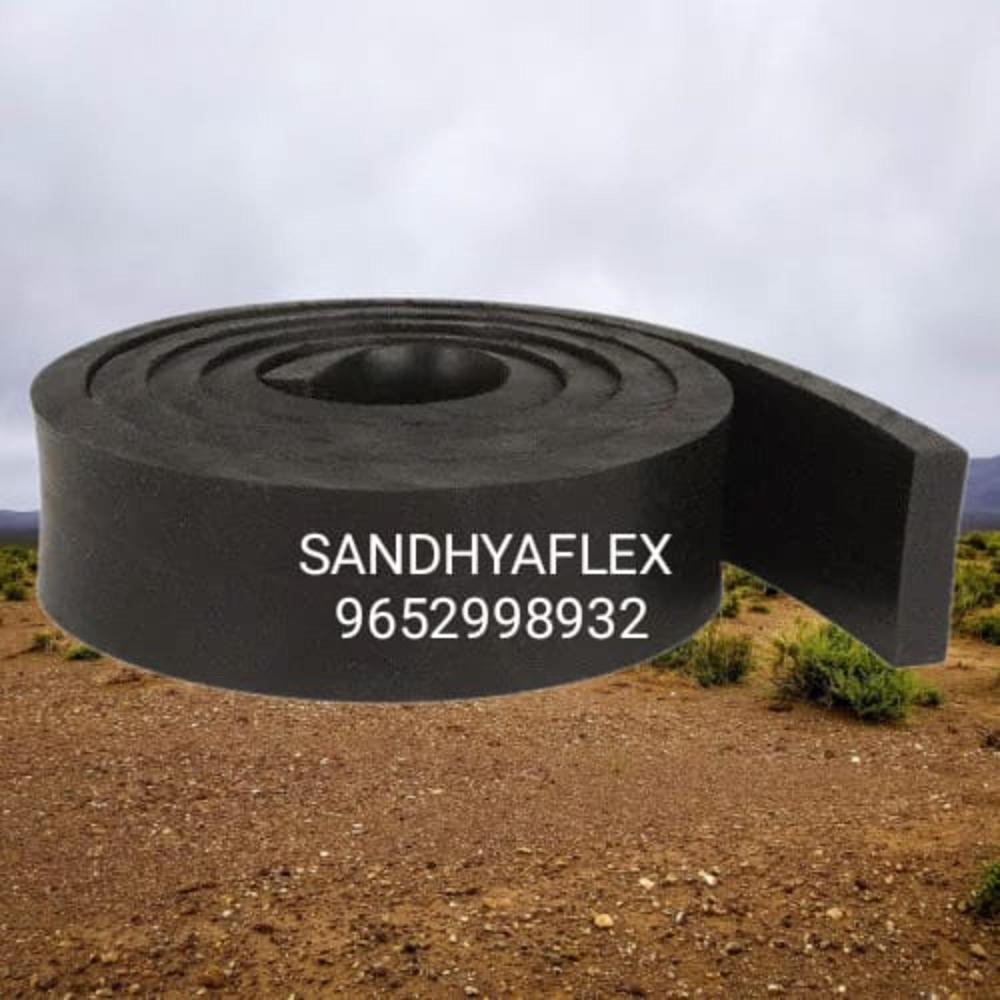

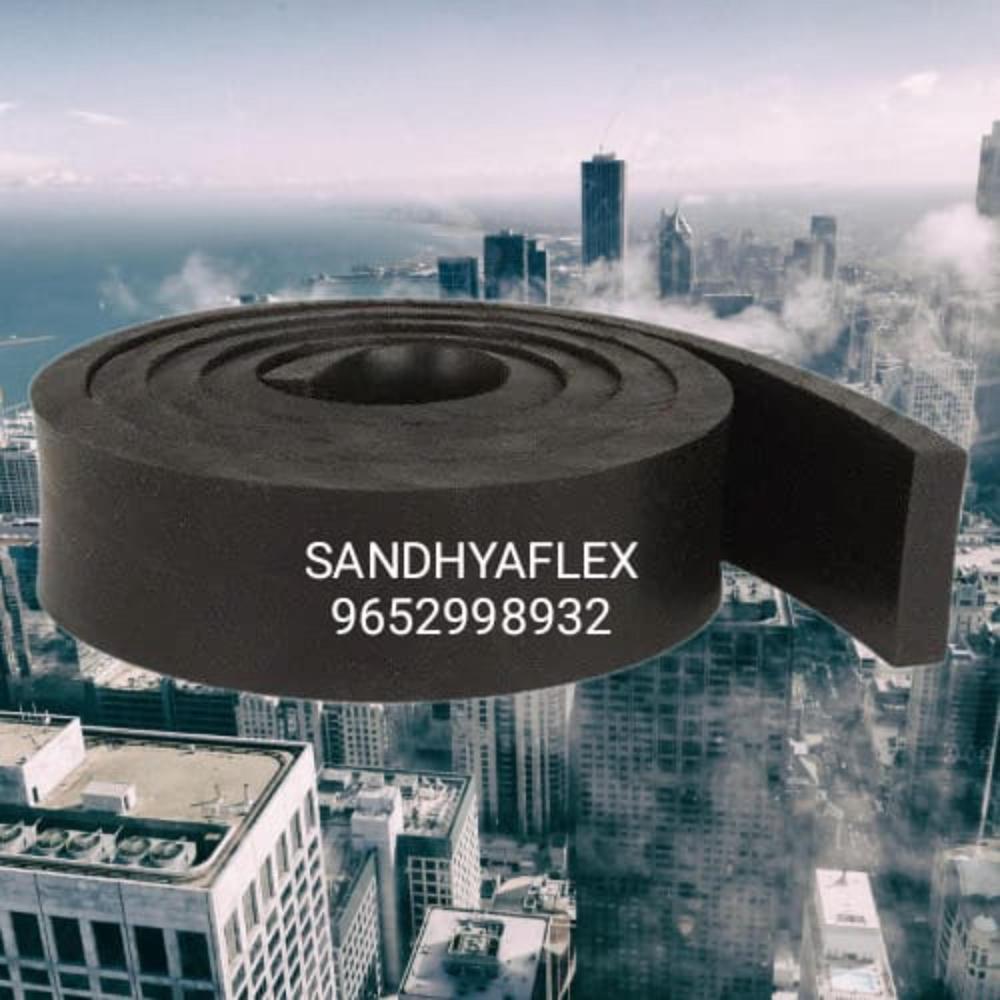

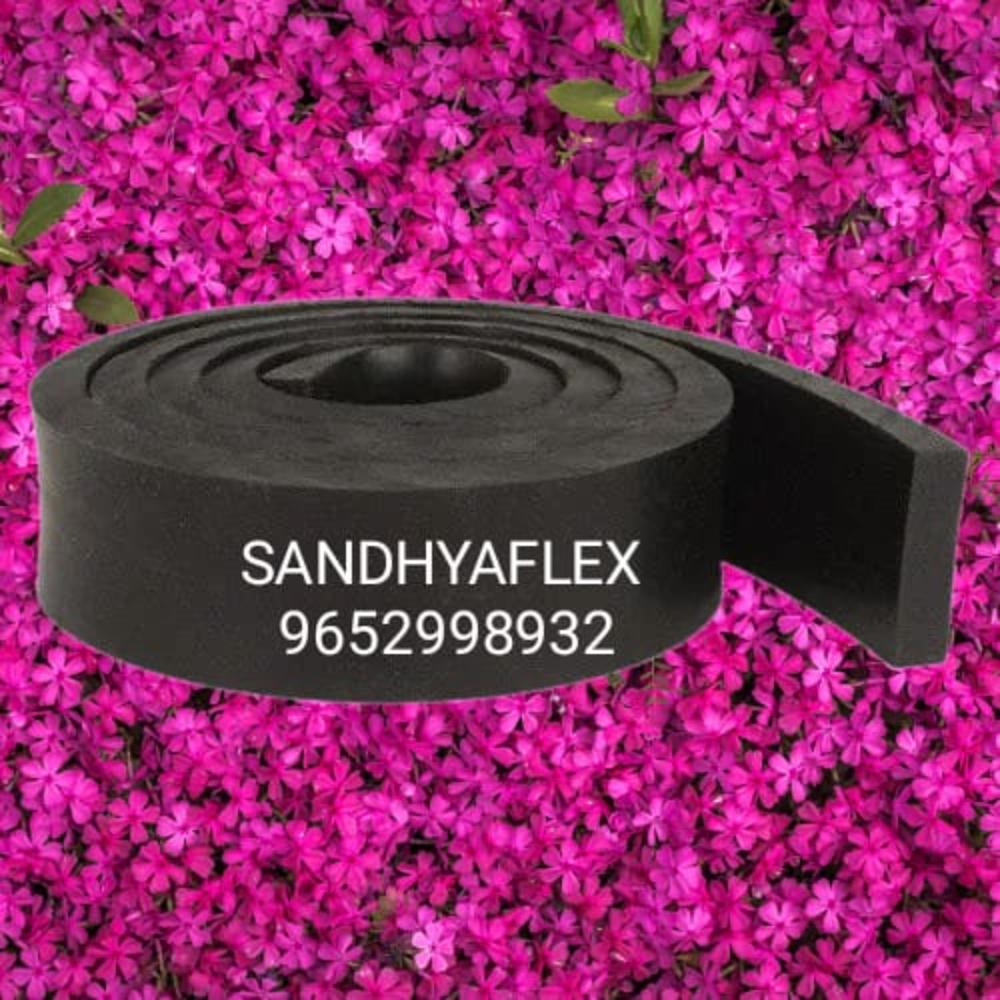

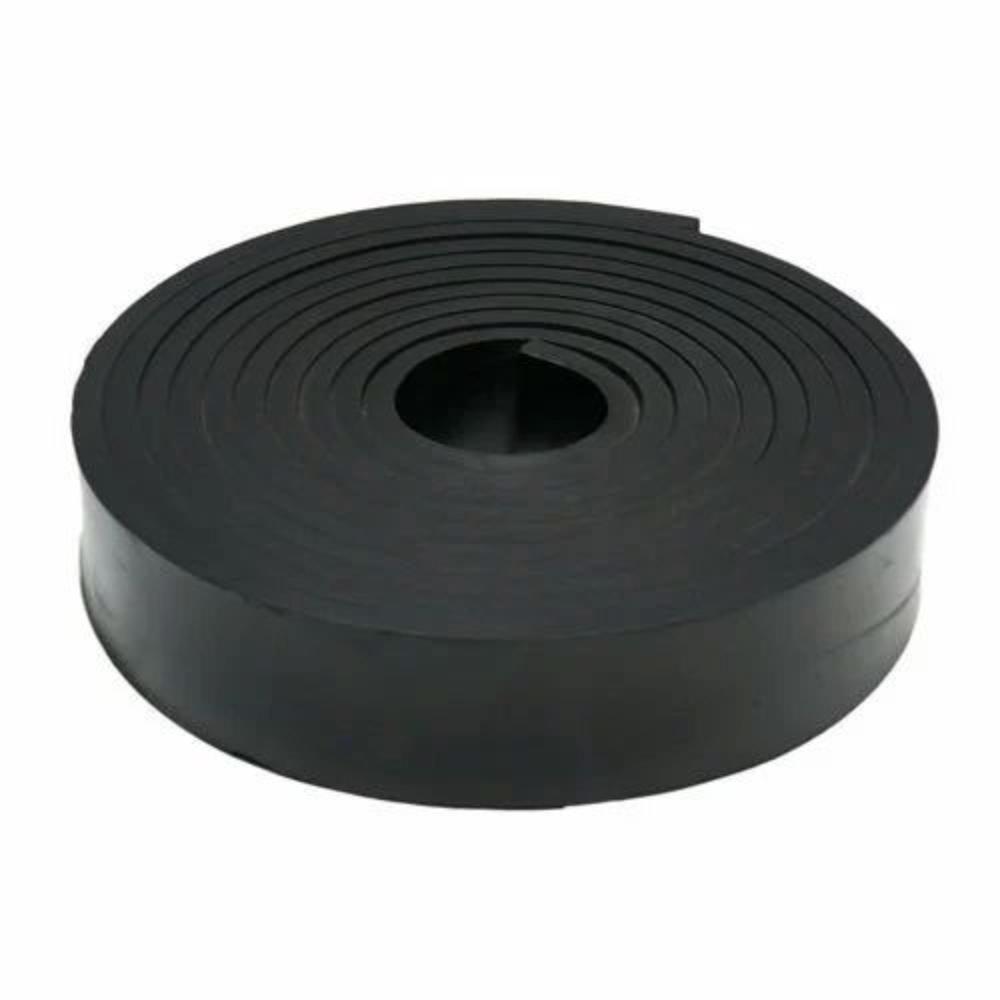

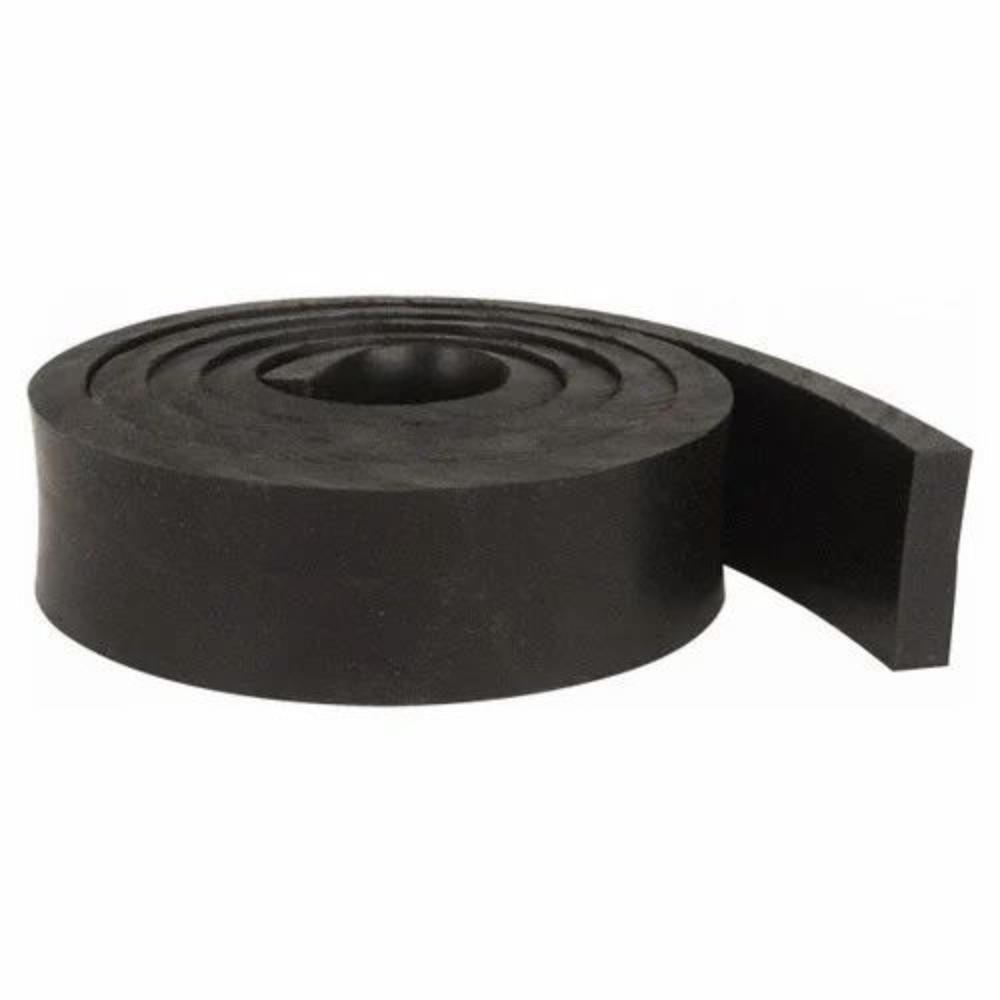

Bottom Dam Gate Seal

Name: Bottom Dam Gate Seal
Brand: SANDHYA ENTERPRISES
Price: 650.0 INR
Availability: InStock

Price 650.0 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Bottom Dam Gate Seal Specification

Components
Single piece or segmented as per application

Density
1.20 Gram per cubic centimeter(g/cm3)

Volatile Matter (%)
<1.5%

Weight
Varies by size and material

Water Absorption
<1% by weight

Material
EPDM/Natural Rubber/Nitrile/Neoprene

Part Type
Seal/Gasket

Resistance level
High to water, ozone, and weather impacts

Style
Flat bottom, bulb-type, omega-type, split-type, custom profile

Natural Rubber
Available in Natural and Synthetic Rubber compounds

Size
As per dam/gate design, customized lengths and profiles available

Compression Ratio
10% to 25%

Thermal Conductivity
Low, as per rubber standards

Feature
Excellent sealing, weather resistant, ozone-resistant

Nitrogen Content (%)
<0.15%

Rubber Type
EPDM, Natural, Nitrile, Neoprene

Surface Finish
Smooth or textured

Thickness
10 mm to 50 mm (customized)

Flame Resistance Level
Available on request (self-extinguishing grades)

Tolerance
2 mm

Color
Black

Ash %
<2%

Product Type
Bottom Dam Gate Seal

Tensile Strength
12 to 20 MPa

Hardness
60 to 70 Shore A

Length
Up to 20 meters per piece or as required

Temperature Resistance
-30C to +120C

Diameter
Not applicable (profile-based)

Usage & Applications
Dam gate sealing, water control structures, hydro-power plants, flood barriers, irrigation projects

Width
100 mm to 600 mm (customizable)

Abrasion Resistance
High designed for long-term durability

Rebound Resilience
40-50%

Ozone Resistance
Meets IS 11855/BSI standards

Service Life
1020+ years depending on application and maintenance

Packing Type
Rolls or cut-to-length pieces, protected packaging

Maintenance
Low; periodic inspection suggested

Compatibility
Concrete, steel, composite structures

Lead Time
2 to 4 weeks depending on quantity and customizations

Specific Gravity
1.2 to 1.5

UV Resistance
Excellent

Elongation at Break
>300%

Installation Method
Bolted, clamped, or adhesive mounting

About Bottom Dam Gate Seal

Discover the ace Bottom Dam Gate Seal, specially crafted for world-class water control applications. This affordable solution offers dazzling performance with elongation at break over 300%, exceptional abrasion resistance, and weatherproof properties. Personalise your seal to suit any gate design, width, or profile-making each installation truly special. Its high-grade EPDM, Natural, Nitrile, or Neoprene construction ensures excellent ozone and UV resistance, supporting a superb service life of 10-20+ years. Enjoy low maintenance and versatile mounting options-from bolted and clamped to adhesive installation. Custom sizes available for all your dam, hydro-power, and irrigation needs.

Versatile Usage and Application Areas

Bottom Dam Gate Seals are expertly used as high-resilience sealing components for dam gates, flood barriers, hydro-power stations, and irrigation projects. Suitable for concrete, steel, and composite structures, these special seals are configured for water control applications that demand maximum durability and weather resistance. Widely used in both new installations and refurbishments, they offer excellent reliability across varied environmental and operational conditions, ensuring ace protection against water ingress and structural wear.

Swift Delivery & Convenient Payment Terms

We offer timely dispatch and secure transport services for all Bottom Dam Gate Seal orders. Lead times typically range from 2 to 4 weeks, depending on order size, profile, and special customizations. Export shipments are regularly dispatched to main markets such as South East Asia, Africa, and the Middle East. Payment can be made at the listed price via preferred channels. Every shipment is packaged with robust protection for safe and efficient delivery.

FAQ's of Bottom Dam Gate Seal:

Q: How is the Bottom Dam Gate Seal installed and maintained?

A: The Bottom Dam Gate Seal can be installed using bolted, clamped, or adhesive mounting, tailored to the gate structure. Regular periodic inspection is recommended to maintain optimal sealing performance, but overall maintenance is low.

Q: What materials are available for these seals, and how do they benefit my application?

A: Seals are crafted from EPDM, Natural Rubber, Nitrile, or Neoprene compounds, providing excellent resistance to water, ozone, UV, and abrasion. This ensures superb durability and reliability in demanding environmental conditions.

Q: When can I expect delivery after placing an order, and how are products shipped?

A: Delivery is typically within 2 to 4 weeks, depending on size and customization. Products are dispatched using secure transport services and packaged for maximum protection during transit.

Q: Where can Bottom Dam Gate Seals be used?

A: These seals are ideal for dam gates, hydro-power plants, flood barriers, and irrigation systems, as they are compatible with concrete, steel, and composite structures.

Q: What are the key benefits of using Bottom Dam Gate Seals for water control?

A: The main benefits include excellent sealing capability, high resistance to environmental impacts (weather, ozone, and abrasion), long service life, and the ability to customise profiles to match specific project requirements.

Q: Can the seal be customised for unique project needs?

A: Yes, the seal can be fully personalised for width (100-600 mm), thickness (10-50 mm), length (up to 20 metres), and profile type to suit any dam or gate design.
