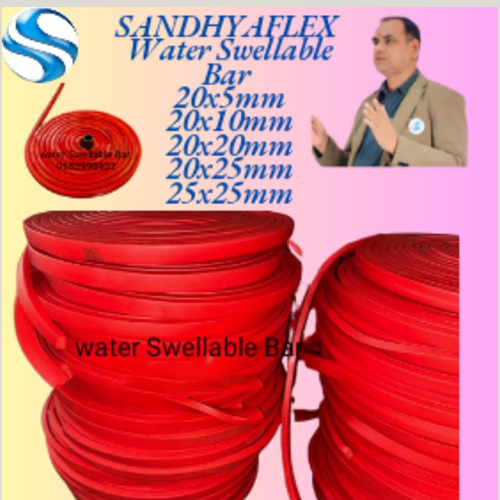

Water swellable Bar

Name: Water swellable Bar
Brand: SANDHYAFLEX INDIA PRIVATE LIMITED
Price: 96.0 INR
Availability: InStock

Price 96.0 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Water swellable Bar Specification

Material
Hydrophilic Rubber

Type
Water Swellable Bar

Thickness
20 mm

Application
Concrete Construction Joints, Tunnels, Water Tanks

Hardness
70-80 Shore A

Surface Treatment
Smooth Finish

Resistance to Water Pressure
Up to 6 bar (600 kPa)

Color
Red

Tensile Strength
3 MPa

Water Swell Ratio
Up to 500% of original volume

Elongation at Break
300%

Packaging Type
Rolls / Strips / Custom cut lengths

Operating Temperature Range
-30C to +70C

Width
10 mm 30 mm

Length
1 m to 5 m (customizable)

About Water swellable Bar

Experience first-class sealing performance with our Personalised Water Swellable Bar, distinctly Featured for its Valorous resistance and Lofty efficiency. Designed with precision, this bar boasts a Water Swell Ratio of up to 500%, instantly expanding to form a watertight seal. Its high flexibility and robust hydrophilic rubber composition allow for customisation to your exact project needs-available in widths from 10 mm to 30 mm and lengths from 1 m to 5 m. It's the ideal solution for tunnels, water tanks, and concrete construction joints across India, offering instant savings, reliability, and durability in every application.

Water Swellable Bar - Usage and Competitive Edge

Apply the Water Swellable Bar directly to construction joints or water-retaining structures for superior waterproofing. It is commonly used in tunnels, water tanks, and concrete joints due to its remarkable sealing abilities. With high elongation and tensile strength, it outperforms standard sealants, ensuring no water ingress even under high pressure. Its universal application, ease of installation, and exceptional swelling capacity give it a strong competitive advantage over traditional methods.

Lead Time, Supply and Export Market for Water Swellable Bar

Delivery is prompt, reflecting our loftiest valuation of your projects' timelines-most orders are fulfilled within days. With robust supply capabilities, we support small to bulk requirements for dealers and wholesalers. Our commitment extends to national and international markets, including rapid freight to major export destinations. As a reliable manufacturer and supplier, we ensure a streamlined experience from order to delivery, enhancing project efficiency and reducing wait times globally.

FAQ's of Water swellable Bar:

Q: How is the Water Swellable Bar installed in concrete construction joints?

A: The Water Swellable Bar is simply placed or adhered into the joint or where waterproofing is needed before pouring concrete; it expands upon contact with water, ensuring long-lasting protection.

Q: What is the main benefit of using a water swellable bar over regular sealants?

A: Unlike conventional sealants, the hydrophilic bar swells up to 500% of its original volume upon water exposure, providing a superior, active seal against water ingress and adapting to joint movement.

Q: When should the Water Swellable Bar be used during construction?

A: Install the bar during the preparation stage, before concrete is poured or joints are sealed, to ensure optimal swelling and lasting watertightness after curing and water exposure.

Q: Where can these water swellable bars be effectively applied?

A: They are ideal for use in tunnels, water tanks, basement connections, concrete construction joints, and any structure requiring robust waterproofing under variable water pressure.

Q: What is the process for customising sizes and packaging?

A: Customers can specify desired width, length, and thickness; we offer rolls, strips, or custom-cut lengths to meet project-specific requirements for easy and efficient installation.
