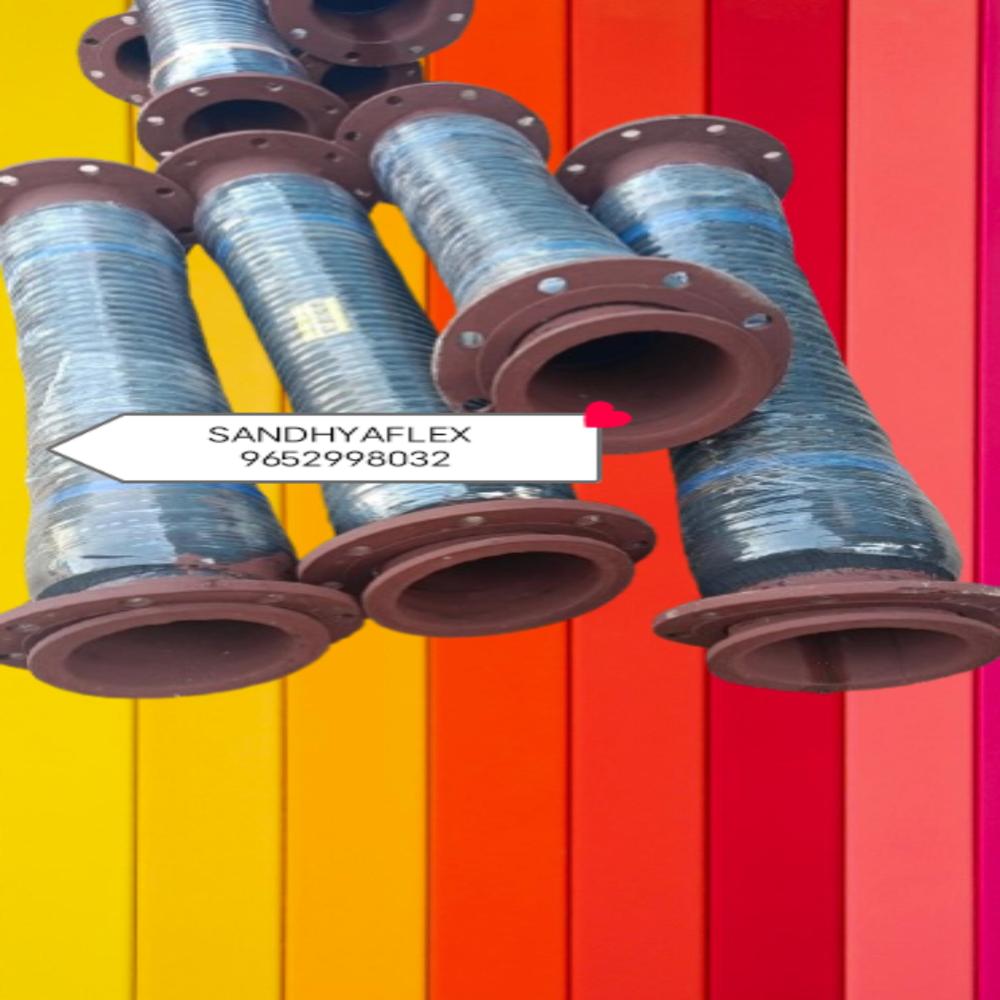

Rubber Hose with Rotating Flange

Name: Rubber Hose with Rotating Flange
Brand: SANDHYA ENTERPRISES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Rubber Hose with Rotating Flange Specification

Cover
Abrasion and weather-resistant synthetic rubber

Connection Type
Rotating Flange

Medium

Shape
Cylindrical / Straight

Hardness
70 ± 5 Shore A

Reinforcement
Multiple layers of synthetic fabric and steel wire helix

Material
High-grade synthetic rubber

Temperature
-40°C to +80°C

Pressure
Up to 25 bar

Inside Diameter
100 mm to 600 mm

Outside Diameter
Variable as per inside diameter and reinforcement

Length
Upto 10 meters continuous

Flange Standard
ANSI, DIN, or as per customer requirement

Color
Black

Flexibility
Excellent multi-directional

Operating pH Range
4 to 12

Flange Material
Carbon steel / Stainless steel

Application
Suction and delivery for mining, dredging, industrial and marine environments

Burst Pressure
Up to 75 bar

UV Resistance
High

Weight
Depends on diameter and length, approx. 15 kg/m

End Connection
Rotating flanges at both ends

Tensile Strength
Minimum 15 MPa

Elongation at Break
Minimum 400%

About Rubber Hose with Rotating Flange

Discover the top choice in flexible connections-our Rubber Hose with Rotating Flange, acclaimed across India for its ace performance in mining, dredging, industrial, and marine environments. Engineered with a radiant array of features, including glorious multi-directional flexibility and a special-rate burst pressure up to 75 bar, this product is manufactured using high-grade synthetic rubber with robust reinforcement. The rotating flanges, crafted from carbon steel or stainless steel, guarantee a secure and adaptable fit. Expect high tensile strength, strong UV resistance, and an operating pH range from 4 to 12, ensuring reliability under diverse conditions.

Versatility Across Applications

The Rubber Hose with Rotating Flange is designed for robust use cases like suction and delivery in mining sites, dredging operations, and industrial or marine environments. Its cylindrical, straight form and multiple reinforcement layers make it suitable for water, slurry, air, oil, and other fluids. Ideal for surfaces requiring durable, abrasion-resistant connections, it's engineered for those demanding ace utility and glorious reliability in every pull, bend, or turn. Suitable for intense or continuous operation.

Distribution, Certifications, and Prompt Service

Catering primarily to India's main domestic market, our Rubber Hose with Rotating Flange ships efficiently from renowned Indian FOB ports. We deliver at a special rate, ensuring every product is securely packed and swiftly dispatched. Each hose is supported by recognized certifications, underscoring its acclaimed reliability for dealers, suppliers, and end-users. Trust in our radiant service ethos, which guarantees timely delivery, robust packing, and assured quality from a leading manufacturer and fabricator.

FAQ's of Rubber Hose with Rotating Flange:

Q: How does the rotating flange enhance the hose's usability?

A: The rotating flange design allows for flexible, easy alignment during installation, reducing stress on the hose and minimizing wear from twisting or vibration. This feature makes the hose ace for various demanding applications.

Q: What types of media can the Rubber Hose with Rotating Flange handle?

A: It is suitable for conveying water, slurry, air, oil, and other fluids, thanks to its robust synthetic rubber composition and multi-layer reinforcement. Its versatility makes it top-tier for industrial, mining, and marine use.

Q: When should I use this hose for maximum benefit?

A: Deploy the Rubber Hose with Rotating Flange when you need superior flexibility, radiant burst pressure tolerance up to 75 bar, and high UV plus abrasion resistance in harsh mining, dredging, or industrial settings.

Q: Where can I purchase this hose in India?

A: You can obtain the hose from reputable Indian dealers, fabricators, manufacturers, producers, retailers, suppliers, traders, and wholesalers. It is widely distributed to serve your operational requirements.

Q: What is the recommended process for installation and maintenance?

A: Properly align the rotating flanges with your pipeline, ensuring a firm fit. Routine inspections, cleaning, and timely replacement of worn gaskets are recommended for glorious, safe, and long-lasting usage.

Q: How does the product's certification benefit users?

A: Certified hoses guarantee compliance with industry standards, giving you reliable performance, enhanced safety, and peace of mind during critical delivery, packing, and dispatch operations.
