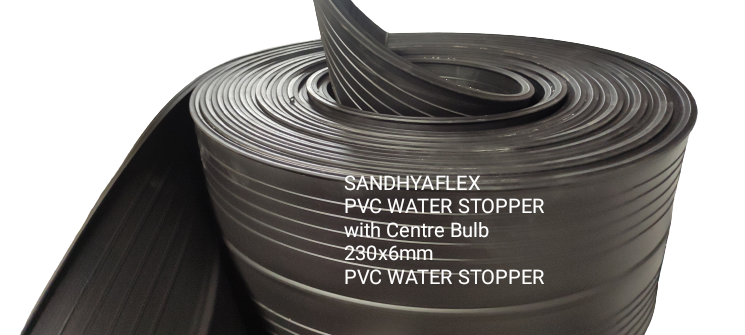

PVC Water Stopper With Centre Bulb 230 x 6 mm

Price 105 INR/ Meter

Get a Price/Quote

PVC Water Stopper With Centre Bulb 230 x 6 mm Specification

Usage
Sandhya Enterprises are one of the top manufacturers in India. Water Stoppers are the flexible plastic strips that are used to provide a physical barrier to water. The barriers can be at concrete joints in basements, water-retaining structures like water tanks, swimming pools, structural foundations and other constructions of below ground level. Water stoppers are also known as water bars and seal construction joints. In a typical water stopper, there are two identical halves on both sides of the central bulb. They serve as an additional extension aiming to increase the path length for water entering behind the edge of water stopper. Compounding of PVC Water Stopper Anti-ageing customized plastic compound is used for manufacturing the water stoppers. Alongside, it has PVC as a base polymer. Moreover, the properties it exhibit are high elasticity and tensile strength, immunity to corrosion, excellent weather resistance, unaffected by acids, alkalis, metals, salts and other chemicals. Other properties include lower water absorption, high hydrostatic pressure withstanding capacity, heavy turbine shock bearing alongside earthquakes and floods. Application in construction industry The PVC water stopper acts as a sealant at RCC Masonry concrete joints alongside preventing any water seepage through the joints.

Material
Poly Vinyl Chaloride

Type
Center Bulb

Size
150,200x230,240,250 and 300

Product Type
Center Bulb

Color
Black

Application
RCC Construction

Hardness
65 Shore A min.

PVC Water Stopper With Centre Bulb 230 x 6 mm Trade Information

Minimum Order Quantity
500 Meter

Supply Ability
1000 Per Day

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
Export Packing Date:02.09.2023 Dimension in CBM PVC Water Stopper with Center Bulb Each Roll 25Mtr SR No Dimension Length Width Height CBM Weight kg/Roll 1 150x5mm 0.625 0.625 0.150 0.059 40 2 150x6mm 0.625 0.625 0.150 0.059 45 3 150x8mm 0.625 0.625 0.150 0.059 55 4 200x8mm 0.625 0.625 0.200 0.059 60 5 200x10mm 0.65 0.65 0.200 0.078 64 6 225x5mm 0.625 0.625 0.23 0.090 65 7 225x6mm 0.625 0.625 0.230 0.090 70 8 225x8mm 0.65 0.65 0.230 0.097 90 9 225x10mm 0.65 0.65 0.230 0.097 100 10 240x8mm 0.65 0.650 0.240 0.104 110 11 240x10mm 0.650 0.650 0.240 0.104 125 12 250x8mm 0.675 0.675 0.250 0.114 95 13 250x10mm 0.675 0.675 0.250 0.114 115 14 300x6mm 0.700 0.700 0.300 0.147 95 15 300x8mm 0.725 0..725 0.300 0.158 115 16 300x10mm 0.750 0.750 0.300 0.169 140 17 300x12mm 0.775 0.775 0.300 0.18 140 18 300x15mm 0.800 0.800 0.300 0.192 160 Kiker Type 19 230x4mm 0.625 0.625 0.230 0.090 67 Dumbbell Type 20 230x8mm 0.650 0.650 0.230 0.097 87 21 230x10mm 0.650 0.650 0.230 0.097 100

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO 9001 2015

About PVC Water Stopper With Centre Bulb 230 x 6 mm

Sandhya Enterprises are one of the top manufacturers in India. Water Stoppers are the flexible plastic strips that are used to provide a physical barrier to water. The barriers can be at concrete joints in basements, water-retaining structures like water tanks, swimming pools, structural foundations and other constructions of below ground level. Water stoppers are also known as water bars and seal construction joints. In a typical water stopper, there are two identical halves on both sides of the central bulb. They serve as an additional extension aiming to increase the path length for water entering behind the edge of water stopper.

Compounding of PVC Water Stopper

Anti-ageing customized plastic compound is used for manufacturing the water stoppers. Alongside, it has PVC as a base polymer. Moreover, the properties it exhibit are high elasticity and tensile strength, immunity to corrosion, excellent weather resistance, unaffected by acids, alkalis, metals, salts and other chemicals. Other properties include lower water absorption, high hydrostatic pressure withstanding capacity, heavy turbine shock bearing alongside earthquakes and floods.

Application in construction industry

The PVC water stopper acts as a sealant at RCC Masonry concrete joints alongside preventing any water seepage through the joints.

Superior Waterproofing for Construction Joints

The PVC Water Stopper with Centre Bulb provides vital waterproofing at concrete joints in structures like basements, swimming pools, water tanks, and foundations. Its unique centre bulb design increases the effective length water must travel, maximizing leakage prevention. This makes it especially suitable for water-retaining and underground constructions where robust water barriers are essential.

Exceptional Durability and Chemical Resistance

Crafted using an anti-ageing plastic compound with PVC as the base polymer, this stopper resists acids, alkalis, salts, and a range of other chemicals. Its high elasticity and tensile strength enable it to withstand substantial hydrostatic pressures, heavy shocks, and even seismic events, ensuring long-lasting performance in demanding construction environments.

FAQ's of PVC Water Stopper With Centre Bulb 230 x 6 mm:

Q: How is a PVC Water Stopper with centre bulb installed in RCC construction?

A: A PVC Water Stopper with a centre bulb is installed during the concreting process at joints, such as expansion and construction joints. It is anchored into the formwork so that half of the stopper is embedded in the first concrete pour and the other half is secured when the subsequent section of concrete is cast. This placement ensures a continuous water barrier.

Q: What sizes are available for the PVC Water Stopper with centre bulb?

A: This water stopper is available in multiple sizes, including 150 mm, 200 mm, 230 mm, 240 mm, 250 mm, and 300 mm, with a thickness of 6 mm. Such variety allows for flexibility in application, depending on the specific width and requirements of the construction joint.

Q: Where can this product be used in construction projects?

A: The PVC Water Stopper with centre bulb is extensively used in water-retaining structures like water tanks, swimming pools, basements, retaining walls, and below-ground constructions. It is particularly useful for sealing joints to prevent water seepage in RCC structures.

Q: What benefits does the centre bulb design provide?

A: The centre bulb acts as an expansion joint, absorbing movement and deformation that may occur due to settlement, temperature changes, or seismic activity. It also increases the effective path for water attempting to seep through, thus enhancing waterproofing performance.

Q: What materials and properties make this stopper suitable for harsh environments?

A: Made from Poly Vinyl Chloride with a customized anti-ageing compound, the stopper exhibits high elasticity, tensile strength, and resistance to corrosion. It remains unaffected by acids, salts, alkalis, and various chemicals-making it ideal for challenging construction conditions.

Q: How can one benefit from using PVC water stoppers from Sandhya Enterprises?

A: Clients benefit from reliable quality, tailor-fit sizing, and proven performance. Sandhya Enterprises' stoppers are durable, easy to install, and provide a cost-effective solution for watertight construction joints, reducing the risk of structural water damage.
