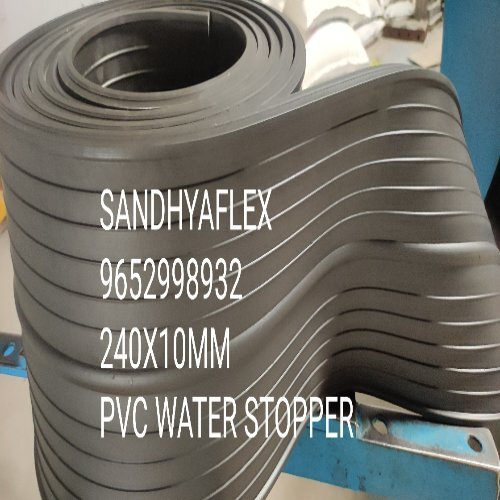

PVC Water Stopper 240x10mm

Price 200 INR/ Meter

Get a Price/Quote

PVC Water Stopper 240x10mm Specification

Usage
The PVC water stopper acts as a sealant at RCC Masonry concrete joints alongside preventing any water seepage through the joints.

Material
Poly Vinyl Chaloride

Size
150,200x230,240,250 and 300

Type
Center Bulb

Product Type
Center Bulb

Application
The PVC water stoppers can withstand expansion or contraction movements at the joints. Also, they can effectively take care of displacement or deflection that arises due to temperature, differential settlement of foundations and geo disturbances causing seismic forces such as earthquakes. This eliminates any risk of cracks.

Color
Black, White and Blue

Hardness
68 Shore A

PVC Water Stopper 240x10mm Trade Information

Minimum Order Quantity
100 Meter

Supply Ability
2000 Per Day

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Export Packing Date:02.09.2023 Dimension in CBM PVC Water Stopper with Center Bulb Each Roll 25Mtr SR No Dimension Length Width Height CBM Weight kg/Roll 1 150x5mm 0.625 0.625 0.150 0.059 40 2 150x6mm 0.625 0.625 0.150 0.059 45 3 150x8mm 0.625 0.625 0.150 0.059 55 4 200x8mm 0.625 0.625 0.200 0.059 60 5 200x10mm 0.65 0.65 0.200 0.078 64 6 225x5mm 0.625 0.625 0.23 0.090 65 7 225x6mm 0.625 0.625 0.230 0.090 70 8 225x8mm 0.65 0.65 0.230 0.097 90 9 225x10mm 0.65 0.65 0.230 0.097 100 10 240x8mm 0.65 0.650 0.240 0.104 110 11 240x10mm 0.650 0.650 0.240 0.104 125 12 250x8mm 0.675 0.675 0.250 0.114 95 13 250x10mm 0.675 0.675 0.250 0.114 115 14 300x6mm 0.700 0.700 0.300 0.147 95 15 300x8mm 0.725 0..725 0.300 0.158 115 16 300x10mm 0.750 0.750 0.300 0.169 140 17 300x12mm 0.775 0.775 0.300 0.18 140 18 300x15mm 0.800 0.800 0.300 0.192 160 Kiker Type 19 230x4mm 0.625 0.625 0.230 0.090 67 Dumbbell Type 20 230x8mm 0.650 0.650 0.230 0.097 87 21 230x10mm 0.650 0.650 0.230 0.097 100

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO 9001 2015

About PVC Water Stopper 240x10mm

"SANDHYAFLEX" manufacturer of PVC Water Stopper with Center Bulb

size:150x5mm

150x6mm

150x8mm

150x10mm

200x6mm

200x8mm

200x10mm

230x5mm

230x6mm

230x8mm

230x10mm

240x8mm

240x10mm

250x8mm

250x10mm

300x6mm

300x8mm

300x10mm

300x12mm

300x15mm

Color Black ,White and Blue

A PVC water stopper is a type of construction material used to prevent the passage of water through joints or gaps in structures such as concrete walls, floors, or basements. It is commonly used in applications where water leakage needs to be controlled or prevented, such as in swimming pools, water tanks, tunnels, or underground structures.

PVC water stoppers are made from polyvinyl chloride (PVC), a durable and flexible plastic material. They are designed in various shapes and sizes to accommodate different joint configurations and construction requirements. The most common types of PVC water stoppers include:

1. Straight Water Stopper: This type of water stopper is used in straight joints or construction joints where two concrete sections meet. It provides a barrier against water infiltration.

2. Internal and External Corners: These water stoppers are specifically designed to fit into the internal and external corners of joints, ensuring a watertight seal at these critical areas.

3. Bulb-Type Water Stopper: This water stopper features a bulbous shape that provides additional flexibility and sealing capacity. It is suitable for applications where joints are subject to movement or expansion.

4. Ribbed Water Stopper: Ribbed water stoppers have a ribbed surface that enhances the grip and bonding with concrete. This type of water stopper offers excellent sealing capabilities and is commonly used in high-pressure water applications.

PVC water stoppers are typically installed during the concrete pouring process. They are embedded within the joints, ensuring a secure and watertight seal. The flexibility of PVC allows the water stopper to accommodate movement or settling of the surrounding structures without compromising its sealing properties.

It is important to follow the manufacturer's guidelines and consult with a qualified engineer or contractor for the appropriate selection and installation of PVC water stoppers based on the specific project requirements.

Reliable Joint Protection for Concrete Structures

The PVC water stopper acts as a secure sealant within joints of RCC masonry and concrete, protecting against water ingress and structural damage. Its specialized design ensures resilience to expansion, contraction, and environmental disturbances, maintaining structural integrity even under challenging conditions.

Versatile and Durable Material

Crafted from high-quality Poly Vinyl Chloride, this water stopper boasts durability and the flexibility needed for long-lasting performance. Its center bulb profile manages seismic and settlement movements while maintaining a dependable seal. With available color and size variations, it adapts effectively to different construction demands.

FAQ's of PVC Water Stopper 240x10mm:

Q: How does the PVC water stopper function in construction joints?

A: The PVC water stopper acts as a sealant at RCC masonry and concrete joints by preventing water seepage and accommodating movements such as expansion, contraction, or displacement. Its center bulb design helps absorb forces from settlement or seismic activities, minimizing the risk of cracks or leaks.

Q: What is the process of installing the PVC water stopper?

A: Installation typically involves embedding the water stopper at the specified joint position during concreting. It is fixed in the center of the joint, allowing movement while maintaining a continuous barrier against water passage. Ensuring proper placement during construction is critical for optimum performance.

Q: When should a PVC water stopper be used in a construction project?

A: A PVC water stopper is recommended whenever there are construction joints in RCC masonry or concrete structures where water ingress or joint movement is a concern. This includes foundations, basements, water tanks, and other below-grade structures.

Q: Where can I source PVC water stoppers in India?

A: PVC water stoppers of various sizes and colors can be sourced from dealers, fabricators, manufacturers, suppliers, traders, wholesalers, and retailers across India, catering to diverse construction requirements.

Q: What are the main benefits of using a 240x10mm PVC water stopper?

A: The 240x10mm PVC water stopper ensures robust sealing for expansion and contraction joints, enhancing durability and reducing maintenance needs. It safeguards structures against water leakage, settlement movement, and seismic impact, promoting long-term structural integrity.

Q: What color and size options are available for the PVC water stopper?

A: PVC water stoppers are available in assorted sizes such as 150, 200, 230, 240, 250, and 300 mm, and come in black, white, and blue colors to match various project specifications.
