Send InquiryPVC Water Stopper
Price 140.0 INR/ Meter
PVC Water Stopper Specification
- Usage
- Construction
- Material
- Polyvinyl Chloride (PVC)
- Type
- Water Stopper
- Size
- 150x8mm
- Height
- 150 Millimeter (mm)
- Thickness
- 8 Meter
- Product Type
- Kicker
- Weight
- 55 Kilograms (kg)
- Application
- Concrete construction joints, Expansion joints, Water retaining structures
- Color
- Black
- Width
- 8 Millimeter (mm)
- Length
- 150 Millimeter (mm)
- Hardness
- 65 5 Shore A
- Surface Treatment
- Smooth
- Feature
- Ageing Resistant, Oil Proof
- Usage
- Concrete Sealing, Civil Engineering Projects
- Tensile Strength
- 13 MPa
- Density
- 1.38-1.45 g/cm3
- Standards
- IS 15058/ISO 9001:2015
- Color
- Blue
- Installation
- Centrally and Externally placed in construction joints
- Length
- 10 m / Roll
- Elongation at Break
- 250% Min
- Temperature Resistance
- -15C to 60C
- Width Range
- 150 mm - 300 mm
PVC Water Stopper Trade Information
- Minimum Order Quantity
- 10 Meter
- Delivery Time
- 3 Days
About PVC Water Stopper

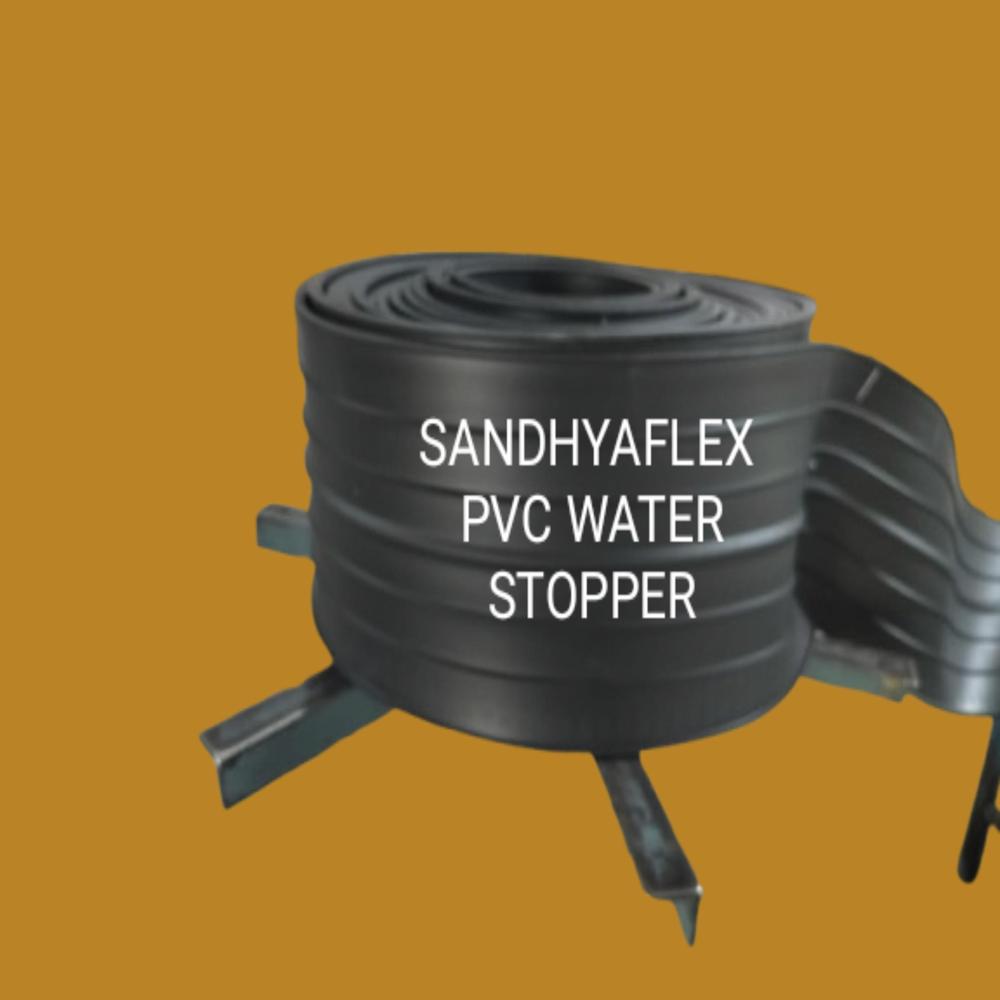

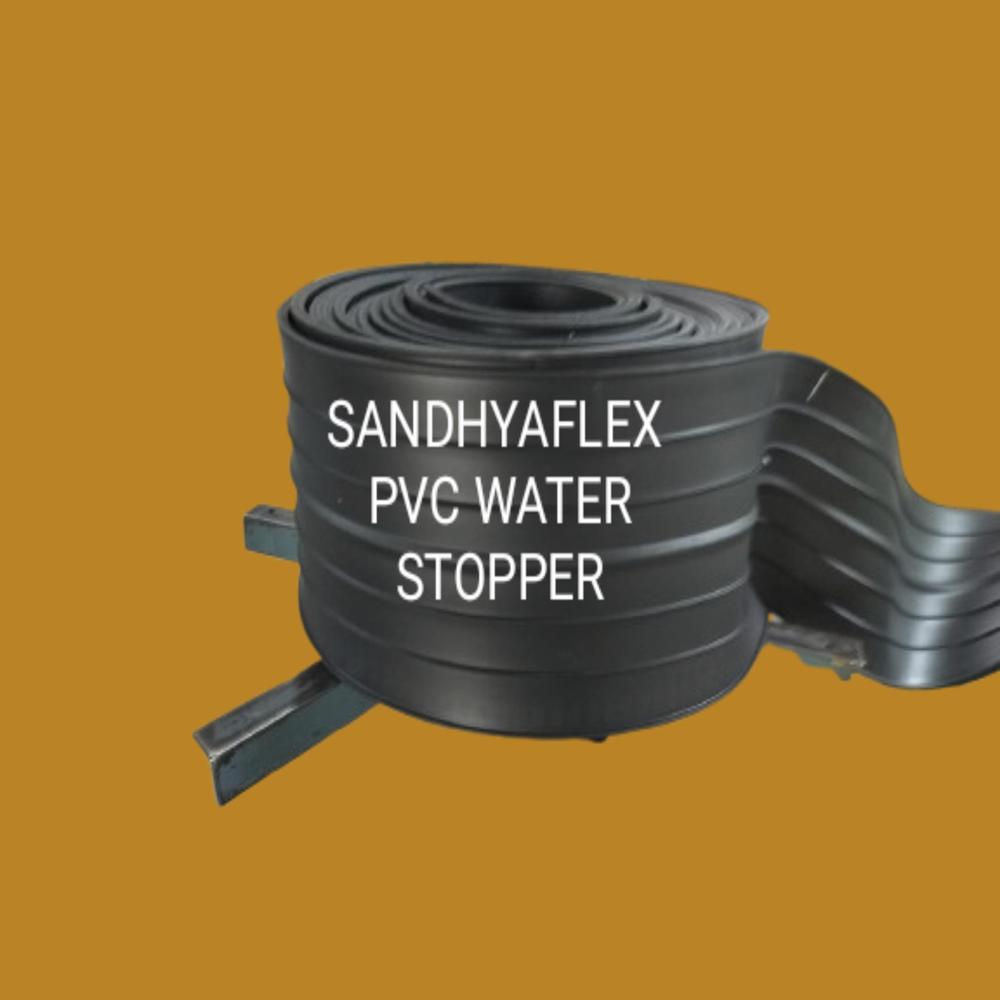

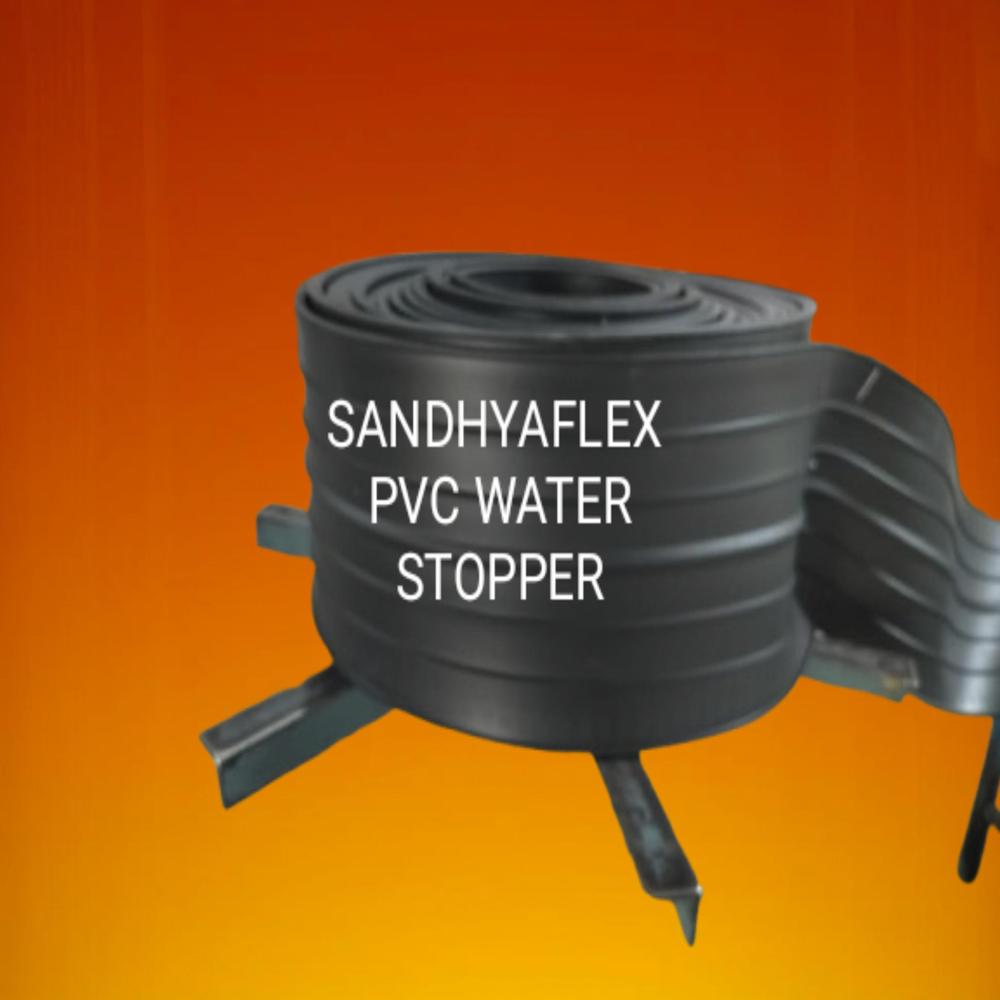

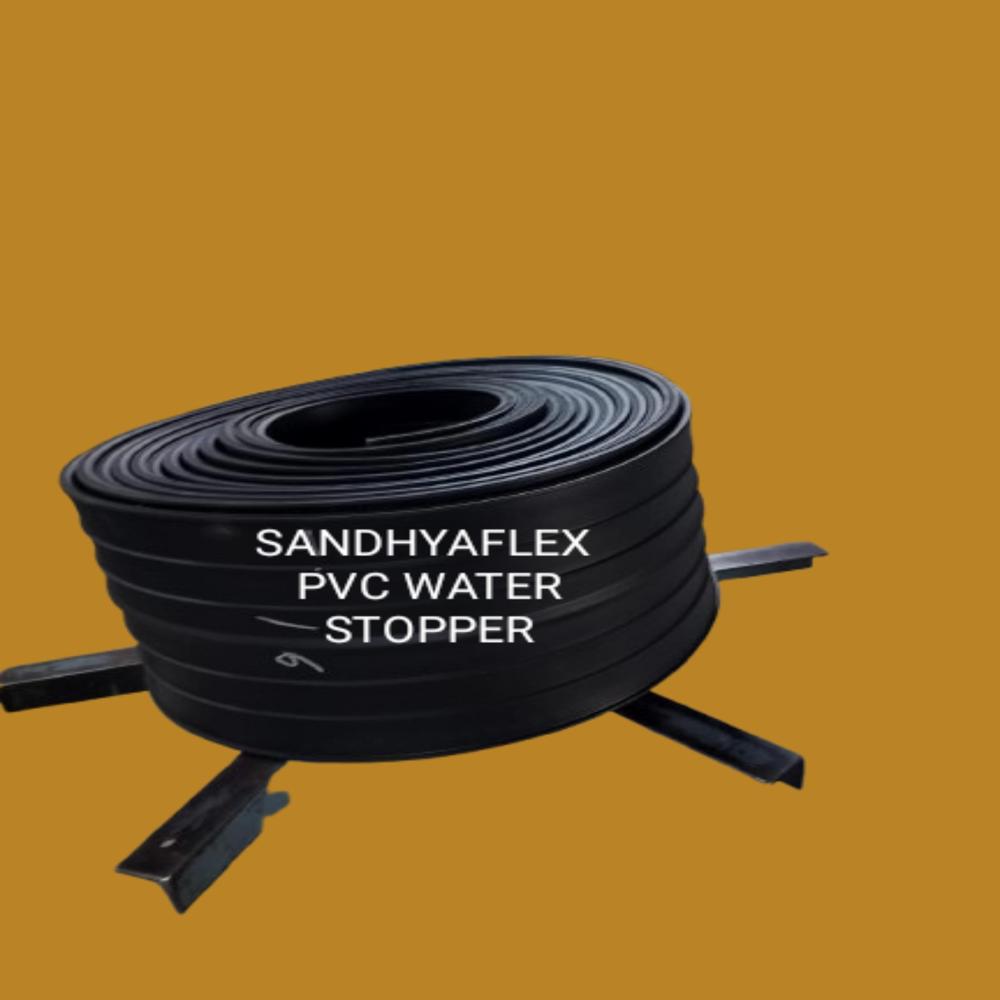

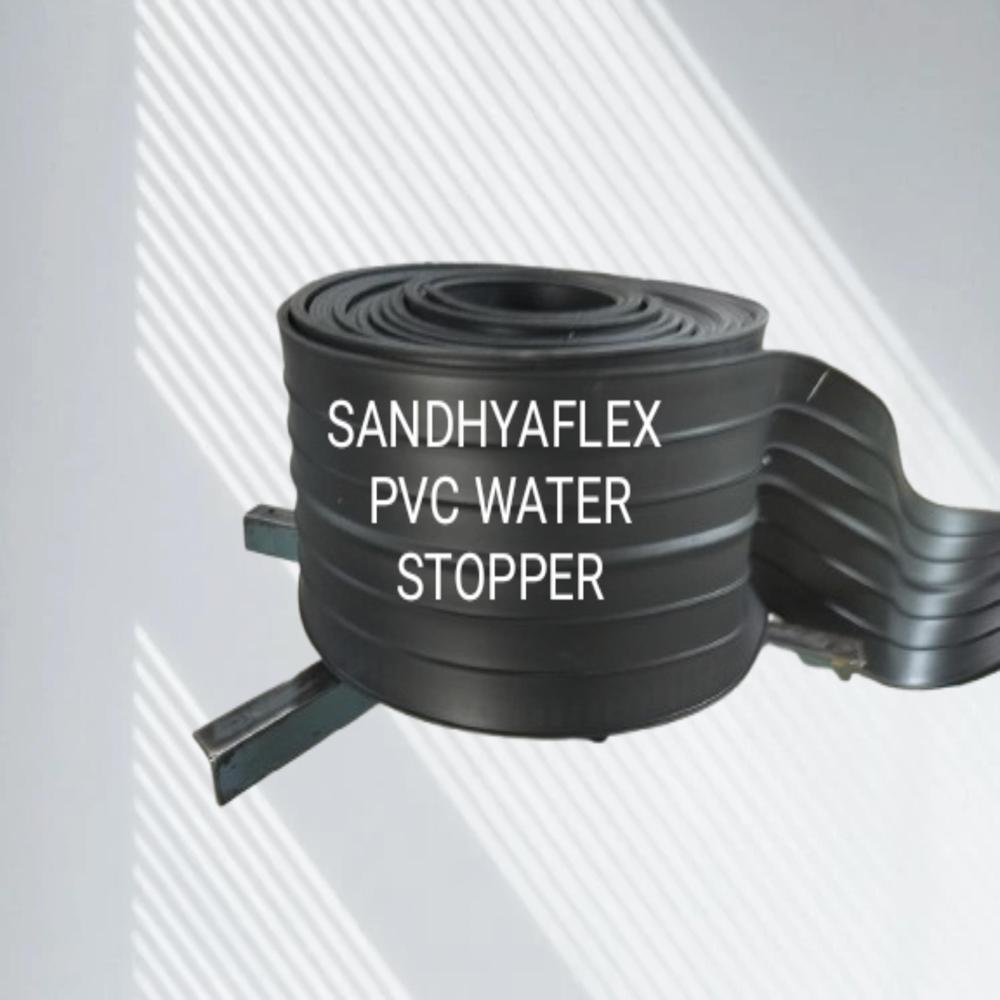

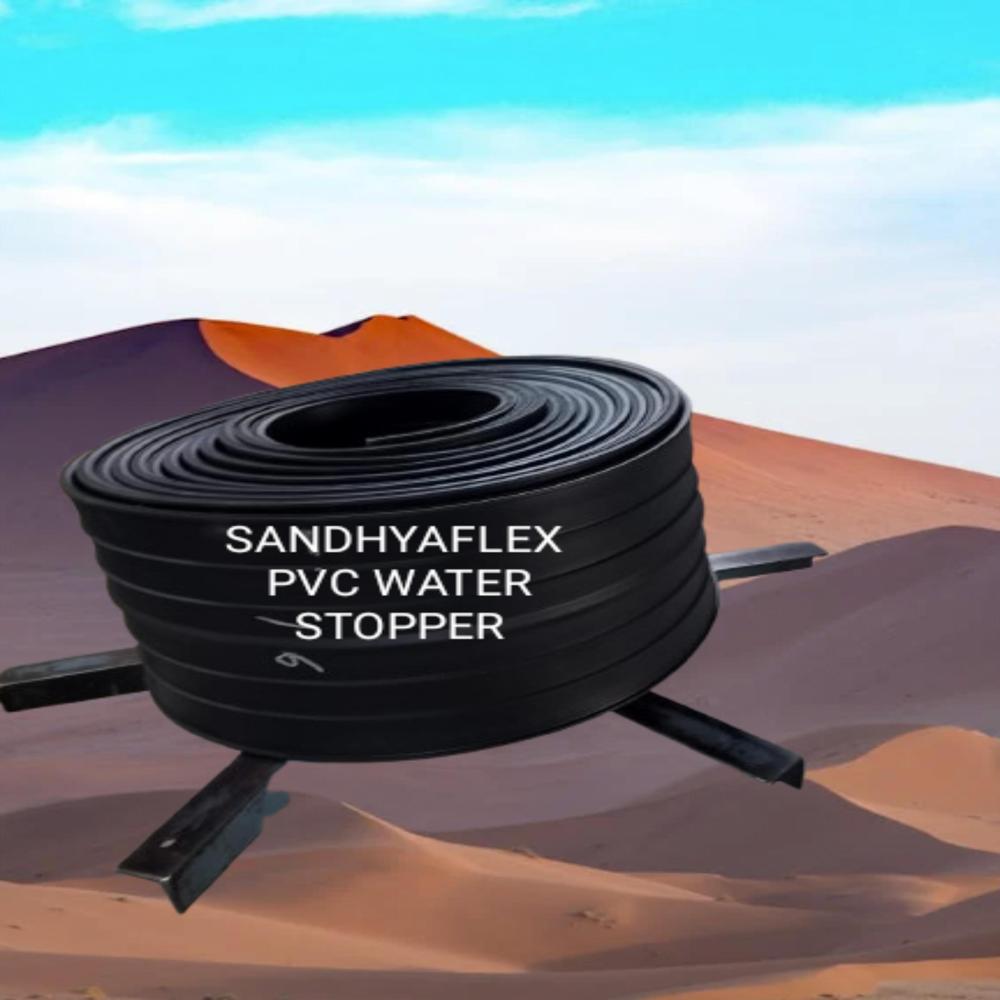

SANDHYAFLEX PVC Water Stopper
SANDHYAFLEX PVC Water Stopper is a high-performance sealing strip used in construction to prevent water leakage through concrete joints. It acts as a watertight barrier in structures exposed to water pressure like tanks, dams, and basements. (sandhyaflexrubber.com)
What is PVC Water Stopper?
It is a flexible PVC (Polyvinyl Chloride) strip embedded inside concrete joints to stop water seepage.
-
Also known as Water Bar
-
Installed during concreting stage
-
Creates a continuous waterproof seal across joints (sandhyaflexrubber.com)
Key Features of SANDHYAFLEX
-
High Elasticity & Strength adjusts with concrete movement
-
Waterproof & Leak-Proof
-
Corrosion & Chemical Resistant
-
Withstands Hydrostatic Pressure
-
Long Life & Durable Material
-
Resistant to weather, acids, alkalis & salts (sandhyaflexrubber.com)
Technical Specifications (Typical)
-
Material: PVC
-
Hardness: 6068 Shore A
-
Sizes: 150 mm, 230 mm, 300 mm (widths)
-
Thickness: 3 mm to 10 mm
-
Color: Black / Blue / White
-
Pressure Capacity: Up to 10 Bar
-
Standard: Suitable for RCC structures (sandhyaflex.in)
Types of SANDHYAFLEX PVC Water Stopper
-
Center Bulb Type
-
Used in expansion joints
-
Absorbs movement (expansion & contraction)
-
-
Dumbbell Type
-
Ideal for construction joints
-
Handles temperature variation
-
-
Ribbed Type
-
Better grip inside concrete
-
Used in heavy structures
-
-
Kicker (Surface) Type
-
Used where embedding is difficult
-
Installed externally (sandhyaflexrubber.com)
-
Applications
-
Water Tanks & Reservoirs
-
Dams & Canals
-
Basements & Foundations
-
Tunnels & Sewage Plants
-
Bridges & Retaining Walls
-
Swimming Pools & STP Plants (sandhyaflexrubber.com)
Working Principle
-
Installed at concrete joints
-
Embedded partially in first concrete pour
-
Remaining part embedded in second pour
-
Central bulb allows movement, preventing cracks
-
Blocks water path ensures zero leakage (sandhyaflexrubber.com)
Price Range (Approx.)
-
60 to 500 per meter (depends on size & type) (sandhyaflex.in)
Why Use SANDHYAFLEX PVC Water Stopper?
-
Prevents water seepage & structural damage
-
Improves life of concrete structures
-
Essential for water-retaining & underground projects
-
Cost-effective long-term waterproofing solution
If you want, I can create:
-
Comparison with Rubber Water Stopper
-
AutoCAD drawing / design
-
High-converting product video script for your brand
Superior Sealing for Water-Retaining Structures
PVC Water Stopper provides robust sealing for construction and expansion joints, ensuring no water seepage in concrete structures. Manufactured to stringent IS 15058 and ISO 9001:2015 standards, it resists harsh chemicals and environmental wear, making it a reliable solution for civil engineering projects like reservoirs, dams, and basements. Its flexibility and durability prevent leakage, extending the lifespan of your concrete installations.
Optimal Flexibility and Strength
With a tensile strength of 13 MPa and an elongation at break of at least 250%, this water stopper delivers excellent performance under pressure and movement. Its Shore A hardness of 65 5 ensures a fine balance of flexibility and solidity, adapting to structural expansion and contraction without compromising on integrity. This flexibility, combined with chemical resistance, makes it indispensable for demanding construction environments.
FAQ's of PVC Water Stopper:
Q: How is the PVC Water Stopper installed in construction joints?
A: The PVC Water Stopper can be installed either centrally or externally within concrete construction joints. It is positioned before concrete is poured, creating a continuous waterproof barrier that blocks any potential water seepage along the joint lines.Q: What benefits does using a blue PVC Water Stopper provide for civil engineering projects?
A: Using this water stopper ensures reliable sealing of construction and expansion joints, preventing water ingress and resisting chemicals. Its durability and flexibility make it suitable for harsh environments, extending the lifespan of concrete structures and reducing maintenance needs.Q: Where can this water stopper be applied?
A: This product is ideal for a variety of concrete sealing applications, including water retaining structures, basements, tunnels, reservoirs, tanks, and dams. It is commonly used in civil engineering projects that require robust and reliable joint sealing.Q: What makes this PVC Water Stopper resistant to chemicals and corrosion?
A: The water stopper is manufactured from high-grade polyvinyl chloride (PVC), known for its chemical stability and corrosion resistance. This material selection ensures dependable performance even when exposed to aggressive substances or fluctuating environmental conditions.Q: When should this water stopper be used during construction?
A: It should be installed at the time of creating construction or expansion joints, prior to concrete pouring. Early installation ensures seamless integration with the concrete, providing a long-lasting and effective waterproof barrier.Q: What is the typical process for using this product in civil construction?
A: The process involves unrolling and placing the stopper in the designated joint area, securing it to reinforcement if necessary, and then pouring concrete around it. This ensures the water stopper is embedded and delivers optimal sealing performance.
