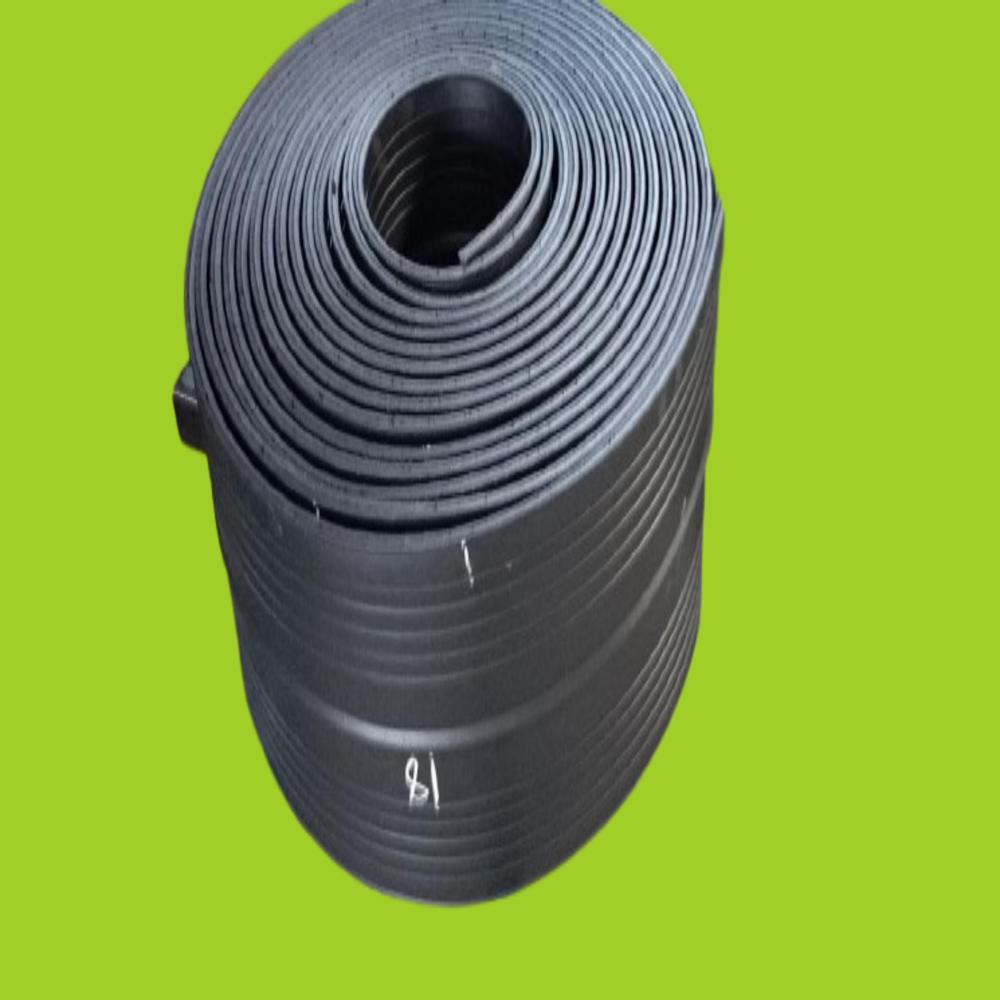

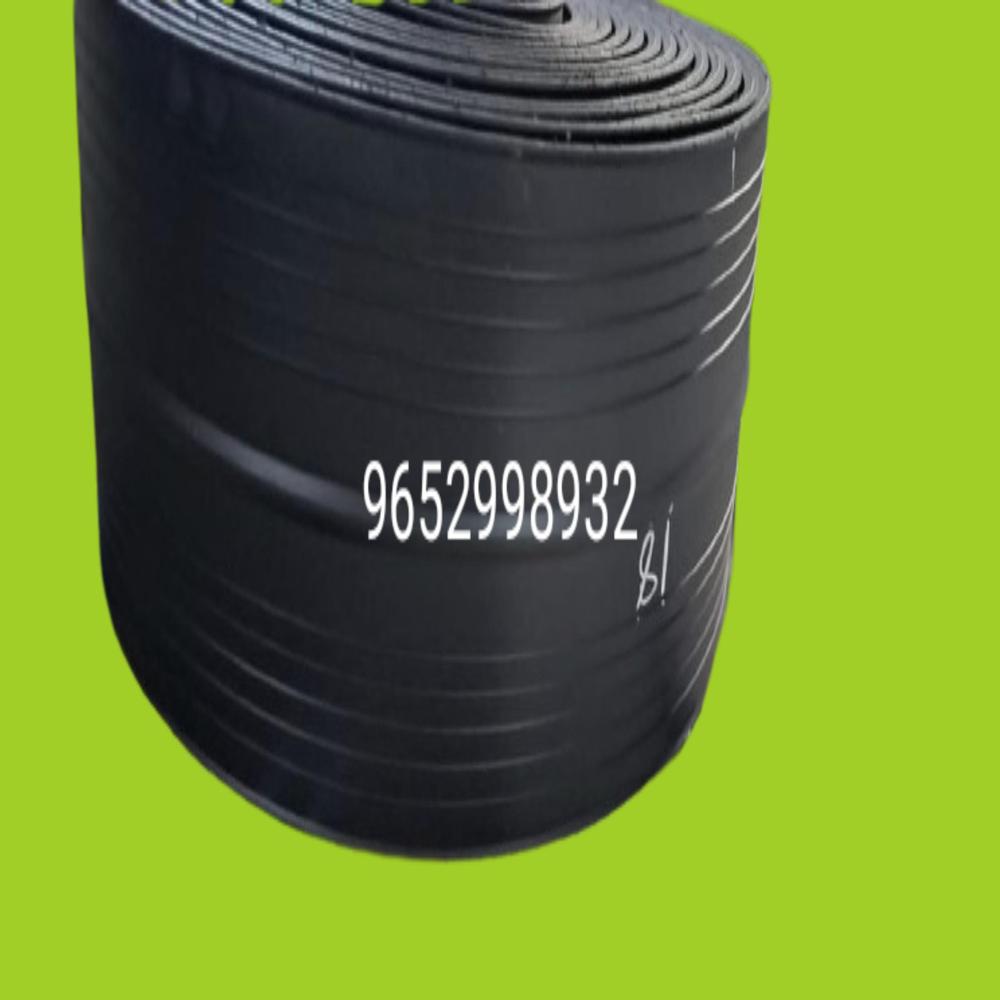

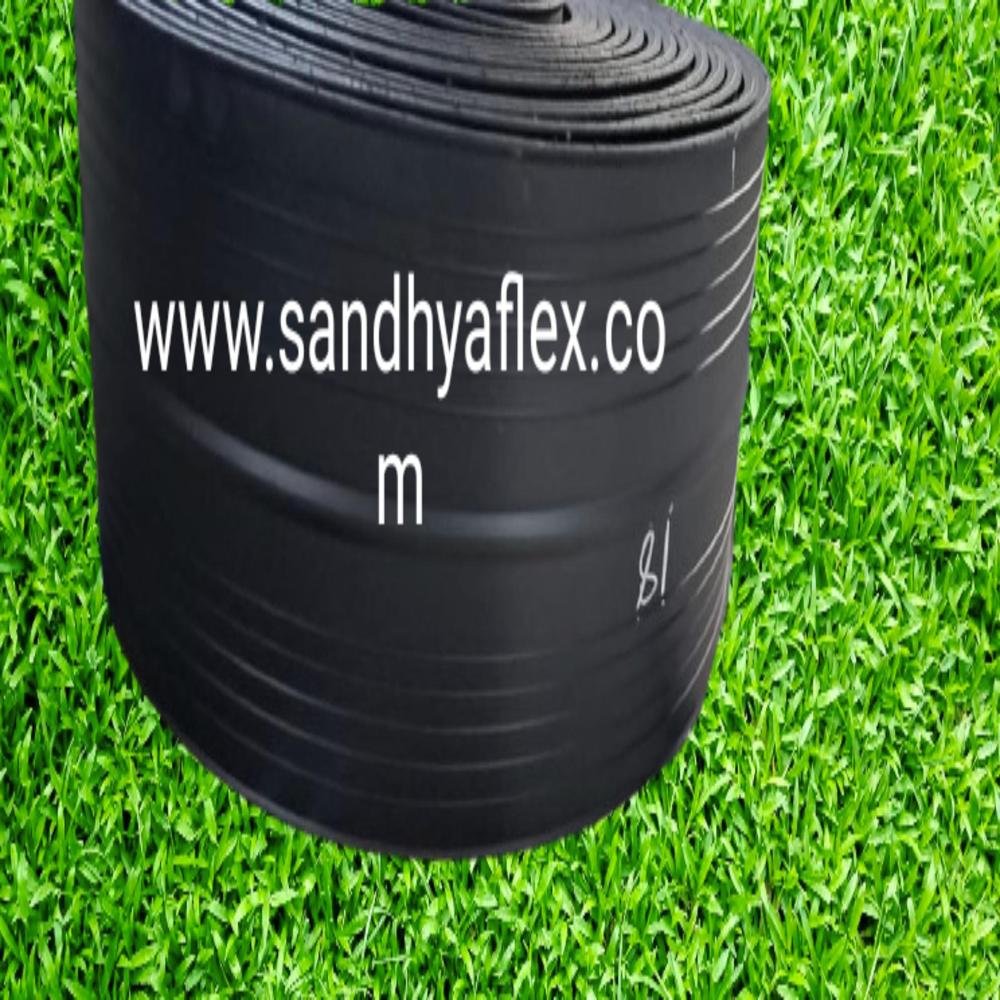

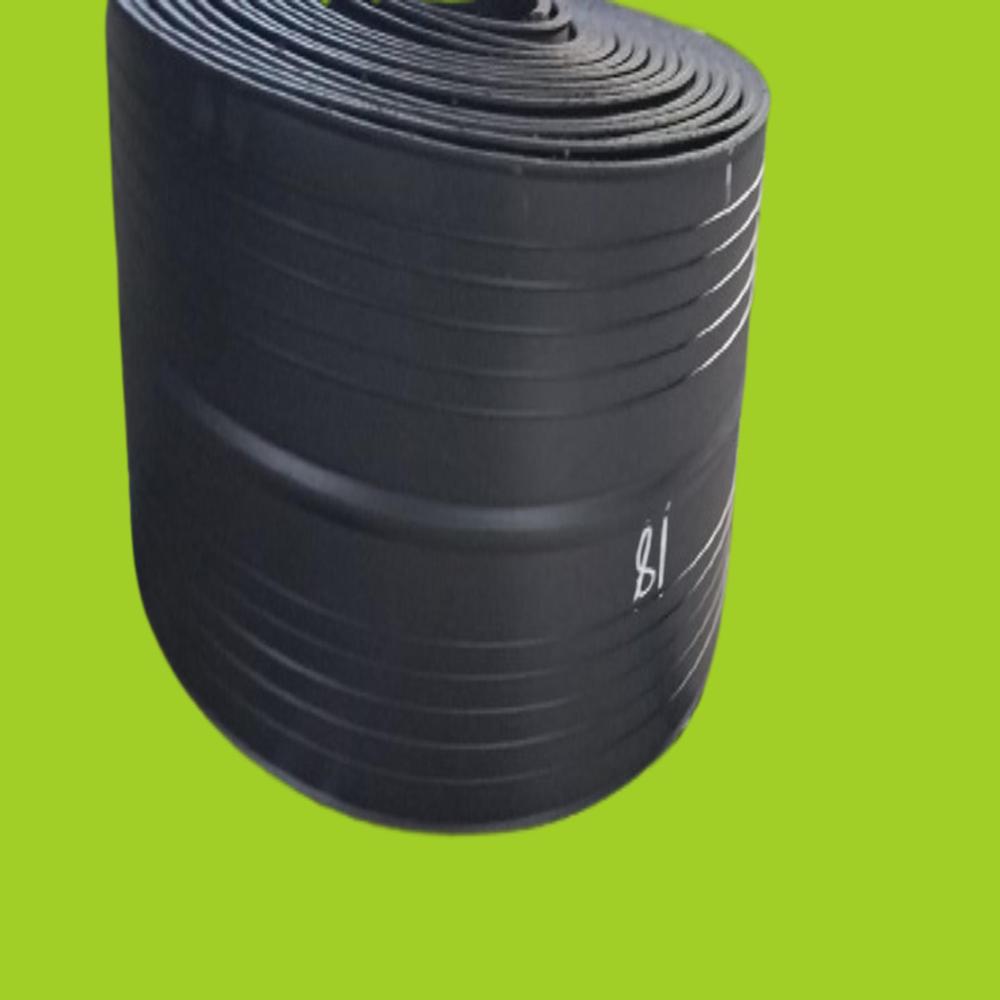

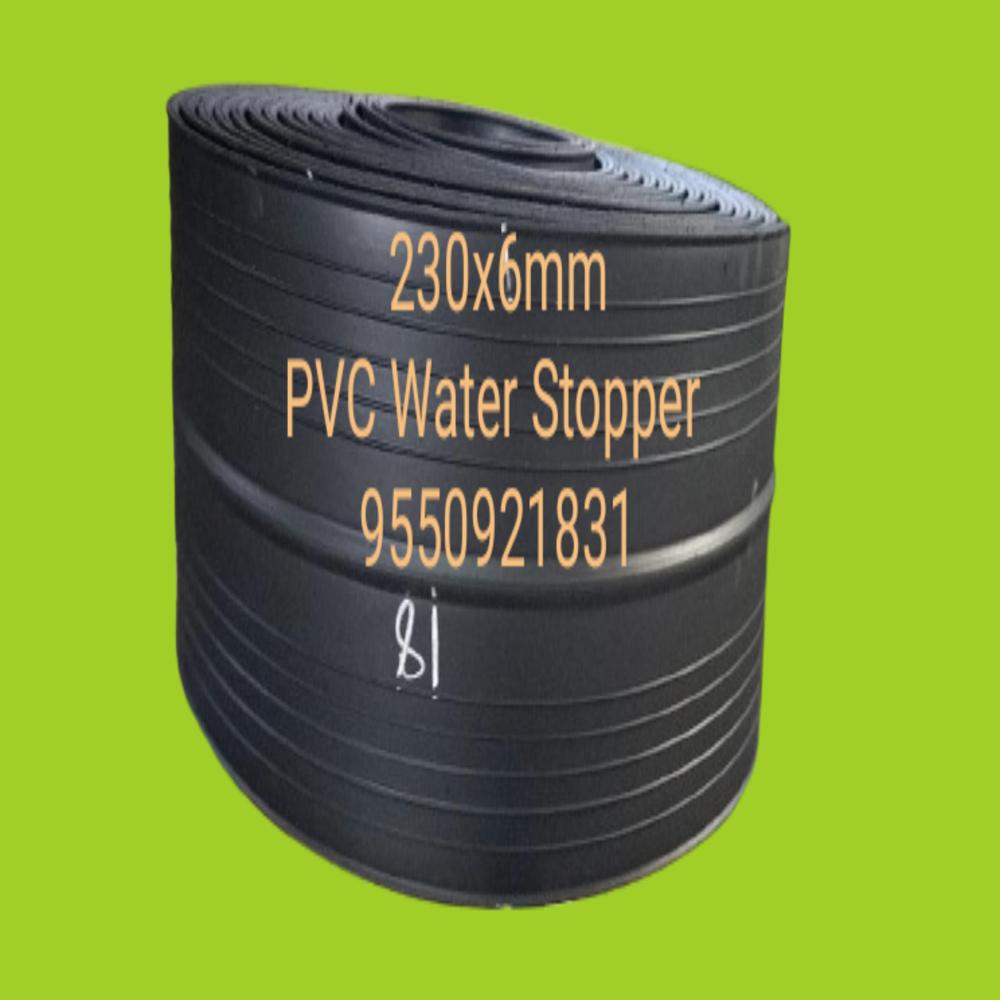

PVC water stopper

Price 80.0 INR/ Meter

Get a Price/Quote
MOQ : 1 Meter

PVC water stopper Specification

  • Material
  • Polyvinyl Chloride (PVC)
  • Type
  • Water Stopper
  • Thickness
  • 6 mm
  • Application
  • Concrete Construction Joints, Expansion Joints, Water Retaining Structures
  • Hardness
  • 655 Shore A
  • Surface Treatment
  • Smooth
  • Feature
  • Flexible, High Strength, Waterproof
  • Color
  • Blue
  • Usage
  • Prevents water leakage in concrete structures
  • Pattern
  • Ribbed
  • Length
  • Standard 25 m Roll
  • Elongation at Break
  • 250%
  • Compliance Standards
  • IS: 15058:2002
  • Tensile Strength
  • 13 N/mm
  • Width
  • 150 mm
  • Working Temperature Range
  • -25C to +70C


PVC water stopper Trade Information

  • Minimum Order Quantity
  • 1 Meter
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 5000 Per Day
  • Delivery Time
  • 2 Days
  • Sample Available
  • No
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Export Packing Dimension in CBM PVC Water Stopper with Center Bulb Each Roll 25Mtr SR No Dimension Length Width Height CBM Weight kg/Roll 1 150x5mm 0.625 0.625 0.150 0.059 40 2 150x6mm 0.625 0.625 0.150 0.059 45 3 150x8mm 0.625 0.625 0.150 0.059 55 4 200x8mm 0.625 0.625 0.200 0.059 70 5 200x10mm 0.65 0.65 0.200 0.078 80 6 225x5mm 0.625 0.625 0.23 0.090 65 7 225x6mm 0.625 0.625 0.230 0.090 70 8 225x8mm 0.65 0.65 0.230 0.097 90 9 225x10mm 0.65 0.65 0.230 0.097 100 10 240x8mm 0.65 0.650 0.240 0.104 110 11 240x10mm 0.650 0.650 0.240 0.104 125 12 250x8mm 0.675 0.675 0.250 0.114 95 s13 250x10mm 0.675 0.675 0.250 0.114 115 14 300x6mm 0.700 0.700 0.300 0.147 95 15 300x8mm 0.725 0..725 0.300 0.158 115 16 300x10mm 0.750 0.750 0.300 0.169 145 17 300x12mm 0.775 0.775 0.300 0.18 140 18 300x15mm 0.800 0.800 0.300 0.192 160 Kiker Type 19 230x4mm 0.625 0.625 0.230 0.090 67 Dumbbell Type 20 230x8mm 0.650 0.650 0.230 0.097 87 21 230x10mm 0.650 0.650 0.230 0.097 100
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 2015


About PVC water stopper

A PVC Water Stopper is a critical component used in concrete structures to prevent water leakage through construction joints, expansion joints, and contraction joints. Here's a comprehensive overview:

PVC Water Stopper Overview

Definition:
A PVC Water Stopper is a flexible strip of specially formulated polyvinyl chloride (PVC) used in concrete construction joints to block the passage of water. It is embedded in concrete during pouring to form a continuous barrier.

Key Features

  • High Tensile Strength Withstands heavy concrete pressure.

  • Excellent Water Resistance Prevents leakage in water-retaining structures.

  • Flexible & Durable Accommodates joint movements.

  • Chemical Resistant Withstands acids, alkalis, and other harsh chemicals.

  • Corrosion Free Long life without rusting or degradation.

  • Easy to Weld On-Site Ensures continuity even in complex structures.

Available Sizes & Types

Type Description
Center Bulb For expansion joints; absorbs movement.
Dumbbell For construction joints; provides solid sealing.
Ribbed Extra grip with concrete; prevents displacement.
Kicker Type Used in vertical joints or kicker sections.

Standard Widths: 150mm, 230mm, 305mm, etc.
Thickness: Typically 5mm 10mm

Applications

  • Water Retaining Structures (Dams, Water Tanks, Canals)

  • Underground Structures (Basements, Tunnels, Foundations)

  • Bridges & Culverts

  • Sewage Treatment Plants

  • Swimming Pools

Packing Details

  • Rolls of 25 meters

  • Wrapped with stretch film

  • Bundled in HDPE bags or cartons

Why Choose PVC Water Stopper?

  • Economical alternative to rubber water stoppers

  • Excellent UV and weather resistance

  • Ideal for both horizontal and vertical joints

  • Conforms to IS:15058/2002 standards

Would you like a product catalog design, high-impact marketing content, or image/video prompt for advertising this product?



Reliable Waterproofing Solution

Engineered for use in concrete construction and expansion joints, this PVC water stopper delivers flexibility, strength, and robust leak prevention. Its ribbed profile ensures tight sealing against water penetration, safeguarding structures such as water tanks and basements against moisture ingress.


Designed for Indian Standards

This product strictly complies with IS: 15058:2002, reflecting high-performance construction quality. Its design parameters-including wide operating temperature range and high elongation-make it suitable for the diverse climatic conditions found across India.

FAQ's of PVC water stopper:


Q: How is the PVC water stopper installed in concrete construction joints?

A: The PVC water stopper is placed centrally along construction or expansion joints while pouring concrete. It is embedded halfway into the concrete pour so that half remains on each side of the joint, creating a barrier that blocks water passage.

Q: What are the key benefits of using a ribbed PVC water stopper?

A: The ribbed profile enhances water-tightness by providing strong mechanical anchorage within the concrete, prevents leakage more effectively, and accommodates movements at expansion or construction joints, reducing maintenance costs over time.

Q: When should a PVC water stopper be used in construction?

A: Use a PVC water stopper wherever water retention or exclusion is critical, such as in the construction of basements, water tanks, swimming pools, water treatment plants, and other concrete structures with joints exposed to water pressure.

Q: Where can I source this PVC water stopper in India?

A: The product is available through a wide network of dealers, manufacturers, suppliers, traders, and wholesalers across India. Both fabricators and retailers offer 25-meter rolls to suit various project sizes.

Q: What is the process of quality compliance for this product?

A: Each water stopper is manufactured following IS: 15058:2002 standards, ensuring it meets stringent requirements for strength, elongation, durability, and water resistance. Regular quality checks during production uphold these specifications.

Q: Can this PVC water stopper withstand extreme temperatures?

A: Yes, with a working temperature range from -25C to +70C, this water stopper remains flexible and functional under a broad spectrum of environmental conditions, making it suitable for both hot and cold regions.

Q: What maintenance is required for the PVC water stopper after installation?

A: Typically, once correctly installed within the concrete joint, the water stopper requires minimal maintenance. Periodic inspections during joint checks are recommended to ensure integrity, especially in high-stress environments.

PVC water stopper
PVC water stopper
PVC water stopper
PVC water stopper
PVC water stopper
PVC water stopper
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in PVC Water Stopper Category

Dumbell Type PVC Water Stopper

Dumbell Type PVC Water Stopper

Price 100 INR / Meter

Minimum Order Quantity : 100

Material : Poly Vinyl Chaloride

Type : Dumbell Tyoe

Hardness : 65 Shore

Application : Selection of appropriate PVC water stopper Ribbed Type It has a multipurpose water stopper design to be used for the expected differential settlement of poured concrete and a firm concrete grip desired. Dumbbell Type With greater variation in temperature, expansion and contraction of joints happen. Dumbbell type water stoppers are the suggested ones for these cases. Kicker (Surface Type) Where the embedded types cannot be used owing to interference of steel reinforcement, these are placed externally. Installation procedure: During installation, using small wires, the water stoppers are tied to the steel framework through the eyelets. Also, certain metal clamps are used to grip the water stop seal and keep it in proper position. Initially, half of the water stopper is places in the concrete. It leaves the other half extended. Then, the other half is embedded that leaves the centre bulb free for expansion and contraction movements. Applications Of PVC Water Stoppers Public Utilities: For bridges, road embankments, tunnels, water tanks, water filtration systems, swimming pools, sewage plants, clarifiers, dams, canals, reservoirs, aqueducts and irrigation projects cooling towers. Buildings: For basements, foundations slabs, masonry joints, retaining walls, terraces, overhead & underground water tanks and Industries: For fertilizer steel, chemical plants, waste treatment plants, atomic reactors, thermal & hydro power stations and shipyard & docks. Precautions to take while water stopper installation They are vulnerable to damage during the construction process The concrete compaction around the water stopper should be taken care of. If not, it can dislocate and lead to a risk of honeycomb formation. This might result in leakage through concrete instead of the joint. Methods for joining PVC water stoppers with heater blade Water stoppers can be joined on the site using a simple electrical heater blade. Water bars having the same width and design should be sharply levelled with a knife at the Turn on the Electric Heater Blade. Wait till it becomes hot Place the water stopper on both sides of heater blade. Press it until it melts but without burning Remove the heater blade upward Join the molten ends quickly. Hold them together firmly for approximately 20 to 30 seconds.

Get a Price/Quote
Industrial Pvc Water Stopper 150*6

Industrial Pvc Water Stopper 150*6

Price 80.0 INR / Meter

Minimum Order Quantity : 1 Meter

Material : PVC (Polyvinyl Chloride)

Type : Industrial Water Stopper

Hardness : 6065 Shore A

Application : Construction Joints, Expansion Joints, Water Retaining Structures

Get a Price/Quote
300mm PVC water stopper

300mm PVC water stopper

Price 180.0 INR / Meter

Minimum Order Quantity : 1 Meter

Material : Polyvinyl Chloride (PVC)

Type : Expansion joint water stopper

Hardness : 65 5 Shore A

Application : Water proofing, Concrete construction joints, Dams, Basements

Get a Price/Quote
300mm PVC water Stopper

300mm PVC water Stopper

Price 300.0 INR / Meter

Minimum Order Quantity : 1 Meter

Material : PVC (Polyvinyl Chloride)

Type : Water Stopper

Hardness : 6065 Shore A

Application : Water Retaining Structures, Expansion and Construction Joints in Concrete

Get a Price/Quote
