Send Inquirypvc water stapper
Price 90.0 INR/ Meter
MOQ : 1 Meter
pvc water stapper Specification
- Material
- PVC
- Type
- Water Stopper
- Thickness
- 3-10 mm
- Application
- Construction Joints, Water Retaining Structures
- Hardness
- Rigid
- Surface Treatment
- Polished
- Feature
- Durable, Leak Proof, Water Resistant
- Elongation at Break
- >300%
- Shape
- Flat/Center Bulb/Ribbed
- Installation Method
- Embedded in concrete
- Temperature Resistance
- Up to 60°C
- Length
- Standard 15-20 meters
- Width
- 150-300 mm
- Tensile Strength
- 12-15 MPa
- Color
- Blue
pvc water stapper Trade Information
- Minimum Order Quantity
- 1 Meter
- Payment Terms
- [, C, ', a, s, h, , A, g, a, i, n, s, t, , D, e, l, i, v, e, r, y, , (, C, A, D, ), ', ]
- Packaging Details
- Export Packing Dimension in CBM PVC Water Stopper with Center Bulb Each Roll 25Mtr SR No Dimension Length Width Height CBM Weight kg/Roll 1 150x5mm 0.625 0.625 0.150 0.059 40 2 150x6mm 0.625 0.625 0.150 0.059 45 3 150x8mm 0.625 0.625 0.150 0.059 55 4 200x8mm 0.625 0.625 0.200 0.059 70 5 200x10mm 0.65 0.65 0.200 0.078 80 6 225x5mm 0.625 0.625 0.23 0.090 65 7 225x6mm 0.625 0.625 0.230 0.090 70 8 225x8mm 0.65 0.65 0.230 0.097 90 9 225x10mm 0.65 0.65 0.230 0.097 100 10 240x8mm 0.65 0.650 0.240 0.104 110 11 240x10mm 0.650 0.650 0.240 0.104 125 12 250x8mm 0.675 0.675 0.250 0.114 95 s13 250x10mm 0.675 0.675 0.250 0.114 115 14 300x6mm 0.700 0.700 0.300 0.147 95 15 300x8mm 0.725 0..725 0.300 0.158 115 16 300x10mm 0.750 0.750 0.300 0.169 145 17 300x12mm 0.775 0.775 0.300 0.18 140 18 300x15mm 0.800 0.800 0.300 0.192 160 Kiker Type 19 230x4mm 0.625 0.625 0.230 0.090 67 Dumbbell Type 20 230x8mm 0.650 0.650 0.230 0.097 87 21 230x10mm 0.650 0.650 0.230 0.097 100
- Main Domestic Market
- [, ', A, l, l, , I, n, d, i, a, ', ]
- Certifications
- ISO 9001 2015
About pvc water stapper
The SANDHYAFLEX 150x6mm PVC Water Stopper is a construction accessory used to prevent water leakage through construction joints in concrete structures. Below are its details:
Features:
-
Material:
- Made from high-grade PVC (Polyvinyl Chloride).
- Offers flexibility, durability, and resistance to chemicals and weathering.
-
Dimensions:
- Width: 150 mm.
- Thickness: 6 mm.
- Suitable for medium-duty applications in construction.
-
Design:

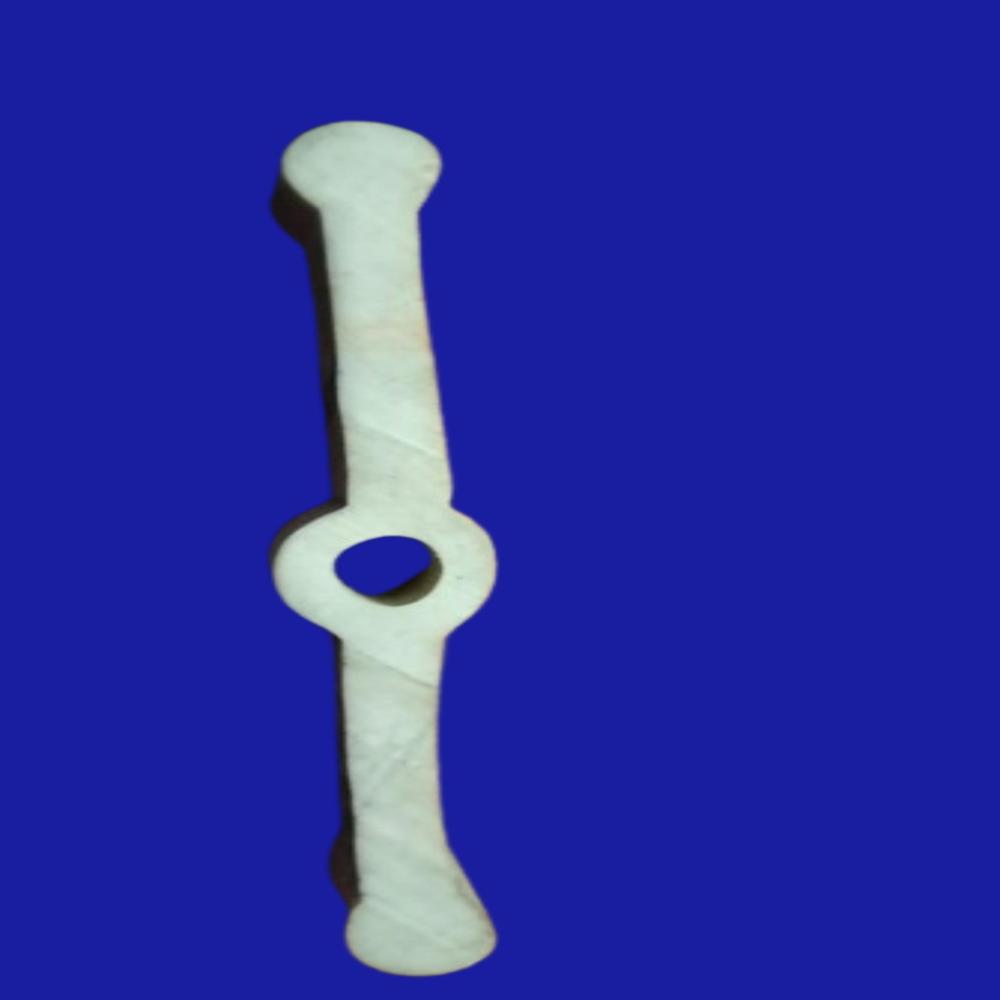

- Typically available in various profiles (dumbbell, ribbed, or central bulb).
- Ensures efficient sealing at joints by accommodating movement and pressure.
-
Applications:
- Used in construction joints, expansion joints, and isolation joints.
- Common in structures like:
- Water tanks.
- Dams.
- Canals.
- Retaining walls.
- Swimming pools.
- Basements.
-
Performance:
- Prevents water ingress or egress.
- Capable of withstanding hydrostatic pressure.
- Provides a long-term sealing solution in concrete structures.
-
Installation:
- Embedded in concrete during the pouring process.
- Positioned at the center of the joint to allow for expansion and contraction while maintaining a watertight seal.
Advantages:
- High flexibility and elongation.
- Resistant to aging, UV exposure, and a wide range of chemicals.
- Easy to install and maintain.
- Long-lasting and economical solution for water retention and seepage control.
Would you like assistance with choosing the right profile, installation tips, or other product details?
Advanced Leak-Proof Design
Our PVC water stopper incorporates a flexible yet durable structure, suited to withstand high water pressure in construction joints. Its exceptional elongation and tensile strength make it highly resilient, ensuring long-term leak resistance and enhanced structural integrity.
Ideal for Diverse Construction Projects
Specifically engineered for water retaining structures, the stopper's flat, ribbed, and bulb-based shapes accommodate a range of joint types. Whether you are a dealer, manufacturer, or fabricator, the varied sizes and styles support seamless integration into a wide spectrum of Indian construction projects.
FAQ's of pvc water stapper:
Q: How is the PVC water stopper installed in concrete structures?
A: The PVC water stopper is embedded directly into the concrete during the pouring process at the construction joint. This installation ensures a seamless barrier that effectively prevents water seepage through the joint.Q: What types of construction projects can use this water stopper?
A: This PVC water stopper is ideal for use in water retaining structures such as dams, water tanks, basements, and swimming pools, as well as any concrete joint requiring leak-proof sealing.Q: When should a water stopper be used in construction?
A: Water stoppers should be used whenever concrete joints are expected to be exposed to water pressure, particularly in structures where water resistance and leak proofing are critical.Q: Where can I purchase or source these PVC water stoppers in India?
A: You can obtain PVC water stoppers from accredited dealers, manufacturers, fabricators, wholesalers, suppliers, and traders across India, ensuring accessibility for projects nationwide.Q: What is the process of selecting the right shape and size of water stopper?
A: The selection depends on joint type, water pressure, and the specific needs of your project. Flat, center bulb, or ribbed options cater to different structural requirements, and sizes range from 15-20 meters in length and 150-300 mm in width.Q: What benefits do PVC water stoppers offer over other materials?
A: PVC water stoppers are durable, rigid, and highly resistant to water, chemicals, and environmental factors. Their flexibility allows elongation over 300%, ensuring strong performance even in demanding conditions.
