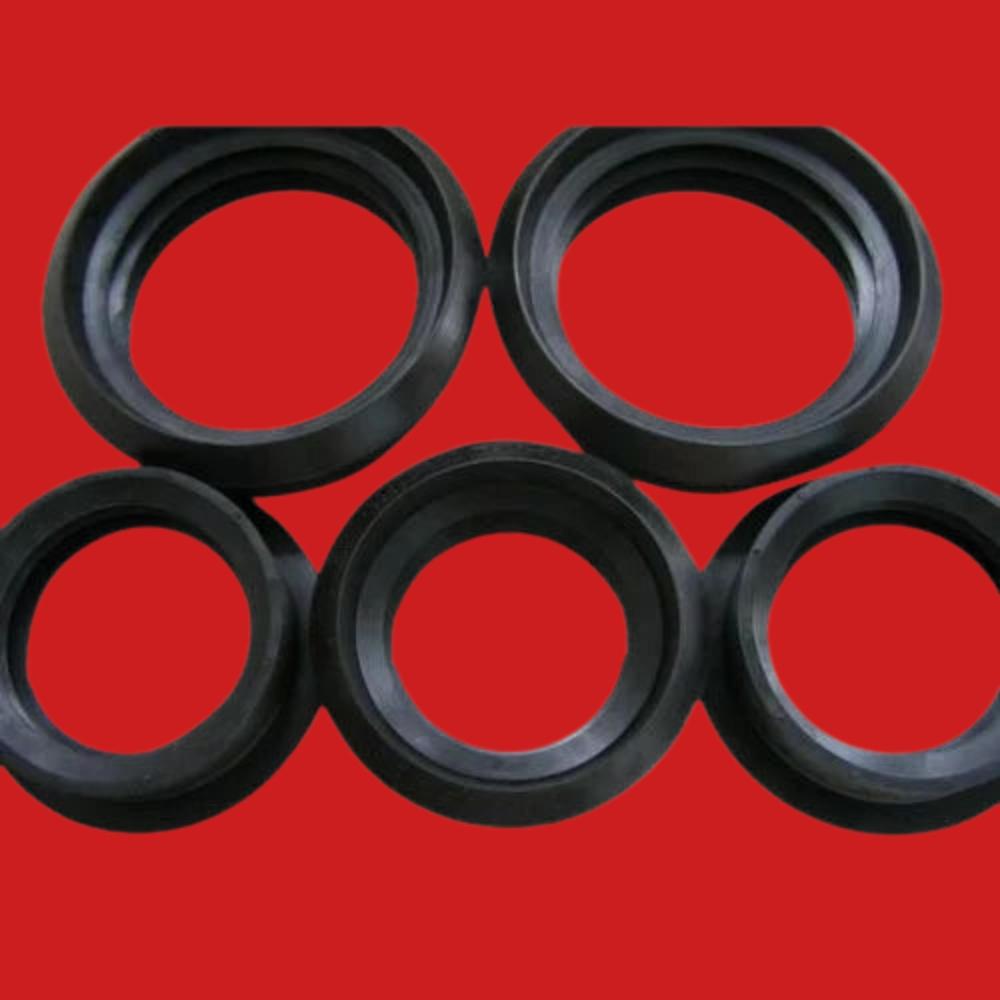

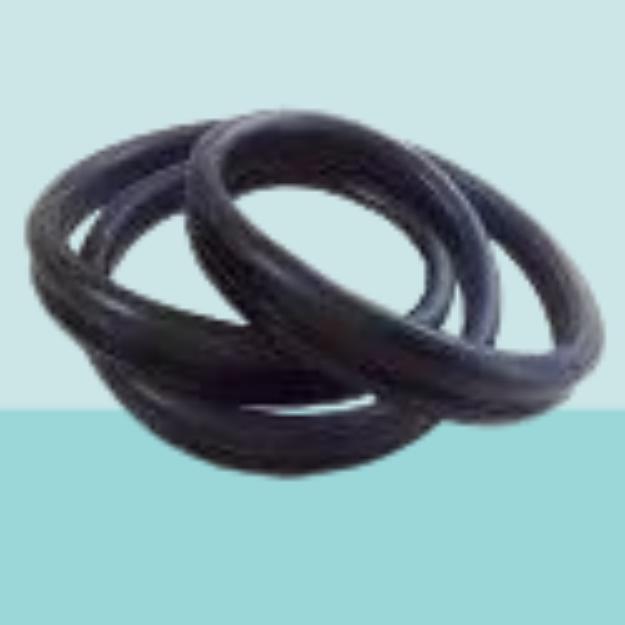

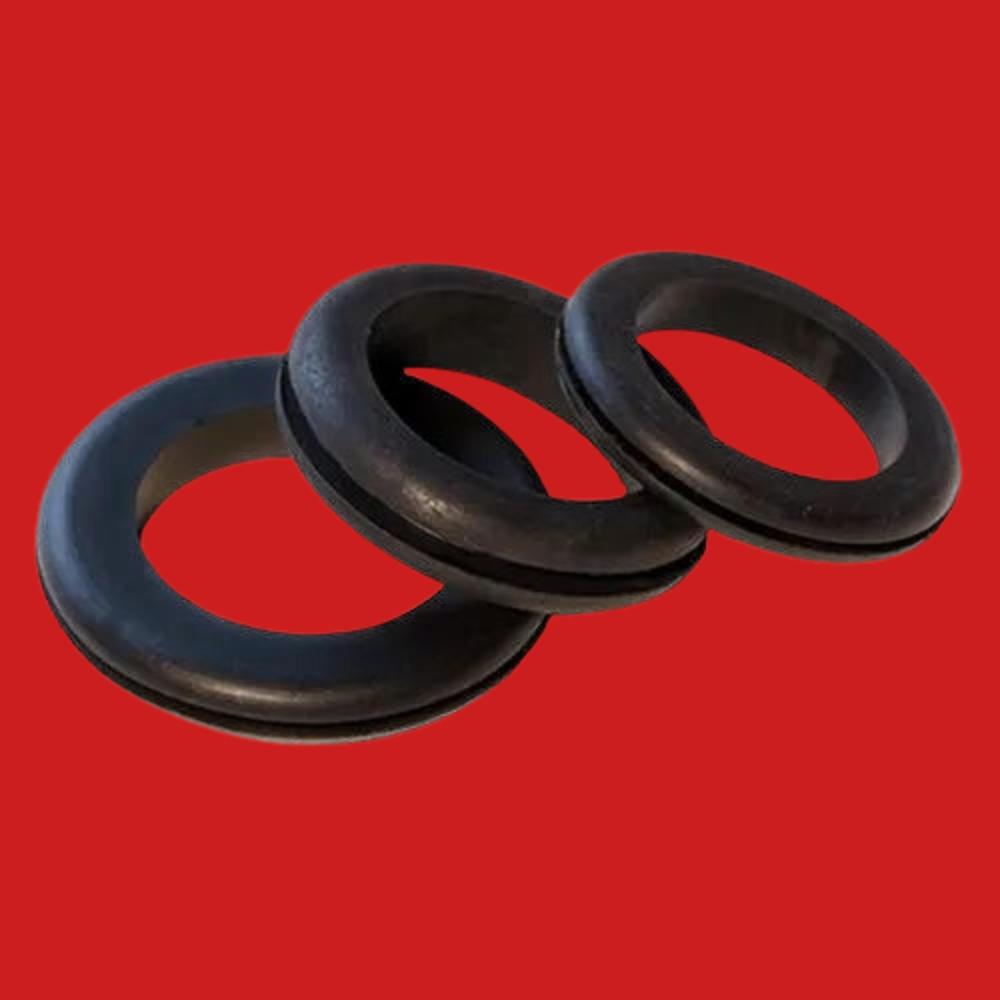

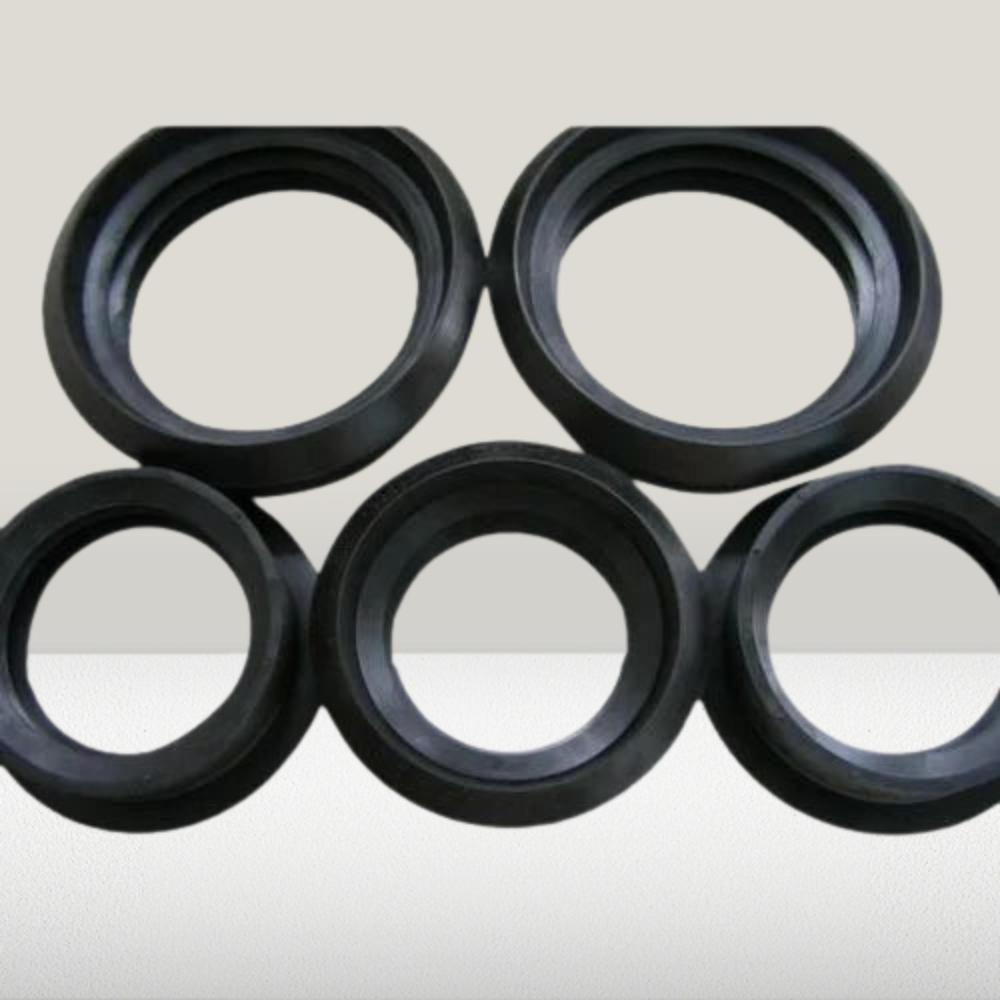

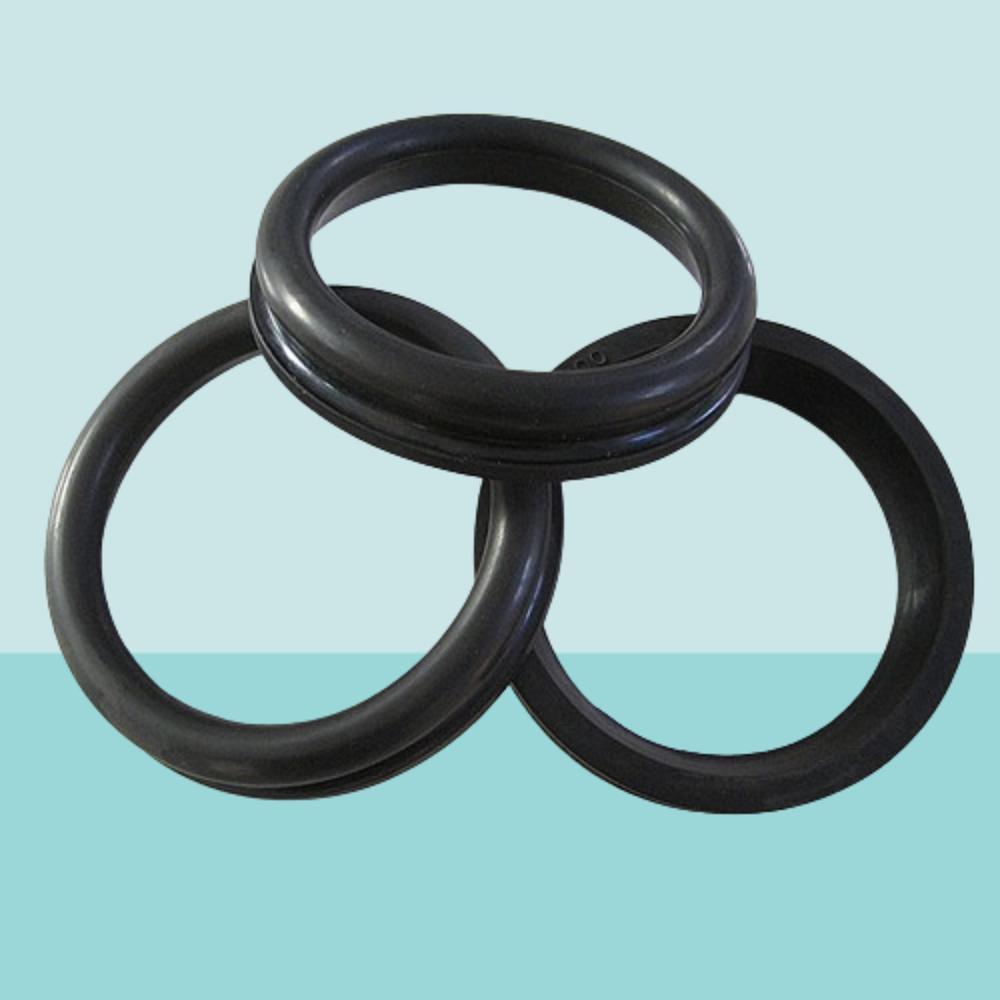

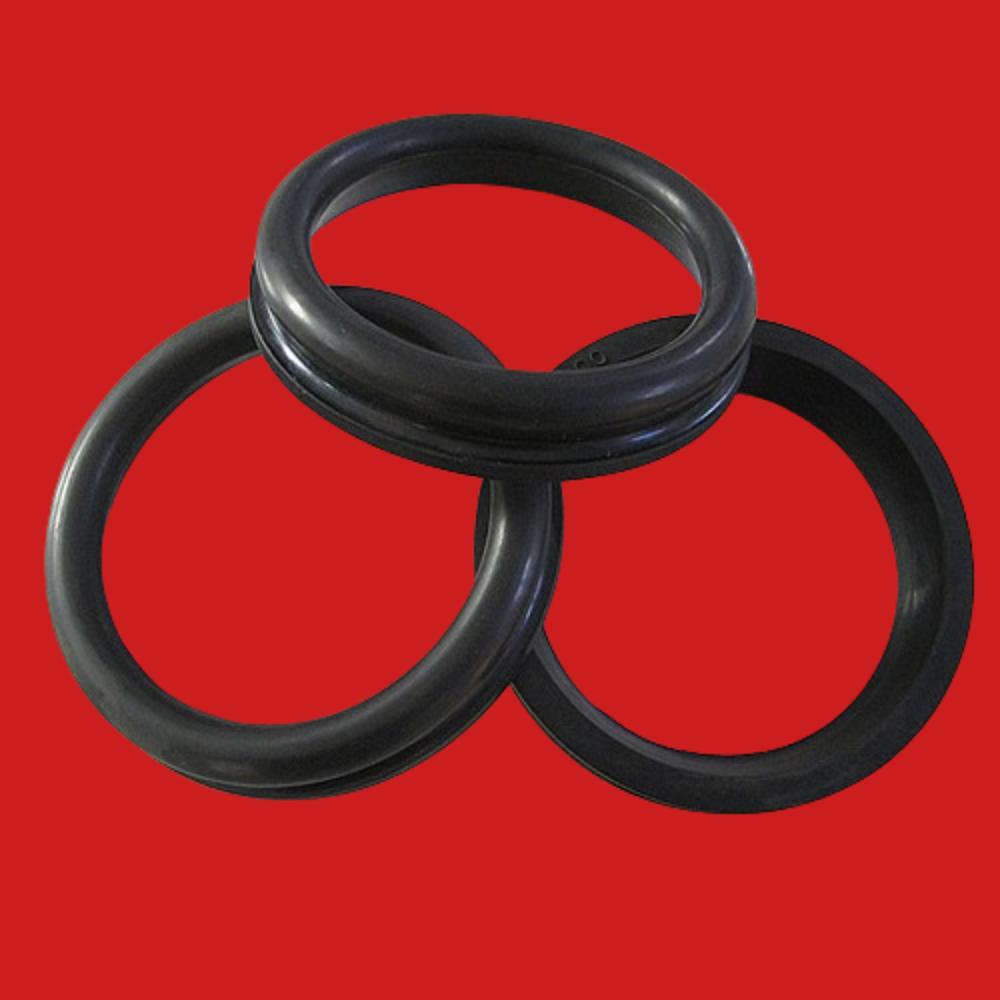

DI pipe Gasket

Name: DI pipe Gasket
Brand: SANDHYA ENTERPRISES
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DI pipe Gasket Specification

Weight
Depends on size (for DN 100 approx. 0.25 kg)

Components
Elastomeric gasket ring

Resistance level
Resistant to water, mild chemicals, and age

Style
Ring type gasket, plain and socket options

Flame Resistance Level
Non-flammable

Length
Circular/varies as per diameter

Tolerance
0.4mm

Tensile Strength
>10 MPa

Ash %
2%

Water Absorption
Negligible

Usage & Applications
Sealing joints between ductile iron pipes in water supply and sewage systems

Natural Rubber
Yes, may contain natural or synthetic rubber blend

Compression Ratio
20%30%

Temperature Resistance
-20C to 85C

Material
EPDM/Natural Rubber/SBR

Diameter
Matches pipe internal diameters DN 80DN 1200

Surface Finish
Smooth

Thermal Conductivity
Low

Rubber Type
EPDM, SBR or Natural Rubber

Product Type
DI pipe Gasket

Nitrogen Content (%)
0.35%

Width
Standard width varies based on size, generally between 20mm to 50mm

Part Type
Gasket

Density
1.40 Gram per cubic centimeter(g/cm3)

Feature
Leak-proof, flexible, highly durable

Thickness
6mm to 25mm (varies per size)

Hardness
70 5 Shore A

Volatile Matter (%)
1%

Size
Available for pipe sizes DN 80 to DN 1200

Color
Black

Shape
Ring/Donut

Pressure Rating
Suitable for PN 10, PN 16, PN 25 pipes

Shelf Life
>10 years

Elongation at Break
>350%

Manufacturing Process
Molded or extruded

Ozone Resistance
Excellent

Compatibility
Compatible with DI socket and spigot pipes

Chemical Resistance
Resistant to acids, alkalis, sewage

Storage Recommendations
Store dry, away from direct sunlight

Packaging Type
Bulk packaging in cartons or bags

UV Resistance
High

Conformance Standards
IS 15328, ISO 4633

DI pipe Gasket Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD)

Sample Available
No

Packaging Details
Thanks! Here's a general overview of the **packing details for DI (Ductile Iron) Pipe Gaskets**. These details can vary slightly depending on the manufacturer and the type of gasket (e.g., Tyton, Mechanical Joint, etc.), but here's a common format: --- ### **DI Pipe Gasket Packing Details** #### **Packing Type** - **Loose / Bulk Packing** (for large quantity supply) - **Boxed Packing** (for organized delivery, labeled by size) - **Palletized** (for export or bulk domestic supply) #### **Typical Size Range** - DN 80 mm to DN 1200 mm (or larger) - Usually classified per ISO 2531 / EN 545 / AWWA C111 standards #### **Materials** - EPDM (Ethylene Propylene Diene Monomer) - NBR (Nitrile Butadiene Rubber) - SBR (Styrene-Butadiene Rubber) #### **Quantity Per Packing Unit (Example Only)** | Gasket Size (DN) | Type | Gaskets/Carton | Cartons/Pallet | |------------------|----------|----------------|----------------| | DN 80 | Tyton | 100 pcs | 30 | | DN 150 | Tyton | 50 pcs | 30 | | DN 300 | Tyton | 25 pcs | 20 | | DN 600 | Tyton | 10 pcs | 15 | | DN 1000 | Tyton | 2 5 pcs | 10 | > *Note: Mechanical Joint gaskets are often heavier and may be packed in smaller quantities.* #### **Labeling** - Size (DN) - Gasket Type (Tyton, MJ, etc.) - Material (EPDM, NBR) - Batch number & manufacturing date - Manufacturer logo or stamp #### **Export Packing (Optional)** - Shrink-wrapped pallets - Fumigated wooden pallets/crates - Waterproof lining (for sea freight) --- If you have a specific size or type in mind, I can provide more precise packing specs. Want a downloadable spec sheet or packing list template for this?

Certifications
ISO 9001:2015

About DI pipe Gasket

Hai! Bisa dijelaskan sedikit lagi maksud dari "Di pipe Gasket"? Apakah kamu sedang cari informasi tentang:

Gasket untuk pipa (pipe gasket) seperti jenis-jenis gasket yang digunakan untuk menyambung pipa?
Ukuran dan spesifikasi gasket pipa seperti untuk DN (Diameter Nominal) tertentu?
Atau mungkin merk atau standar tertentu, misalnya ANSI, JIS, atau PN?

Kalau kamu bisa kasih sedikit konteks (misalnya dipakai untuk air, gas, tekanan tinggi, dll), aku bisa bantu lebih tepat.

Superior Resistance and Durability

With exceptional UV and ozone resistance, these ring-type gaskets withstand harsh outdoor environments and chemical exposure. Their robust formulation offers excellent flexibility, tensile strength exceeding 10 MPa, and elongation above 350%. Their adaptability ensures a secure fit and leak-proof performance across various ductile iron pipe systems in municipal and industrial applications.

Engineered for Reliable Sealing

The DI pipe gasket's molded or extruded manufacturing process results in a smooth surface finish and precise tolerances, ensuring effective sealing throughout a wide temperature range (from -20C to 85C). Its compression ratio of 20%-30% and hardness of 705 Shore A help maintain joint integrity, preventing leakage and accommodating pipeline movement or vibration.

Optimal Compatibility and Easy Storage

This gasket is compatible with DI socket and spigot pipes for sizes DN 80 to DN 1200. Its natural or synthetic rubber blend ensures long-term reliability. For best performance, store gaskets in dry areas, away from sunlight, in bulk packaging such as cartons or bags. These storage conditions preserve material properties for a shelf life exceeding ten years.

FAQ's of DI pipe Gasket:

Q: How does the DI pipe gasket provide leak-proof sealing for ductile iron pipes?

A: The DI pipe gasket is precision-molded or extruded from high-quality elastomeric material, fitting snugly into the socket and spigot joints of ductile iron pipes. Its high compression ratio (20%-30%) and flexible construction ensure a tight, reliable seal that prevents water or sewage leakage under varying pressures (PN 10, 16, or 25).

Q: What standards and certifications does this gasket conform to, and why are they important?

A: This gasket meets IS 15328 and ISO 4633 standards, ensuring it adheres to global benchmarks for mechanical properties, chemical resistance, and material performance. These certifications guarantee compatibility and safety in municipal water and sewage applications.

Q: Where can the DI pipe gasket be used effectively?

A: The gasket is suitable for sealing ductile iron pipes in water supply networks, sewage systems, and other civil or industrial pipeline applications. Its resistance to acids, alkalis, and sewage makes it ideal for areas requiring robust, long-term sealing solutions.

Q: What is the recommended process for installing a DI pipe gasket?

A: Installation involves placing the ring-type gasket into the socket groove of a ductile iron pipe, cleaning joint surfaces, and then connecting the spigot end. Proper alignment and lubrication, where specified, are essential for ensuring a leak-proof fit and accommodating pipeline movement.

Q: How should DI pipe gaskets be stored to maintain their quality?

A: Gaskets should be kept dry, away from direct sunlight, and stored in bulk packaging (cartons or bags) in cool, shaded areas. This prevents premature aging, preserves flexibility, and upholds the shelf life of over 10 years.

Q: What are the benefits of using EPDM or natural rubber for these gaskets?

A: EPDM and natural rubber offer high UV, ozone, and chemical resistance, maintaining gasket integrity in aggressive environments. They also provide superior elongation at break and tensile strength, ensuring flexibility and durability even after prolonged use.

Q: What pipe sizes and applications are supported by the DI pipe gasket?

A: These gaskets accommodate pipe sizes from DN 80 to DN 1200 and widths between 20mm and 50mm. They are available in different styles (plain or socket ring) and are specifically designed for use in water distribution and sewage pipeline systems.
