Bridge Expansion Joint

About Bridge Expansion Joint

A bridge expansion joint is a structural component used in bridge construction to accommodate the movement and deformation of the bridge caused by thermal expansion, contraction, and other factors. Bridges are subject to temperature variations, vehicle loads, and settlement, which can cause them to expand or contract. Expansion joints are designed to absorb these movements and prevent the bridge from cracking or failing.

Here are some key points about bridge expansion joints:

1. Purpose: The primary purpose of a bridge expansion joint is to allow for the controlled movement of the bridge deck in response to temperature changes and other external factors. Without expansion joints, the bridge structure would experience stress and potentially develop cracks or other forms of damage.

2. Location: Expansion joints are typically installed at specific intervals along the bridge deck, including both longitudinal and transverse joints. Longitudinal joints run parallel to the direction of the bridge, accommodating expansion and contraction along the length of the bridge. Transverse joints are installed perpendicular to the bridge's length, allowing for lateral movements.

3. Types of Expansion Joints: There are several types of expansion joints used in bridge construction, including:

- Modular Expansion Joints: These consist of multiple steel or elastomeric modules that can accommodate large movements. They provide a smooth riding surface and are commonly used in highway bridges.

- Finger Joints: Finger joints are comprised of steel plates with interlocking fingers that can slide over each other. They allow for both longitudinal and transverse movements and are often used in highway and railway bridges.

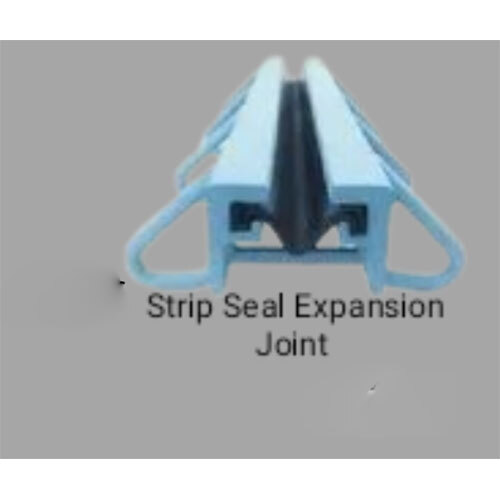

- Strip Seals: Strip seals consist of neoprene rubber seals encased in steel edge profiles. They provide flexibility and watertightness and are commonly used in road bridges.

- Elastomeric Joints: Elastomeric joints are made of a rubber-like material that can compress and expand. They are often used in smaller bridges or pedestrian walkways.

4. Design Considerations: When designing bridge expansion joints, factors such as temperature differentials, bridge type, traffic loadings, and expected movements need to be considered. The joints must be able to accommodate the expected movement while maintaining the structural integrity of the bridge.

5. Maintenance: Bridge expansion joints require regular inspection and maintenance to ensure their effectiveness. They can deteriorate over time due to environmental exposure, vehicle loads, and aging. Proper maintenance includes cleaning, lubrication, and replacement of damaged or worn-out components.

It's worth noting that bridge design and construction practices may vary based on location, bridge type, and local regulations. Consulting a qualified engineer or bridge expert is essential to ensure the appropriate selection, installation, and maintenance of bridge expansion joints in any specific project.

Exceptional Load Handling Capability

MS Steel construction provides outstanding strength and resilience, enabling the Bridge Expansion Joint to endure intense traffic loads and environmental conditions. The design allows seamless movement and prevents damage caused by natural expansions and contractions, safeguarding the integrity of bridges even under heavy usage.


Efficient Installation and Versatile Supply

The 40x82x10mm expansion joint is available through a network of reputable retailers, wholesalers, and suppliers across India. Its standardized size and design facilitate straightforward installation for bridge builders and contractors, enhancing construction efficiency and reducing project timelines.
