Strip Seal Expansion Joint 16mm

Price 3000 INR/ Meter

Get a Price/Quote

Strip Seal Expansion Joint 16mm Specification

Surface Treatment
Painted

Head Code
Square

Material
Iron

Usage
Bridge Construction

Technique
Forging

Size
as per drg

Connecting Type
Welding

Shape
Other

Product Type
Strip Seal Expansion Joint

Strip Seal Expansion Joint 16mm Trade Information

Minimum Order Quantity
100 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
2000 Per Month

Delivery Time
10 Days

Sample Available
Yes

Main Domestic Market
All India

About Strip Seal Expansion Joint 16mm

andhya Enterprises manufacture and Supplier 0f Strip Seal Expansion Joint as per RDSO

1 M Type

2. W Type

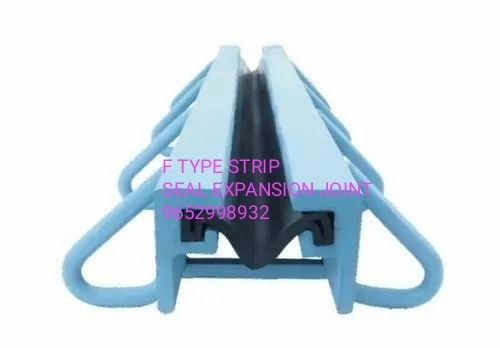

3. F Tyoe

4 T Type

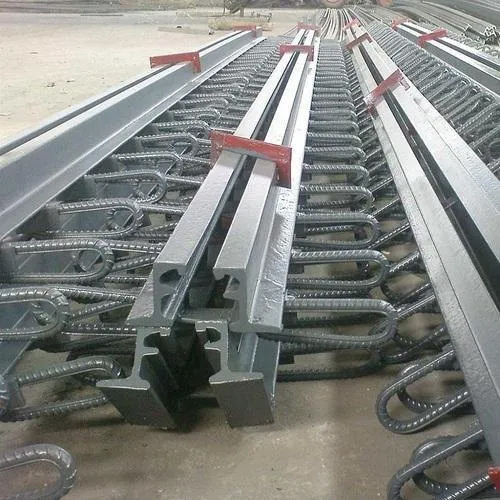

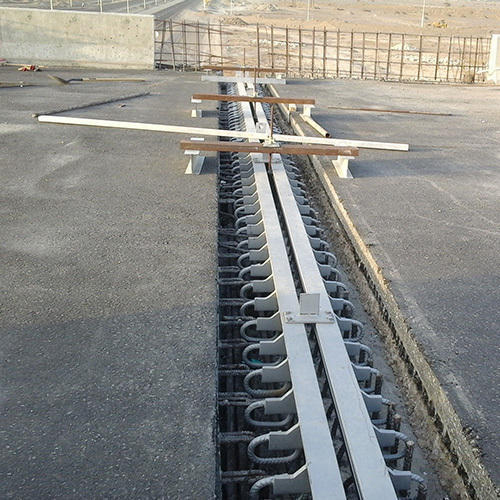

Bridge Expansion Joint Gap 40.0mm (Movement up to 80mm).Bridge Expansion Jointconsist of two edge beams with anchorages and with Neoprene sealing element held firmly in the housing of edge beams that guarantee the water tightness the joint. The maximum gap between the edge beams at the road surface when the joint fully opens due to maximum contractions of the deck shall be limited to 80mm for comfortable passage of traffic. The edge beams protects the adjacent bridge deck concrete from damage due to vehicular impact and also transfer the vehicular loads to the deck structures through robust anchorage system. Typical Bridge Expansion Joint is shown in the figure below.

Bridge Expansion Joint

Rs : / R.Mtr

GST:18% Extra

Packing and Forwording Extra

Technical Details

Robust Construction for Longevity

Our Strip Seal Expansion Joint is forged from high-quality iron, expertly fabricated to deliver exceptional durability. The painted surface treatment provides added protection against environmental stresses, making it ideal for demanding bridge applications.

Customizable and Versatile Solutions

Available in sizes tailored to customer drawings and with a square head code, this expansion joint accommodates various bridge designs. Its welding-type connection ensures secure integration within the bridge structure for optimal performance.

FAQ's of Strip Seal Expansion Joint 16mm:

Q: How is the Strip Seal Expansion Joint 16mm installed in bridge construction?

A: The Strip Seal Expansion Joint 16mm is typically installed by welding, ensuring a strong connection to the bridge structure and seamless integration. Professional fabricators or installers follow design drawings to align and secure the joint for maximum effectiveness.

Q: What advantages does a painted surface provide for this expansion joint?

A: The painted surface treatment enhances resistance to corrosion, moisture, and environmental wear, significantly extending the joint's service life and maintaining structural integrity in exposed bridge environments.

Q: When should a forged iron expansion joint be chosen for a project?

A: A forged iron expansion joint is preferred when strength, durability, and resistance to heavy loads are required, such as in bridge construction. Its robust nature is suited for projects demanding long-lasting performance under dynamic conditions.

Q: Where are these Strip Seal Expansion Joints available in India?

A: These expansion joints are distributed by a wide network of dealers, fabricators, retailers, suppliers, traders, and wholesalers throughout India, ensuring you can source quality products locally or regionally.

Q: What is the typical process for fabricating a Strip Seal Expansion Joint?

A: Fabrication involves forging iron to the required size and shape based on client drawings, followed by welding the connecting ends and applying a protective painted finish to meet performance and safety standards.

Q: How does the square head code design benefit bridge construction?

A: The square head code allows for secure fitting and precise alignment during installation, contributing to load distribution and minimizing movement-related stresses on the bridge deck.
